Page 1
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal in- jury or loss of life. — Do not store or use gasoline or other flam- mable vapors and liquids in the vicinity of this or any other appliance.

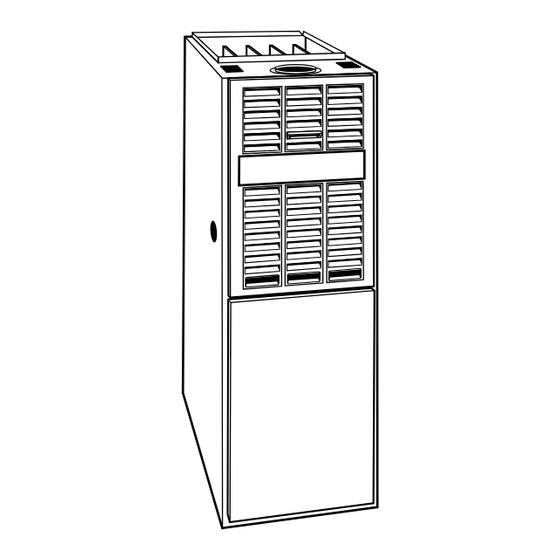

Not only is your new furnace energy efficient, it is also extremely reliable. Spend just a few minutes with this booklet to learn about the operation of your new furnace—and the small amount of maintenance it takes to keep it operating at peak efficiency.
Page 3
UPFLOW FURNACE COMPONENTS Relief Box Gas Valve Control Knob (On, Pilot, Off) Gas Valve Gas Burner Pilot Burner and Thermocouple Blower Door Safety Switch Blower and Blower Motor Draft Safeguard Tube and Switch Rating Plate (Behind Junction Box) Gas Manifold...
Keep the area around your furnace free of combustible materials, gasoline, and other flammable liquids and vapors. c Do not cover the furnace, store trash or debris near it, or in any way block the flow of fresh air to the unit.
Page 5
This will automatically signal the furnace to start. 14. Furnace main burners should light shortly after you set the thermostat. After you verify that the burners are lit, you may adjust the room thermostat to your own personal com- fort setting.
Some thermostats have a “fan” switch with 2 selections: AUTO or ON. When set on AUTO, the furnace blower cycles on and off, controlled by the thermostat. In the ON position, the furnace blower runs continuously except for a 45-sec delay at the “call for heat.’’...
24-1/2 (2) 16 x 25 x 1 * (1) 24 x 25 x 1 * Factory provided with the furnace. Filter may be field modified by cut- ting as required. Alternate sizes and additional filters may be ordered from your dealer.
Page 8
Reset the switch by pushing the button located on top of the switch (see page 3 for switch location). If the switch trips a second time, turn off the furnace and call for service. If your furnace still fails to operate, call your servicing dealer for troubleshooting and repairs.
