DESCRIPTION
The pH Basic works to correct the pH level of your pool by injecting corrective acid
solution in the circuit. The device monitors the pH continuously by means of its pH
sensor and sends a dosing signal to the pump which will, in turn, injects acid in the
pool when needed.
The device will control the speed of the pump depending on the measurement of
the probe and the setpoints programmed. To avoid excessive dosage related to
measuring delays, the pump will alternate start/pause periods in cycles of 100
seconds.

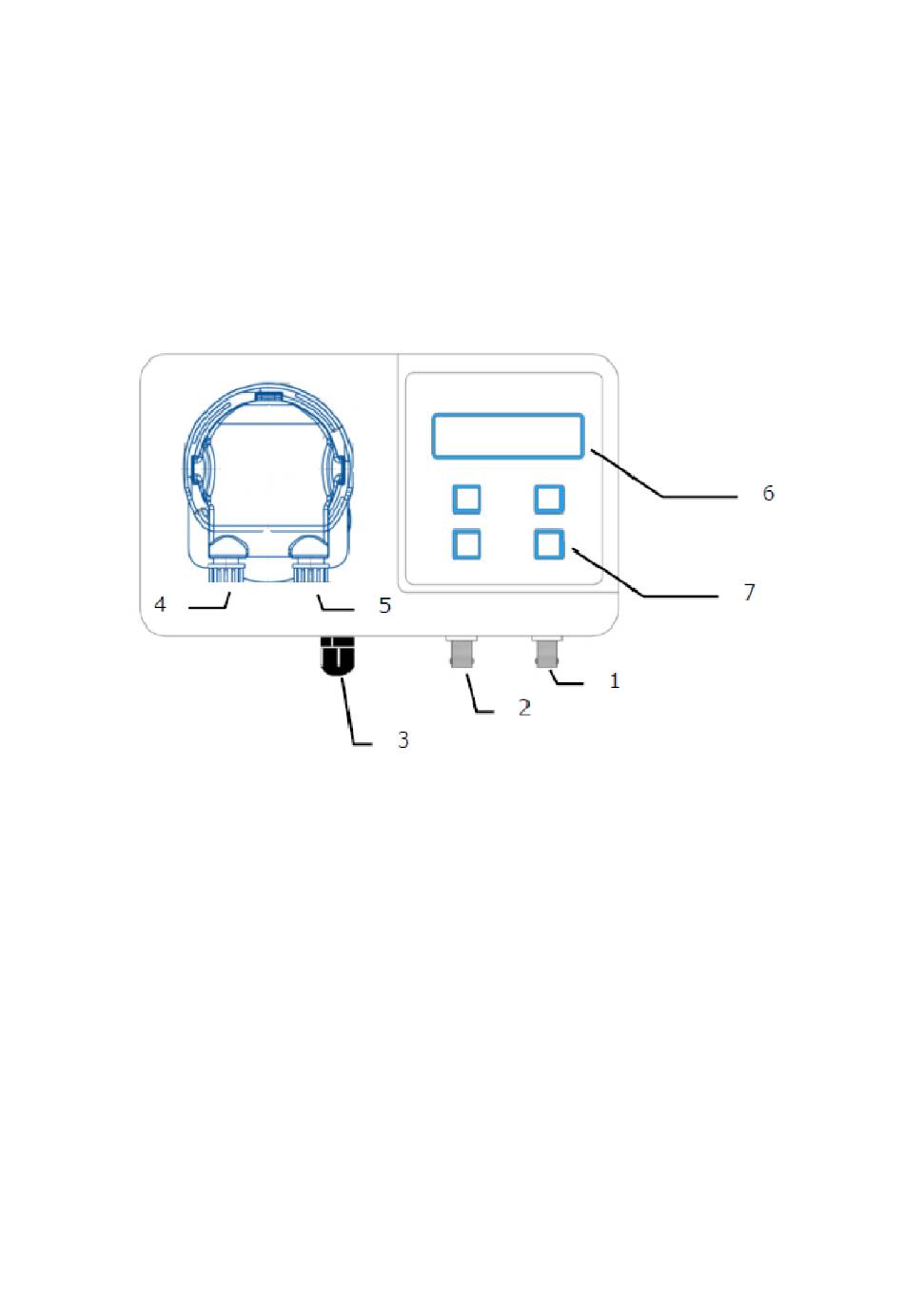

1. BNC socket for container level switch
2. BNC socket for pH probe
3. 230 Vac power supply
4. Connection for suction tube
5. Connection for injection tube
6. LCD Display
7. Buttons
