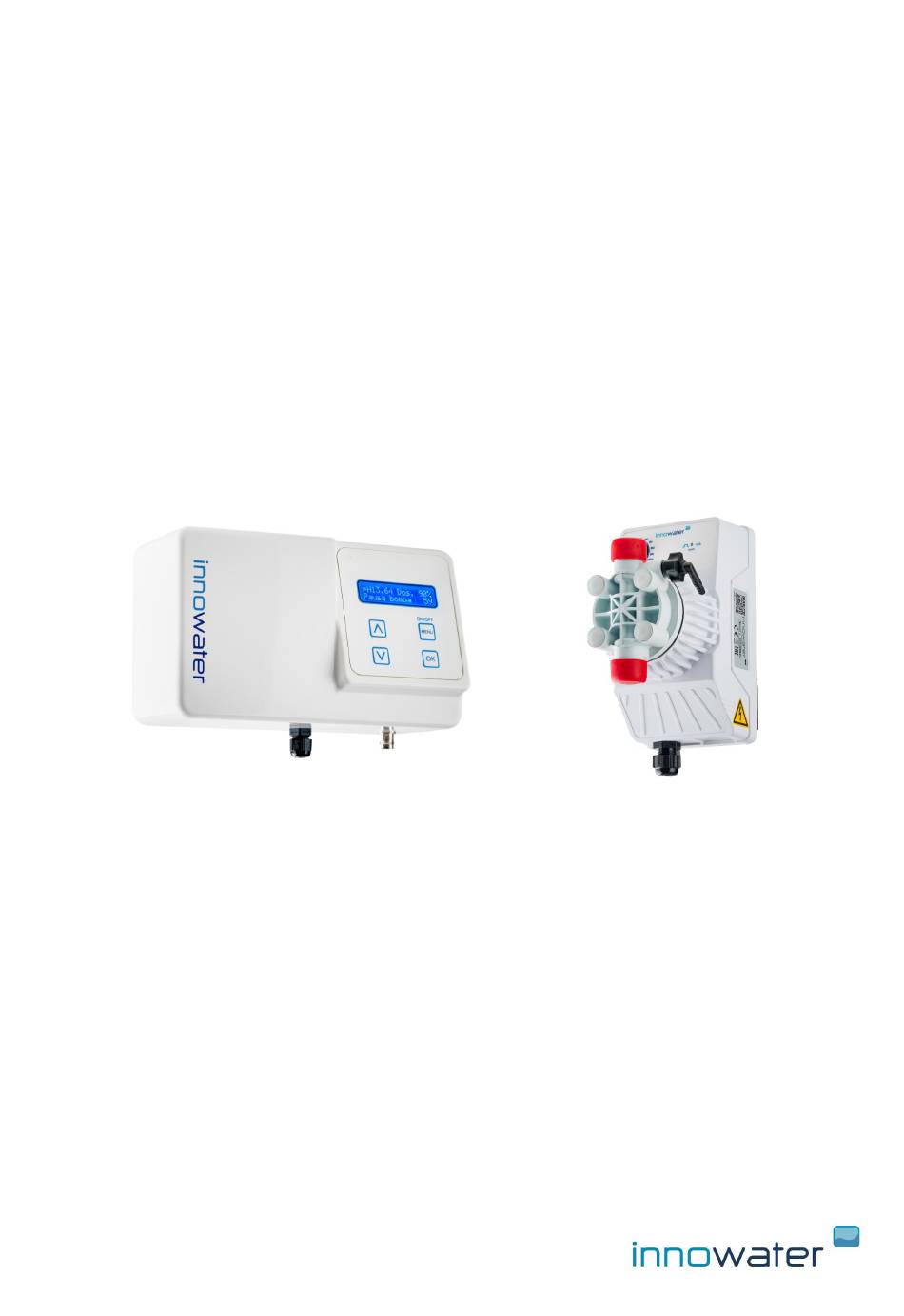

- Page 1 PUBLIC Operating Manual Ver. 5 /19...
- Page 2 • the injection tube must be connected on one side to the peristaltic pump (right side) and on the other side to the pool return pipe via the injection valve. Innowater Tratamientos Integrales del Agua S.L. will not be held liable for the use of this device with inappropriate products.
- Page 3 PAGE 1. Description ..............3 2. Installation ..............4 2.1. Mechanical and hydraulic installation ......4 2.2. Electrical installation ........... 4 3. Start up..............5 3.1. ON/OFF ..............5 3.2. Data reception ............5 3.3. Priming ..............5 3.4. Stroke speed regulation ..........6 4.

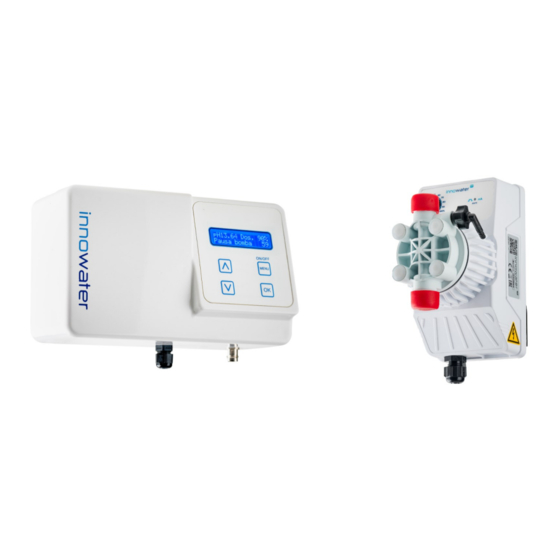

- Page 4 1. DESCRIPTION The pH Public works to correct the pH level of your pool by injecting corrective acid solution in the circuit. The device monitors the pH continuously by means of its pH sensor and sends a WIRELESS control signal to the pump which will, in turn, injects acid in the pool when needed.
-
Page 5: Installation
Try to choose a point in the circuit that never gets empty of water, because the probe deteriorates very quickly when dry. 2.2. Electrical installation Power supply Connect the 230 VAC power supply cable plug (3) into a mains power point provided with a protective earthing conductor (PE) pH Public... - Page 6 Once the pump is completely full of liquid close the venting connection, the pump will start dosing through injection tube. Press OK to stop the priming process, if don´t it will automatically return to main screen in 60 seconds. pH Public...
-
Page 7: User Interface
40%, the command (Pul.) will be ON the first 40 seconds and remain OFF the other 60 seconds. While dosage is 0%, it will not begin a new cycle. The course of this cycle is shown in the left side (T). pH Public... - Page 8 You can set both point and choose the percentage of dosage for each of them. To do this, press the cursor with the MENU key in the parameter you want to modify and act with the arrows to change the value. Press OK to save the data and exit the sub-menu. pH Public...
- Page 9 Insert the probe in the 4 pH buffer calibration, remove it slightly with the probe and wait for a stable reading value to be reached. Once the reading value has stabilized press OK key to save calibration and exit the pH Public...
- Page 10 ON or OFF. Then, press menu key to set the amount of time desired (up to 20 minutes). When enabled, if the device is dosing acid for the period of time set without reaching the setpoint, it will stop the dosage and show an alarm. pH Public...
-
Page 11: Choose Language
Press OK to enter. Scroll with arrow keys and choose the contrast level. Then press TECHNICAL DATA Power supply 100-240 VAC 50-60 Hz Consumption 12 W Pump Flow rate 5 l/h (8 Bar) Pump Maximum pressure 10 bar (3 l/h) pH Public...
