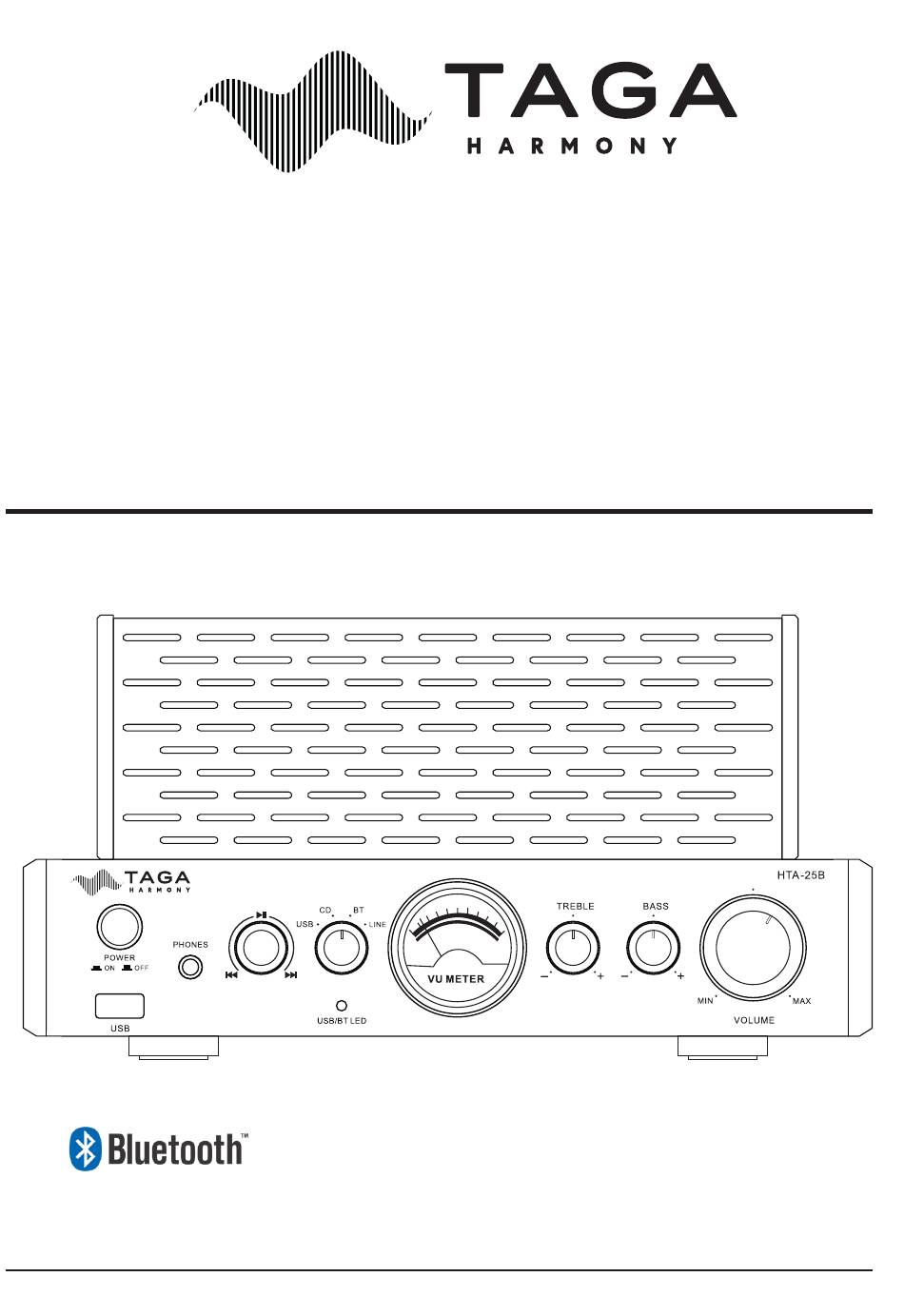

- Page 1 HTA-25B HYBRID INTEGRATED AMPLIFIER Instruction Manual Edition 10-2020...

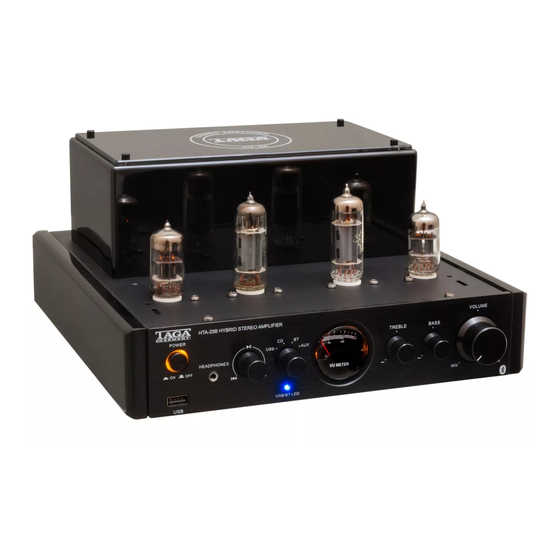

- Page 2 World of tubes and the World of transistors. TAGA Harmony HTA-25B is a 25W / 4Ω high-fidelity but still affordable hybrid integrated amplifier utilizing two 6P1 and two 6N1 tubes in the preamp section and transistors at the output.
-
Page 3: Table Of Contents
Contents Safety Instructions Front and Rear Panel Hooking Up Speaker Cables Hooking Up the Amplifier Operation Play from a USB Flash Drive Bluetooth Connection ® Additional Information Specifications... -
Page 4: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 5 Safety Instructions 1. Read Instructions - All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extension cords or should be read before the product is operated. integral convenience receptacles as this can result in a risk of fire 2.
-
Page 6: Front And Rear Panel
Front and Rear Panel Front Panel 1. Power Switch (ON and OFF) and Power Status Indicator (around the Power Switch) 2. USB Port 3. Headphone 3.5 mm (1/8") Output 4. USB and Bluetooth Knob (Play/Pause, Next/Previous) ® 5. Input Selector (USB, CD, Bluetooth, LINE) 6. -
Page 7: Hooking Up Speaker Cables
Hooking Up Speaker Cables The Speaker Connectors can accommodate up to 10AWG speaker cables as well as most of popular plugs (banana etc.). It is recommended to leave about 150 cm (5 feet) of extra cable at the amplifier end to facilitate positioning and installation of the amplifier. -
Page 8: Hooking Up The Amplifier
Hooking Up the Amplifier Right speaker Left speaker External power amplifier, powered speakers etc. Interconnect RCA Speaker cables Interconnect RCA Interconnect RCA CD player etc. FM/AM tuner, etc. Smartphone, tablet, etc. Headphones USB Flash Drive... - Page 9 Hooking Up the Amplifier 1. Make sure the amplifier is turned off (the Power Switch and the Power Cable is removed from the wall outlet). 2. Turn the Volume Regulator to MIN (max counter clockwise). 3. Using speaker cables (not supplied with this product) connect your speakers to the SPEAKERS OUT connectors located on the rear panel.
-
Page 10: Operation
Operation Plug the Power Cable to the amplifier and into the electrical outlet. Turn on the amplifier – press the Power Switch (the Power Switch The Power Status Indicator around the Power Switch should turn on in a few seconds. If it does not, it means that the amplifier is working under in abnormal condition (a protection mode) –... - Page 11 Operation Preamplifier Output connection (PRE-OUT): This amplifier is equipped with the preamplifier output, which allows connecting ampli- fication or recording equipment such as a power amplifier, powered speakers, active subwoofer or a CD recorder. The audio signal from the preamplifier of this device is directed to the PRE-OUT and its level is variable controlled by the Volume Regulator.
-
Page 12: Play From A Usb Flash Drive
Play from a USB Flash Drive This amplifier can play music from most USB Flash Drives and supports most MP3 / WMA / WAV / APE audio files. 1. Using the Input Selector knob select the USB input. If the USB Flash Drive is not inserted then the USB/Bluetooth Input Led Indicator will be flashing. -
Page 13: Bluetooth ® Connection
Bluetooth devices. ® • After a short time “HTA-25B” will appear on the screen of your audio source. • Select “Pair” on your audio source to connect with the amplifier. After connection is successful the Bluetooth Input Led Indicator will be illuminated ®... -
Page 14: Additional Information
Additional Information Break-In Your TAGA Harmony amplifier sounds great immediately after it is taken out of the carton but as all hybrid amplifiers, this amplifier requires a “break-in” period to reach its full sonic capabilities. During the “break-in” period it is recommended to operate the amplifier at moderate volume levels. - Page 15 (e.g. from a power outlet in another room). We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content: Amplifier...
-
Page 16: Specifications
For information on recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product. TAGA EUROPE POLPAK POLAND Sp. z o.o. AL.JEROZOLIMSKIE 331A 05-816 REGUŁY k/WARSZAWY, POLAND...
