Taga TA-25Mini Instruction Manual

Custom install mini stereo amplifier
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
TA-25Mini
CUSTOM INSTALL
AMP-1(TA-25Mini) front
MINI STEREO AMPLIFIER
Instruction Manual
30mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-25Mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Taga TA-25Mini

Summary of Contents for Taga TA-25Mini

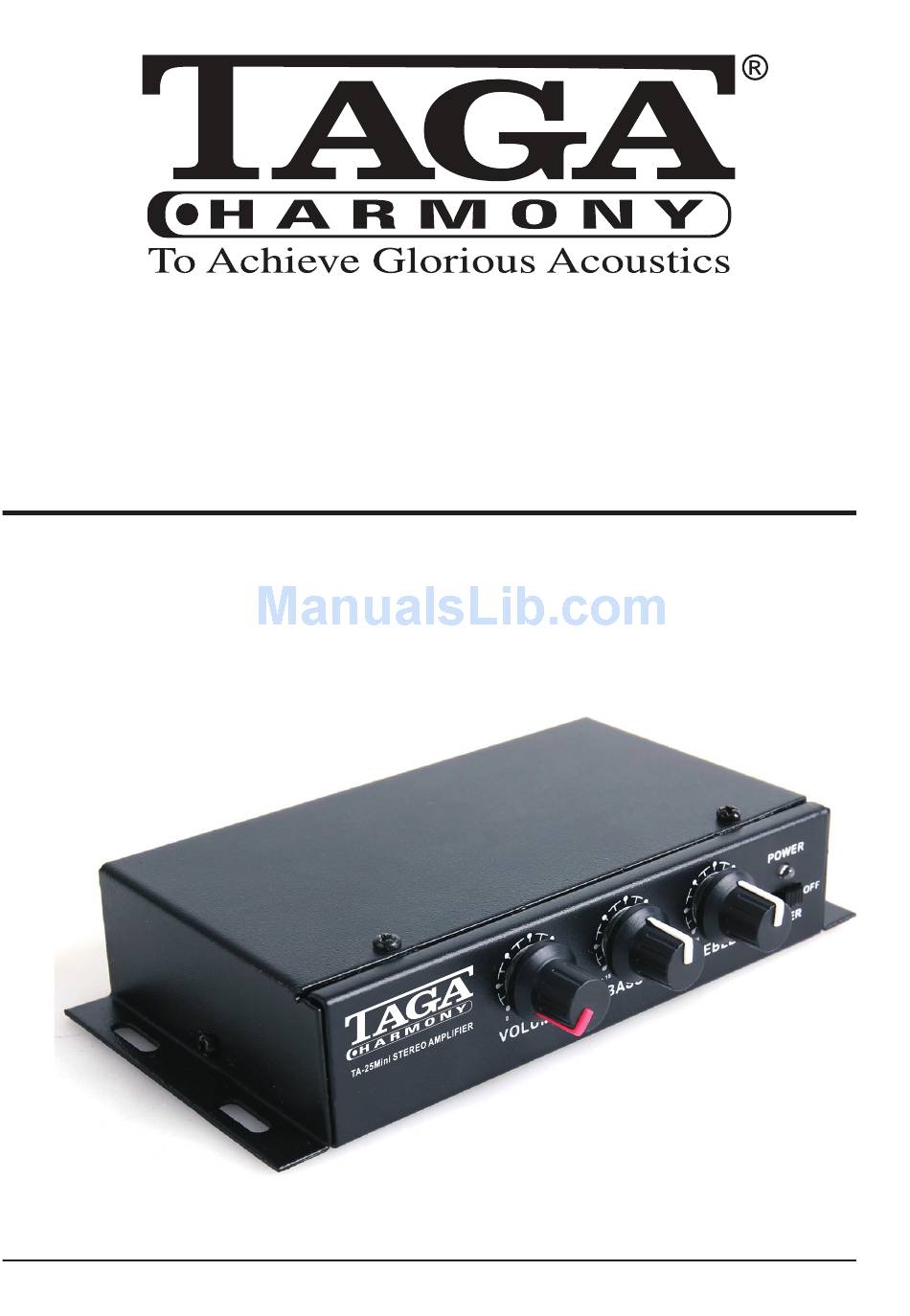

  • Page 1 TA-25Mini CUSTOM INSTALL AMP-1(TA-25Mini) front MINI STEREO AMPLIFIER Instruction Manual 30mm...
  • Page 2 Our amplifiers deliver pure and distortion-limited power as well as rich sound performance with stunning accuracy, soundstage and sensational dynamics. The TA-25Mini is an efficient, cost-effective choice for home systems and custom installations in restaurants, pubs, shops, conferencing rooms, fitness clubs for background music playback.

  • Page 3: Safety Instructions

    Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE CHASSIS (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that me be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 4: Important Safety Instructions

    Important Safety Instructions 1. Read Instructions – All the safety and operating instruc- 13. Overloading - Do not overload wall outlets, extensions tions should be read before the product is operated. cords, or integral convenience receptacles as this cas 2. Retain Instructions – The safety and operating instruc- result in a risk of fire or electric shock.

  • Page 5: Front And Rear Panel

    Front and Rear Panel P O W E R O F F L IMIT E R V O L U ME B A S S T R E B L E Volume Regulator Bass Regulator Treble Regulator Power Indicator Led Limiter Switch Balanced Stereo Audio Source Input (pin screw terminal connectors) Unbalanced Stereo Audio Input (3.5mm)

  • Page 6: Hooking Up The Amplifier

    Hooking up the Amplifier 3.5mm Stereo Input DC Adapter Balanced Unbalanced Left Right (8ohm speakers) audio sources audio sources Make sure the amplifier is switched off (DC Adapter plug removed from the electrical outlet). Turn the Volume Regulator to 0 (max counter clockwise). Using speaker cables (not supplied with this product) connect your speakers to OUTPUT amplifier terminals located on the rear of the amplifier.

  • Page 7: Operation

    Operation Plug the DC adapter cable into the electrical outlet – the Power Indicator Led should lit. Switch on your audio source and start playback on a connected audio source. Regulate volume on the amplifier to adjust the level of sound. Note! High volume levels can damage this amplifier or speakers.
  • Page 8 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony speaker cables and other installation accessories. Kit Content: Amplifier DC Adapter 2xRCA->3.5mm cable Instruction Manual Specifications...
