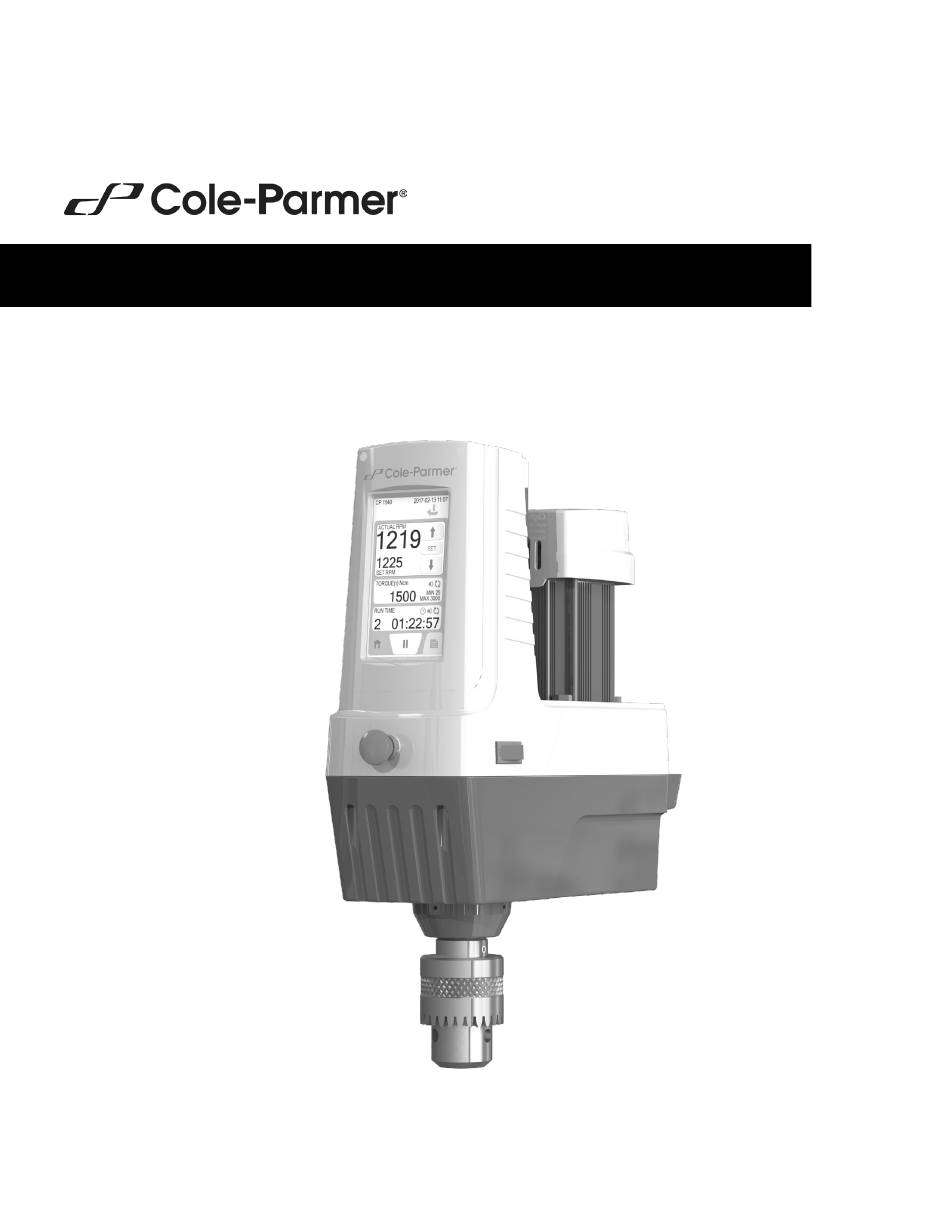

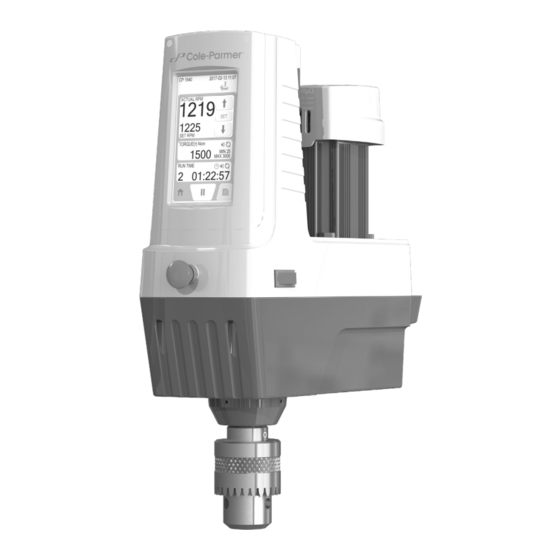

- Page 1 Digital Batch Mixer User Manual...
-
Page 3: Table Of Contents
Language Index English Contents Language Index Packing List Safety Instructions Introduction Safety Label Legend Safety Features Accessories Approvals Technical Data Environmental Operating Conditions Installation Instructions Features and Operation Basic Settings Feature Settings Data Logging Communications Software Updates Warnings and Notifications Cleaning and Service Packing List Compare the contents of the shipment to the items on the following list to ensure all parts are received. -
Page 4: Safety Instructions
Safety Instructions CAUTION / WARNING 1. All operators must be familiar with the mixer and read this entire manual. If the mixer is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. 2. -
Page 5: Introduction
Introduction This mixer is specifically designed for professional use in the laboratory and for use in industry to stir liquids with various properties and applications. The mixer rotates at 50-1500 rpm with a peak torque of 3000 Ncm. This mixer uses a high efficiency brushless DC motor which yields high torque over a very wide speed range. The speed is kept constant with continuous feedback to the motor. -
Page 6: Safety Features
Safety Features This mixer includes the following safety features. Please reference Features and Operation section and Warnings and Notifications section for further details. Quick Stop Press to immediately stop operation in the event of an unforeseen safety risk to the operator or environment. Remote Control Enabled Notification When remote control is enabled, notification appears on screen when attempting local operation. -
Page 7: Accessories
Impeller - Propeller 152 mm dia welded to 914 x 13 mm shaft - 316 SS polished Approvals Mixer Approvals Model Standards CAN / CSA 61010-1 & 1540CP 61010-2-51 3rd edition UL61010-1 3rd edition. Technical Data Rating 120 volts +/- 10 % at 60 Hz 6.25A... -
Page 8: Environmental Operating Conditions
Environmental Operating Conditions The mixer must operate in the following conditions: Indoors • Altitudes up to 2000 m (6500 ft.). • Temperatures from 41° F to 104° F (5° C to 40° C). • Maximum relative humidity 80% for temperatures up to 88° F (31° C) decreasing linearly to 50% relative humidity at 104°... - Page 9 Mounting Bolt Pattern 44.52 mm 87.56 mm 71.75 mm 44.92 mm (1.75 in) (3.45 in) (2.82 in) (1.77 in) 121.10 mm 87.56 mm (4.77 in) (3.45 in) 9.09 mm (0.36 in) 343.48 mm (13.52 in) Mounting Accessories (optional) • Mounting Plate - Stainless steel plate (100 x 260 mm) allows mixer to be securely mounted to an existing horizontal surface.
-
Page 10: Features And Operation
Power On 1. When the mixer is securely mounted, plug mains cord into appropriate power source. 2. Move power switch to the on position. CAUTION / WARNING • Ensure all rotating parts are guarded and protected from potential interference prior to engaging the power switch. •... - Page 11 Home Screen Upon start up and while in operation Mixer Name Date / Time of Day Dashboard SET SPEED Button TORQUE Button TIME Button MENU Button PLAY/PAUSE Button HOME Button Menu Screens Settings Menu and Torque Timer Menu MENU Tab ACCEPT Button HOME Button Dashboard Icons...
-
Page 12: Basic Settings
Basic Settings Name and Date/ Time of Day From the Settings Menu Screen: 1. Press the ROTATION DIRECTION button to toggle Customize the mixer name or date/time of day displayed. between clockwise and counterclockwise shaft rotation. 2. Chosen setting will be displayed on the ROTATION From the Settings Menu tab: DIRECTION button and on the dashboard. - Page 13 Timer - Set remaining set time on the display will flash 00:00:00. Set the total mixing time. 3. When set to off, the mixer will stop mixing at the completion of the set time. From the Torque / Timer Menu Screen: 4.
- Page 14 Torque Minimum/Maximum From the Torque / Timer Menu Screen: Set a minimum or maximum torque value. 1. Press TORQUE ALARMS button to toggle between alarm on and alarm off. From the Torque/Timer Menu Screen: 2. Audible Alarm icon, indicating on/off setting appears 1.
-
Page 15: Data Logging
Data Logging Date, time, speed and torque can be logged during operation to a memory stick. The data logging interval defaults to one second, and can be set from 1-999 seconds. Insert memory stick or computer USB cable to initiate data logging. USB icon is visible on the Dashboard. When using a memory stick, utilize the mixer keypad for operation. -
Page 16: Communications
Communications Connect to external control or data logging sources with the following ports. Only one port may be used at any given time. Terminal is intended to be connected to non-hazardous secondary 35 VDC max, separated from mains with double reinforced insulation. - Page 17 Communication Parameters Parameter Value Baud Rate 9600 Parity None Data bits Start bits Stop bits Break 500mS Flow Control None Command Syntax and Format MIXER NAME represents the unique name of the mixer COMMAND is any command from the Command Set table (as noted above) DATA is the associated parameter to accompany a command The following applies to the command set: •...
-
Page 18: Software Updates
Software Updates Register your product to receive access to software updates. The installed version of software is identified on the Settings Menu Screen. A memory stick ships with the mixer and includes the current software version and manual. Install updated software from a standard memory stick. 1. -
Page 19: Warnings And Notifications
Warnings and Notifications The following warnings and notifications exist for safety and communication purposes. Touch the screen to remove the warning or notification and return to the Home Screen. The associated dashboard icon will be visible until a correction is made. When correction is complete, the associated dashboard icon will disappear. Press play to continue operation. -
Page 20: Cleaning And Service
Notifications The following notification codes appear during operation. Operation continues without interruption. Touch the screen to remove the notification and return to the home screen. Notification Audible Alarm Dashboard Icon Condition Correction Use control equipment to adjust Appears when local REMOTE settings, or disengage control operation is attempted while... - Page 21 Service CAUTION / WARNING Do not attempt to service or repair the mixer. If the mixer housing is opened, the warranty becomes void. Contact Supplier for return authorization and return instructions. Clean the mixer so that it is free from any materials which may be harmful. Provide an SDS or other safety data sheets for all chemicals used in conjunction with this mixer where appropriate.
- Page 24 625 E. Bunker Ct. Vernon Hills, IL 60061 Toll Free: 1-800-323-4340 (USA) 1-847-549-7600 (Outside USA) ColeParmer.com...
