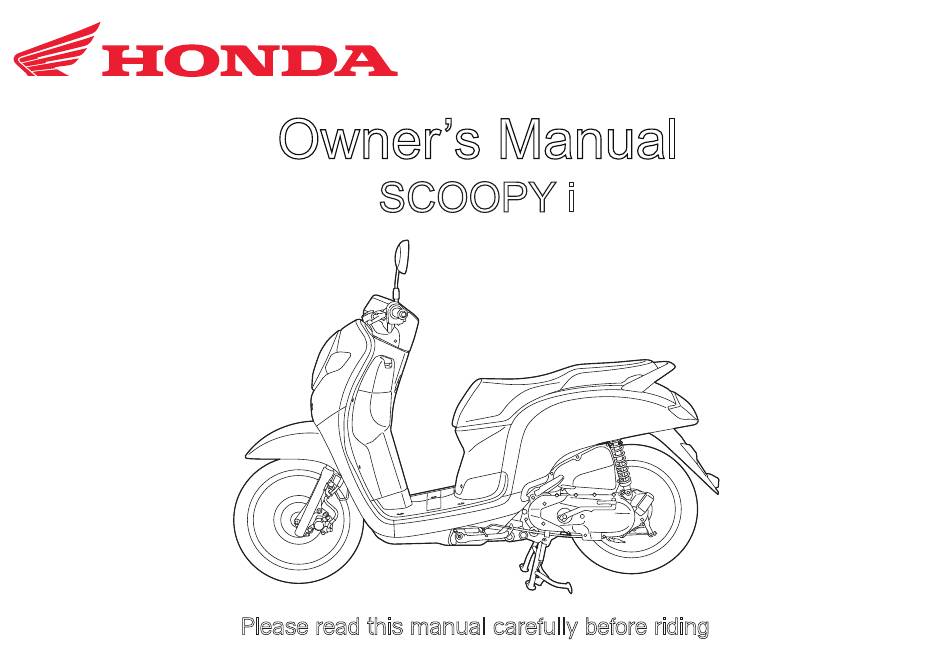

Owner's Manual
SCOOPY i
Please read this manual carefully before riding
ACF110CBT

Advertisement

Table of Contents
loading

Summary of Contents for Honda SCOOPY i 2020

  • Page 1 Owner’s Manual SCOOPY i Please read this manual carefully before riding ACF110CBT...
  • Page 2 How can you contact to CR Section? Customer can contact to CR by the following: : 010 922 922 E-mail : cr@ncxhonda.com.kh Working Hours : 08:00AM-05:00PM Working Days : Every Monday to Saturday (except National Holidays and cr@ncxhonda.com.kh Company Holiday) Honda Cambodia – NCX www.ncxhonda.com.kh...
  • Page 3 This publication includes the latest production information available before printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation. No part of this publication may be reproduced without written permission.
  • Page 4 Congratulations on your purchase of a new The following codes in this manual indicate ● Honda vehicle. Your selection of a Honda the country. makes you part of a worldwide family of The illustrations here in are based on the ●...
  • Page 5 A Few Words About Safety Your safety, and the safety of others, is very DANGER important. Operating this vehicle safely is an You WILL be KILLED or SERIOUSLY HURT important responsibility. if you don’t follow instructions. To help you make informed decisions about safety, we have provided operating WARNING procedures and other information on safety...
  • Page 6: Table Of Contents

    Contents Vehicle Safety P. 2 Operation Guide P. 12 Maintenance P. 45 Troubleshooting P. 83 Information P. 99 Specifications P. 110 Index P. 113...
  • Page 7: Vehicle Safety

    Vehicle Safety This section contains important information for safe riding of your vehicle. Please read this section carefully. Safety Guidelines .......... P. 3 Safety Precautions ........P. 6 Riding Precautions........P. 7 Accessories & Modifications...... P. 10 Loading ............P. 11...
  • Page 8: Safety Guidelines

    Safety Guidelines Safety Guidelines an approved helmet and protective apparel. Instruct your passenger on holding onto the Follow these guidelines to enhance your safety: grab rail or your waist, leaning with you in turns, Perform all routine and regular inspections and keeping their feet on the footpegs, even ●...
  • Page 9 Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning yourself so other drivers can see you, signaling Keep Your Honda in Safe Condition before turning or changing lanes, and using your It’s important to keep your vehicle properly horn when necessary.
  • Page 10 Safety Guidelines If you decide to continue riding, first turn the WARNING ignition switch to the (Off) position, and evaluate the condition of your vehicle. Inspect for Running the engine of your vehicle fluid leaks, check the tightness of critical nuts and while in an enclosed or even partially bolts, and check the handlebar, control levers, enclosed area can cause a rapid build-up...
  • Page 11: Safety Precautions

    Safety Precautions Safety Precautions Face shield with unobstructed field of vision or ● other approved eye protection Ride cautiously and keep your hands on the ● WARNING handlebar and feet on the floor. Keep passenger’s hands onto the grab rail or ●...
  • Page 12: Riding Precautions

    Riding Precautions Riding Precautions Avoid continuous braking. ● Repeated braking, such as when descending long, steep slopes can seriously Running-in Period overheat the brakes, reducing their During the first 500 km (300 miles) of running, effectiveness. follow these guidelines to ensure your vehicle’s For full braking effectiveness, operate both the ●...
  • Page 13 Riding Precautions Wet or Rainy Conditions To reduce the likelihood of theft, always lock ● Road surfaces are slippery when wet, and wet the handlebar and remove the key and close brakes further reduce braking efficiency. the shutter when leaving the vehicle Exercise extra caution when braking in wet unattended.
  • Page 14 Riding Precautions Refuelling and Fuel Guidelines Left handle grip Grab rail Follow these guidelines to protect the engine, fuel system and catalytic converter: Use only unleaded petrol. ● Use recommended octane number. Using ● Centre stand lower octane petrol will result in decreased engine performance.
  • Page 15: Accessories & Modifications

    Honda or make modifications to your vehicle from its original design. Doing so Follow all instructions in this owner’s can make it unsafe.
  • Page 16: Loading

    Loading Loading WARNING Carrying extra weight affects your vehicle’s ● Overloading or improper loading can handling, braking and stability. Always ride at a cause a crash and you can be seriously safe speed for the load you are carrying. hurt or killed. Avoid carrying an excessive load and keep ●...
  • Page 17: Operation Guide

    Basic Operation Flow Pre-ride Inspection (P50) Acceleration (P36) Carefully inspect your vehicle to make sure that it is safe to ride. Apply throttle gradually. Obey the speed limit. Starting the Engine (P29) Start and warm the engine. How to use basic features. Starting the Avoid revving the engine.
  • Page 18 Parking Braking (P8) (P36) Close the throttle and apply the Park on a firm level surface. Use front and rear brakes together. the stand, lock the steering, and The brakelight will indicate that close the shutter. you have applied the brakes. Stopping If pulling off the road, signal early enough to show traffic that you are...
  • Page 19 Parts Location Document bag (P42) Tool (P42) Helmet holder (P41) Throttle grip (P80) Front brake fluid reservoir (P73) Right inner rack (P44) Hook (P44) Spark plug (P66) Battery (P61) Fuse box (P97) Engine oil drain bolt (P70) Engine oil fill cap/dipstick (P69)
  • Page 20 Rear brake lock lever (P24) Rear brake lever (P75) Left inner rack (P44) Helmet holder (P41) Seat (P40) Fuel fill cap (P37) Centre compartment (P42) Crankcase breather (P81) Kickstarter (P32) Centre stand (P8) Side stand (P79) Accessory socket (P39)
  • Page 21 Instruments Speedometer Display Check When the ignition switch is turned to the (On) position, the speedometer needle swings to the maximum scale on the dial once, all the mode and digital segments will show. If any parts of these displays do not come on when it should, have your dealer check for problems.
  • Page 22 Fuel gauge Remaining fuel when only 1st (E) segment left: approximately 1.3 litres (0.34 US gal, 0.29 lmp gal). This segment flashes when the fuel decreases further. If the fuel gauge indicator flashes in a repeat pattern or turns off: (P86) Odometer Shows accumulated mileage.
  • Page 23 Indicators If one of these indicators does not come on when it should, have your dealer check for problems. High beam indicator Turn signal indicator ECO indicator When fuel consumption improves the ECO indicator will come on. If the fuel consumption continues to improve the ECO indicator will be brighter.
  • Page 25 Switches Horn button Idling Stop switch Switches the Idling Stop system on/ off. • IDLING STOP: The Idling Stop system is on. • IDLING: The Idling Stop system is off. Idling Stop system: (P26) Start button Headlight switch • : Headlight, taillight and Turn signal switch position light on.
  • Page 26 Ignition switch (On) Switches the electrical system on/off, Turns electrical system on for starting/riding. locks the steering, and operates the seat opener switch. SEAT Key can be removed when in the Operates the seat (Off) or (Lock) position. opener switch. (Off) Turns engine off.
  • Page 27 Switches (Continued) Steering Lock Locking Lock the steering when parking to help Turn the handlebar all the way to the left or prevent theft. right. A U-shaped wheel lock or similar device is also Push the key down, and turn the ignition recommended.
  • Page 28 Shutter Close The ignition switch for this vehicle is equipped Remove the ignition key from the ignition with a shutter. After parking the vehicle, close switch. the shutter for theft prevention. Align the projection of the shutter key with the slot of the shutter, and turn the shutter key counterclockwise.
  • Page 29 Rear Brake Lock Be sure the rear brake lock is applied while Rear brake starting and warming up the engine. lock lever Locking Squeeze the rear brake lever and set the rear brake lock lever. The rear brake lock will not function if the rear brake is not adjusted properly.
  • Page 30 Unlocking Squeeze the rear brake lever. Before riding, make sure that the rear brake lock is fully released so there is no drag on the rear wheel.
  • Page 31 Idling Stop System Idling Stop system is designed to help reduce Activation of the Idling Stop System the fuel consumption and noise, by idling stop The Idling Stop system becomes ready to stop while making a stop such as waiting at an the engine and Idling Stop indicator comes on intersection.
  • Page 32 Stopping the engine by the Idling Stop System Safety Precaution for the Idling Stop System The engine stops and Idling Stop indicator Do not go away from the vehicle while the changes to flash after you close the throttle Idling Stop indicator is flashing. When you go completely and stop the vehicle while the away from the vehicle, always turn the ignition Idling Stop indicator is on.
  • Page 33 Idling Stop System (Continued) Restarting the Engine NOTICE Check that the Idling Stop indicator is flashing, Headlight stays on after the engine is stopped by the and then open the throttle. Idling Stop system. The battery may discharge and you may not be able to restart engine.
  • Page 34 Starting the Engine Start your engine using the following Consult your dealer for advice if you plan to procedure, regardless of whether the engine ride your vehicle at an altitude above 2,500 m is cold or warm. (8,000 feet). NOTICE This vehicle is equipped with a side stand If the vehicle is transported to a place 2,000 m (6,500 feet) ignition cut-off system.
  • Page 35 Starting the Engine (Continued) Place the vehicle on its centre stand. Rear brake lock lever Lock the rear wheel by squeezing the rear brake lever and setting the rear brake lock lever. The starter motor will only work when the brake lever is squeezed and the side stand is up.
  • Page 36 To Start the Engine with Electric (On) Turn the ignition switch to the position. Starter With the throttle completely closed. Press the start button. Release the start button as soon as the engine starts. Start button continued...
  • Page 37 Starting the Engine (Continued) To Start the Engine with Kickstarter Lightly depress the kickstarter until resistance is felt. Then let the kickstarter return to the top of its stroke. With the throttle completely closed. Operate the kickstarter starting from the top of the stroke, kick through to the bottom with a rapid, continuous motion.
  • Page 38 If you cannot start the engine: Open the throttle slightly (About 3 mm, without freeplay). About 3 mm, without freeplay continued...
  • Page 39 Starting the Engine (Continued) If the engine does not start: Using the kickstarter Using the start button Turn the ignition switch to the (Off) position. Open the throttle fully and press the start button for 5 seconds. Open the throttle fully. Repeat the normal starting procedure.
  • Page 40 Riding Starting the Vehicle Release the rear brake lock. Push the vehicle forward off the centre stand. Lock the rear brake lock. Rear brake lock (P24) Keep throttle closed. Make sure the side stand and centre stand are Get on the vehicle. Mount the vehicle from the left side, keeping at least one foot on the ground.
  • Page 41 Riding (Continued) Braking Acceleration and deceleration. To accelerate: Open the throttle slowly. Close the throttle and apply the front and rear To decelerate: Close the throttle. brake levers together Do not apply the brake lock while riding. It may cause the wheel to lock, reducing control of the vehicle.
  • Page 42 Refuelling Fuel type: Unleaded petrol only Lower edge of Fuel octane number: Your vehicle is Fuel fill cap filler neck designed to use Research Octane Number (RON) 91 or higher. Tank capacity: 4.0 litres (1.06 US gal, 0.88 lmp gal) Arrow marks Refuelling and Fuel Guidelines (P9)
  • Page 43 Refuelling (Continued) Closing the Fuel Fill Cap Install and tighten the fuel fill cap firmly by turning it clockwise. Make sure that the arrow marks on the cap and fuel tank tray are aligned. Close the seat. WARNING Petrol is highly flammable and explosive. You can be burned or seriously injured when handling fuel.
  • Page 44 Use accessory devices at your own risk. To prevent entry of foreign matter into the In no event shall Honda be liable for any socket, be sure to close the cover when the damages to your accessory device when in socket is not used.
  • Page 45 Storage Equipment Seat Open Seat Turn the handlebar pointed straight ahead. Insert the ignition key and turn it to the position of SEAT. Push the SEAT side of the seat opener switch. Open the seat. Seat Close Close and push down on the rear of the seat until locks.
  • Page 46 Helmet Holder The helmet holders are located under the WARNING seat. Use the helmet holders only when parked. Riding with a helmet attached to the holder can interfere with your ability to Helmet safely operate the vehicle and could lead holders to a crash in which you can be seriously hurt or killed.
  • Page 47 Storage Equipment (Continued) Tool Document bag The tools are on the reverse side of the seat. Document Bag The document bag is in the document compartment on the reverse side of the seat. Document compartment Centre Compartment Tools Never exceed the maximum weight limit. Centre compartment Maximum Weight: 5 kg (11 lb) Do not store any items that are flammable or...
  • Page 48 A helmet can be stored in the centre compartment. Set in the front of the helmet forward. Some helmets may not fit in the compartment due to their size or design. Helmet Open the seat. (P40) continued...
  • Page 49 Storage Equipment (Continued) Inner Rack Hook The inner racks are provided below the The hook is provided below the handlebar. handlebar. Do not attach large luggage to the hook that would hang out from the vehicle and/or Open the left inner rack interfere with the movement of your feet.
  • Page 50: Maintenance

    Maintenance Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully before attempting any maintenance. Refer to “Specifications” for service data. Importance of Maintenance ...... P. 46 Engine Oil .............P. 69 Maintenance Schedule ....... P. 47 Brakes ............P. 73 Maintenance Fundamentals....... P. 50 Side Stand ............P.
  • Page 51: Importance Of Maintenance

    Importance of Maintenance Importance of Maintenance Maintenance Safety Keeping your vehicle well-maintained is Always read the maintenance instructions before absolutely essential to your safety and to protect you begin each task, and make sure that you your investment, obtain maximum performance, have the tools, parts, and skills required.
  • Page 52: Maintenance Schedule

    Maintenance work should be performed in new owner. accordance with Honda’s standards and specifications by properly trained and Honda recommends that your dealer should equipped technicians. Your dealer meets all of road test your vehicle after each periodic these requirements. Keep an accurate record maintenance is carried out.
  • Page 53 : Inspect (clean, adjust, lubricate, or replace if necessary) you have the necessary tools and are mechanically skilled. : Replace Procedures are provided in an official Honda Shop Manual. : Clean : Technical. In the interest of safety, have your vehicle serviced...
  • Page 54 Maintenance Schedule Frequency* Pre-ride Annual Regular Refer to Items Check × 1,000 km Check Replace page P. 50 × 1,000 mi Final Drive Oil* 2 Years – Battery – Brake Fluid* 2 Years Brake Shoes/Pads Wear 74, 78 Brake System Brake Lock Operation –...
  • Page 55: Maintenance Fundamentals

    Maintenance Fundamentals Brakes-Check operation; Pre-ride Inspection ● Front: check brake fluid level and pads To ensure safety, it is your responsibility to wear. P. 73, 74 perform a pre-ride inspection and make sure Rear: check shoes wear and freeplay, that any problem you find is corrected. A pre- adjust if necessary.
  • Page 56 Maintenance Fundamentals Replacing Parts WARNING Always use Honda Genuine Parts or their Installing non-Honda parts may make equivalents to ensure reliability and safety. your vehicle unsafe and cause a crash in which you can be seriously hurt or killed. Always use Honda Genuine Parts or equivalents that have been designed and approved for your vehicle.
  • Page 57 Maintenance Fundamentals What to do in an emergency Battery If any of the following occur, immediately see your doctor. Your vehicle has a maintenance-free type Electrolyte splashes into your eyes: ● battery. You do not have to check the battery Wash your eyes repeatedly with cool water for electrolyte level or add distilled water.
  • Page 58 NOTICE 3. If the terminals are heavily corroded, clean Installing non-Honda electrical accessories can overload and polish the terminals with a wire brush or the electrical system, discharging the battery and possibly sandpaper. Wear safety glasses.
  • Page 59 Blown fuse For recommended engine oil, see “Specifications.” P. 111 If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the NOTICE following standards: Replacing a fuse with one that has a higher rating greatly...
  • Page 60 The API classification specifies the quality and Recommended brake fluid: performance rating of engine oils. Use SG or Honda DOT 3 or DOT 4 Brake Fluid or higher oils, excluding oils marked as “Energy equivalent Conserving” or “Resource Conserving” on the circular API service symbol.
  • Page 61 Maintenance Fundamentals Inspecting for Abnormal Wear Tyres (Inspecting/Replacing) Inspect the tyres for Checking the Air Pressure signs of abnormal Visually inspect your tyres and use an air wear on the contact pressure gauge to measure the air pressure at surface. least once a month or any time you think the tyres look low.
  • Page 62 Maintenance Fundamentals Inspecting Tread Depth WARNING Inspect the tread wear indicators. If they become visible, replace the tyres immediately. Riding on tyres that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.
  • Page 63 Maintenance Fundamentals Have your tyres replaced by your dealer. WARNING For recommended tyres and air pressure, see “Specifications.” P. 111 Installing improper tyres on your vehicle Follow these guidelines whenever you replace can adversely affect handling and tyres. stability, and can cause a crash in which Use the recommended tyres or equivalents of ●...
  • Page 64 Maintenance Fundamentals Air Cleaner This vehicle is equipped with a viscous type air cleaner element. Air blow cleaning or any other cleaning can degrade the viscous element performance and cause the intake of dust. Do not perform the maintenance. Should be serviced by your dealer.
  • Page 65: Tool

    Tool The tools are on the reverse side of the seat. P. 42 You can perform some roadside repairs, minor adjustments and parts replacement with the provided tools. Standard/Phillips screwdriver ● Screwdriver handle ● Spark plug wrench ●...
  • Page 66: Removing & Installing Body Components

    Removing & Installing Body Components Battery Negative terminal Battery Screw Battery lid Connector Screws Positive terminal Battery cover Removal Make sure the ignition switch is in the (Off) position. 1. Remove the battery lid and the battery cover from the step floor by removing the screws.
  • Page 67 Removing & Installing Body Components Battery Installation 2. Remove the connector from the battery cover by pull it up. Install the parts in the reverse order of 3. Disconnect the negative terminal from removal. Always connect the positive the battery. terminal first.
  • Page 68: Clip

    Removing & Installing Body Components Clip Clip Removal 1. Press down on the centre pin to release the lock. 2. Pull the clip out of the hole. Centre Installation 1. Push the bottom of the centre pin. 2. Insert the clip into the hole. 3.
  • Page 69: Front Top Cover

    Removing & Installing Body Components Front Top Cover Front Top Cover Removal 1. Remove the clips. P. 63 2. Remove the screws A and the screws B. Connector A 3. Remove the front top cover by releasing the tabs and the harness clip then Connector B disconnect the connector A and the Screws A...
  • Page 70: Rear Centre Cover

    Removing & Installing Body Components Rear Centre Cover Rear Centre Cover Removal 1. Open the seat. P. 40 Screws 2. Remove the screws 3. Remove the rear centre cover by releasing Tabs Rear centre cover the tabs. Installation 1. Install the parts in the reverse order of removal.
  • Page 71: Spark Plug

    Spark Plug Checking Spark Plug Centre cover For the recommended spark plug, see “Specifications.” P.111 Use only the recommended type of spark plug Screws in the recommended heat range. NOTICE Using a spark plug with an improper heat range can cause engine damage.
  • Page 72 Spark Plug Checking Spark Plug 2. Disconnect the spark plug cap from the Clean a carbon or wet-fouled plug with spark plug. a plug cleaner, otherwise use a wire 3. Clean any dirt from around the spark plug brush. base. 6.
  • Page 73 Spark Plug Checking Spark Plug 8. Install the spark plug. With the plug 10. Install the parts in the reverse order of washer attached, thread the spark plug in removal. by hand to prevent cross-threading. When reinstalling the spark plug cap, 9.
  • Page 74: Engine Oil

    Engine Oil Checking the Engine Oil Oil fill cap/dipstick Check the engine oil with the Idling Stop Upper switch at IDLING. level 1. If the engine is cold, idle the engine for 3 to 5 minutes. 2. Turn the ignition switch to the (Off) Lower level position and wait for 2 to 3 minutes.
  • Page 75 Engine Oil Adding Engine Oil Adding Engine Oil NOTICE Overfilling with oil or operating with insufficient oil can If the engine oil is below or near the lower cause damage to your engine. Do not mix different brands level mark, add the recommended engine oil. and grades of oil.
  • Page 76 Engine Oil Changing Engine Oil, Cleaning Strainer Screen Change the engine oil with the Idling Stop 8. Check that the oil strainer screen and switch at IDLING. sealing rubber are in good condition. 9. Replace the O-ring and apply a thin coat 1.
  • Page 77 Engine Oil Changing Engine Oil, Cleaning Strainer Screen Engine Oil 12. Fill the crankcase with the recommended oil ( P. 54, 111) and install the oil fill cap/ Oil plug dipstick. Spring Required oil When changing oil & cleaning the strainer screen: 0.7 litres (0.7 US qt, 0.6 Imp qt) O-ring When changing oil only:...
  • Page 78: Brakes

    Brakes Checking the Front Brake Fluid Front brake fluid reservoir 1. Place your vehicle in an upright position on LWR level mark a firm, level surface. 2. Check that the brake fluid reservoir is horizontal and that the fluid level is above the LWR level mark.
  • Page 79 Brakes Inspecting the Front Brake Pads Inspecting the Front Brake Pads Inspect the brake pads from below the brake caliper. Check the condition of the brake pad wear If necessary have the pads replaced by your indicators. dealer. The pads need to be replaced if a brake pad is Always replace both left and right brake pads worn to the indicator.
  • Page 80 Brakes Inspecting the Rear Brake Lever Freeplay Inspecting the Rear Brake Lever Check the brake cable for kinks or signs of wear. If necessary have it replaced by your Freeplay dealer. Lubricate the brake cable with a 1. Place the vehicle on its centre stand. commercially available cable lubricant to 2.
  • Page 81 Brakes Adjusting the Rear Brake Lever Freeplay Adjusting the Rear Brake Lever 1. Adjust by turning the rear brake adjusting nut a half-turn at a time. Freeplay Brake arm pin Adjust the freeplay of the brake lever with the front wheel pointed straight ahead. Make sure the cut-out on the adjusting nut is seated on the brake arm pin when adjusting Increase...
  • Page 82 Brakes Adjusting the Rear Brake Lever Freeplay 3. Push the brake arm to confirm that there is a gap between the rear brake adjusting nut and brake arm pin. Brake arm Push Brake arm pin Adjusting nut After adjustment, confirm the freeplay of the brake lever.
  • Page 83 The rear brake is equipped with a brake wear the brake, the brake shoes must be replaced. indicator. See your dealer for this service. Brake panel When the brake service is necessary, see your dealer. Use only Honda Genuine Parts or its Arrow equivalent. Reference mark Brake arm...
  • Page 84: Side Stand

    Side Stand Checking the Side Stand 2. Check that the side stand operates smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate Side stand spring the pivot bolt with clean grease. 3. Check the spring for damage or loss of tension.
  • Page 85: Throttle

    Throttle Checking the Throttle With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the vehicle inspected by your dealer.
  • Page 86: Crankcase Breather

    Crankcase Breather Cleaning the Crankcase Breather 1. Place a suitable container to receive deposits. 2. Remove the crankcase breather tube plug Crankcase from the tube. breather 3. Drain deposits into a suitable container. tube plug 4. Reinstall the crankcase breather tube plug.
  • Page 87: Other Adjustments

    Other Adjustments Adjusting the Headlight Aim Headlight The adjustment can be done in the same way on the right or left side. You can adjust vertical aim of the headlight for proper alignment. Turn the pinion in or out as necessary using provide Phillips screwdriver.
  • Page 88: Troubleshooting

    Troubleshooting Engine Will Not Start ........P. 84 Tyre Puncture..........P. 90 Warning Indicators On or Flashing ...P. 85 Electrical Trouble ........P. 92 PGM-FI (Programmed Fuel Injection) Battery Goes Dead ..........P. 92 Malfunction Indicator Lamp (MIL) ....P. 85 Burned-out Light Bulb.........P. 92 Other Warning Indications......P.
  • Page 89: Engine Will Not Start

    Engine Will Not Start Starter Motor Operates But Starter Motor Does Not Engine Does Not Start Operate Check the following items: Check the following items: Check the correct engine starting sequence. Check the correct engine starting sequence. ● ● P. 29 P.
  • Page 90: Warning Indicators On Or Flashing

    Warning Indicators On or Flashing PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL) If the indicator comes on while riding, you may have a serious problem with the PGM-FI system. Reduce speed and have your vehicle inspected by your dealer as soon as possible.
  • Page 91: Other Warning Indications

    Other Warning Indications Fuel Gauge Failure Indication If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustration. If this occurs, see your dealer as soon as possible.
  • Page 92: When The Idling Stop System Does Not Operate Properly

    When the Idling Stop System Does Not Operate Properly Idling Stop Indicator Does Not If you did not ride the vehicle after engine starts: Come On Ride the vehicle at speeds of over 10 km/h (6 mph). The Idling Stop system does not When the Idling Stop indicator does not come operate until you ride once.
  • Page 93: Engine Is Not Stopped By The Idling Stop System While The Idling Stop Indicator Is On

    When the Idling Stop System Does Not Operate Properly Engine is Not Stopped by the Idling Stop System While the Idling Stop Indicator is On Engine is Not Stopped by the Idling Stop System While the Idling Stop Indicator is On When the engine is not stopped by the Idling Stop system while the Idling Stop indicator is on, perform the followings.
  • Page 94: Engine Does Not Start Even If The Throttle Is Opened

    When the Idling Stop System Does Not Operate Properly Engine Does Not Start Even If the Throttle is Opened Engine Does Not Start Even If cancelled. Restart the engine with start button, referring to the starting procedure ( P. 29) the Throttle is Opened for standard engine starting.
  • Page 95: Tyre Puncture

    Tyre Puncture Repairing a puncture or removing a wheel WARNING requires special tools and technical expertise. We recommend you have this type of service Riding your vehicle with a temporary performed by your dealer. tyre can be risky. If the temporary repair After an emergency repair, always have the fails, you can crash and be seriously tyre inspected/replaced by your dealer.
  • Page 96 Tyre Puncture Tube Repair and Replacement Tube Repair and Replacement WARNING IV CA, V CA type Riding your vehicle with a temporary If a tube is punctured or damaged, you should tyre or tube repair can be risky. If the replace it as soon as possible.
  • Page 97: Electrical Trouble

    Electrical Trouble Battery Goes Dead Burned-out Light Bulb Charge the battery using a motorcycle battery Follow the procedure below to replace a charger. burned-out light bulb. Remove the battery from the vehicle before Turn the ignition switch to the (Off) charging.
  • Page 98 Electrical Trouble Burned-out Light Bulb Headlight Position Light Position lights Headlight The headlight uses several LEDs. The position light uses several LEDs. If there is an LED which is not turned on, see If there is an LED which is not turned on, see your dealer for servicing.
  • Page 99 Electrical Trouble Burned-out Light Bulb Brakelight/Taillight Bulb 3. Turn the socket counterclockwise and pull it out. 4. Remove the bulb by slightly press the bulb Socket and turn it counterclockwise. 5. Install a new bulb and parts in the reverse Bulb order of removal.
  • Page 100 Electrical Trouble Burned-out Light Bulb Front Turn Signal Bulb 1. Remove the front top cover. P. 64 2. Turn the socket counterclockwise and pull it out. “ ” marks 3. Pull out the bulb without turning it. Bulb 4. Install a new bulb and parts in the reverse order of removal.
  • Page 101 Electrical Trouble Burned-out Light Bulb Rear Turn Signal Bulb 1. Open the seat. P. 40 2. Remove the rear centre cover. P. 65 3. Turn the socket counterclockwise and pull it out. Socket 4. Pull out the bulb without turning it. Bulb 5.
  • Page 102: Blown Fuse

    Electrical Trouble Blown Fuse Blown Fuse 1. Remove the battery lid and the battery cover from the step floor. P. 61 Before handling fuses, see “Inspecting and 2. Pull out the fuses one by one to check for a Replacing Fuses.” P.
  • Page 103: Unstable Engine Operation Occurs Intermittently

    Unstable Engine Operation Occurs Intermittently If the fuel pump filter is clogged, unstable engine operation will occur intermittently while riding. Even if this symptom occurs, you can continue to ride your vehicle. If unstable engine operation occurs even if sufficient fuel is available, have your vehicle inspected by your dealer as soon as possible.
  • Page 104: Information

    Information Keys.............P. 100 Instruments, Controls, & Other Features ...P. 100 Caring for Your Vehicle......P. 101 Storing Your Vehicle .........P. 104 Transporting Your Vehicle......P. 105 You & the Environment ......P. 106 Serial Numbers ..........P. 107 Fuels Containing Alcohol......P. 108 Catalytic Converter........P. 109...
  • Page 105: Keys

    Keys Keys Instruments, Controls, & Other Features Ignition Key Ignition Switch Be sure to record the key number provided with the key number plate and record it in this (On) Leaving the ignition switch in the position manual. Store the spare key in a safe location. with the engine stopped will drain the battery.
  • Page 106: Caring For Your Vehicle

    Frequent cleaning and polishing is important to Make sure that no lubricant spills onto the ensure the life of your Honda. A clean vehicle brakes or tyres. Brake discs, pads, drum or makes it easier to spot potential problems.
  • Page 107 Caring for Your Vehicle Washing Precautions Do not direct water at the air cleaner: ● Follow these guidelines when washing: Water in the air cleaner can prevent the Do not use high-pressure washers: engine from starting. ● High-pressure water cleaners can damage Do not direct water near the headlight: ●...
  • Page 108 Caring for Your Vehicle Aluminium Components Exhaust Pipe and Muffler Aluminium will corrode from contact with dirt, When the exhaust pipe and muffler are painted, do not use a commercially available abrasive mud, or road salt. Clean aluminium parts kitchen cleaning compound. Use a neutral regularly and follow these guidelines to avoid detergent to clean the painted surface on the scratches:...
  • Page 109: Storing Your Vehicle

    Storing Your Vehicle Storing Your Vehicle After removing your vehicle from storage, inspect all maintenance items required by the If you store your vehicle outdoors, you should Maintenance Schedule. consider using a full-body cover. If you won’t be riding for an extended period, follow these guidelines: Wash your vehicle and wax all painted ●...
  • Page 110: Transporting Your Vehicle

    Transporting Your Vehicle Transporting Your Vehicle If your vehicle needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your vehicle with a wheel or wheels on the ground.
  • Page 111: You & The Environment

    You & the Environment You & the Environment Recycle Wastes Put oil and other toxic wastes in approved Owning and riding a vehicle can be enjoyable, containers and take them to a recycling centre. but you must do your part to protect the Call your local or state office of public works or environment.
  • Page 112: Serial Numbers

    Serial Numbers Serial Numbers The frame and engine serial numbers uniquely identify your vehicle and are required in order to register your vehicle. They may also be required when ordering replacement parts. You should record these numbers and keep them in a safe place. Frame number Engine number...
  • Page 113: Fuels Containing Alcohol

    Fuels Containing Alcohol Fuels Containing Alcohol NOTICE Use of blended fuels containing higher than approved Some conventional fuels blended with alcohol percentages can damage metal, rubber, plastic parts of are available in some locales to help reduce your fuel system. emissions to meet clean air standards.
  • Page 114: Catalytic Converter

    (CO), and oxides of nitrogen (NOx) in the running properly, stop riding and turn off the exhaust gasses into safe compounds. engine. A defective catalytic converter contributes to air pollution and can impair your engine’s performance. A replacement unit must be an original Honda part or equivalent.
  • Page 115: Specifications

    Specifications Specifications Main Components ■ Displacement 108.20 cm (6.600 cu-in) III CA 1,847 mm (72.7 in) Bore × stroke 50.000 × 55.106 mm (1.9685 × 2.1695 in) Overall length IV CA, V CA 1,856 mm (73.1 in) Compression ratio 9.5:1 Overall width 686 mm (27.0 in) Unleaded petrol...
  • Page 116 Specifications Service Data ■ Front [Driver only] III CA 200 kPa (2.00 kgf/cm , 29 psi) Front 100/90-12 59J [Driver and passenger] Rear 110/90-12 64J 200 kPa (2.00 kgf/cm , 29 psi) Tyre size Tyre air pressure IV CA, V CA [Driver only] Front 80/90-14M/C 40P...
  • Page 117 0.14 litres (0.15 US qt, After disassembly 0.12 lmp qt) Torque Specifications ■ Recommended Honda DOT 3 or DOT 4 Brake Fluid Engine oil drain bolt 24 N·m (2.4 kgf·m, 18 lbf·ft) brake fluid Oil plug 20 N·m (2.0 kgf·m, 15 lbf·ft)
  • Page 118: Index

    Index Index Accessories .............10 Caring for Your Vehicle ........101 Accessory Socket ..........39 Catalytic Converter ..........109 Compartment Document Bag ........... 42 Basic Operation Flow ...........12 Owner’s Manual ........42, 100 Battery ...............52, 61 Tool ..............42, 60 Brakes Crankcase Breather ..........81 Brake Lever Freeplay .........75 Fluid ..............55, 73 Pad Wear ..............74...
  • Page 119 Fuel Ignition Cut-off System Gauge ..............17 Side Stand ............. 29, 79 Recommended ...........37 Ignition Key ............100 Remaining ............17 Ignition Switch ..........21, 100 Tank Capacity ............37 Indicators ..............18 Fuels Containing Alcohol ........ 108 Inner Rack ............... 44 Fuses ..............54, 97 Instruments ............
  • Page 120 Odometer ..............17 Safety Precautions ..........6 Seat ................40 Engine ............54, 69 Serial Numbers ............107 Shutter ..............23 Side Stand ............... 79 Parking ............... 8 Side Stand Ignition Cut-off System ..29, 79 Parts Location ............14 Specifications ............110 Petrol ............9, 37, 110 Speedometer ............
  • Page 121 Throttle ..............80 Tool ..............42, 60 Transporting Your Vehicle ......105 Troubleshooting ...........83 Turn Signal Indicator ...........18 Turn Signal Switch ..........20 Tyres Air Pressure ..........56, 111 Puncture ...............90 Replacing ............56, 90 Warning Indicator On or Flashing ....85 Washing Your Vehicle ........101 Weight Limit ............11...
  • Page 122 Honda Cambodia – NCX www.ncxhonda.com.kh 4PK93D10 00X4P-K93-D100...
