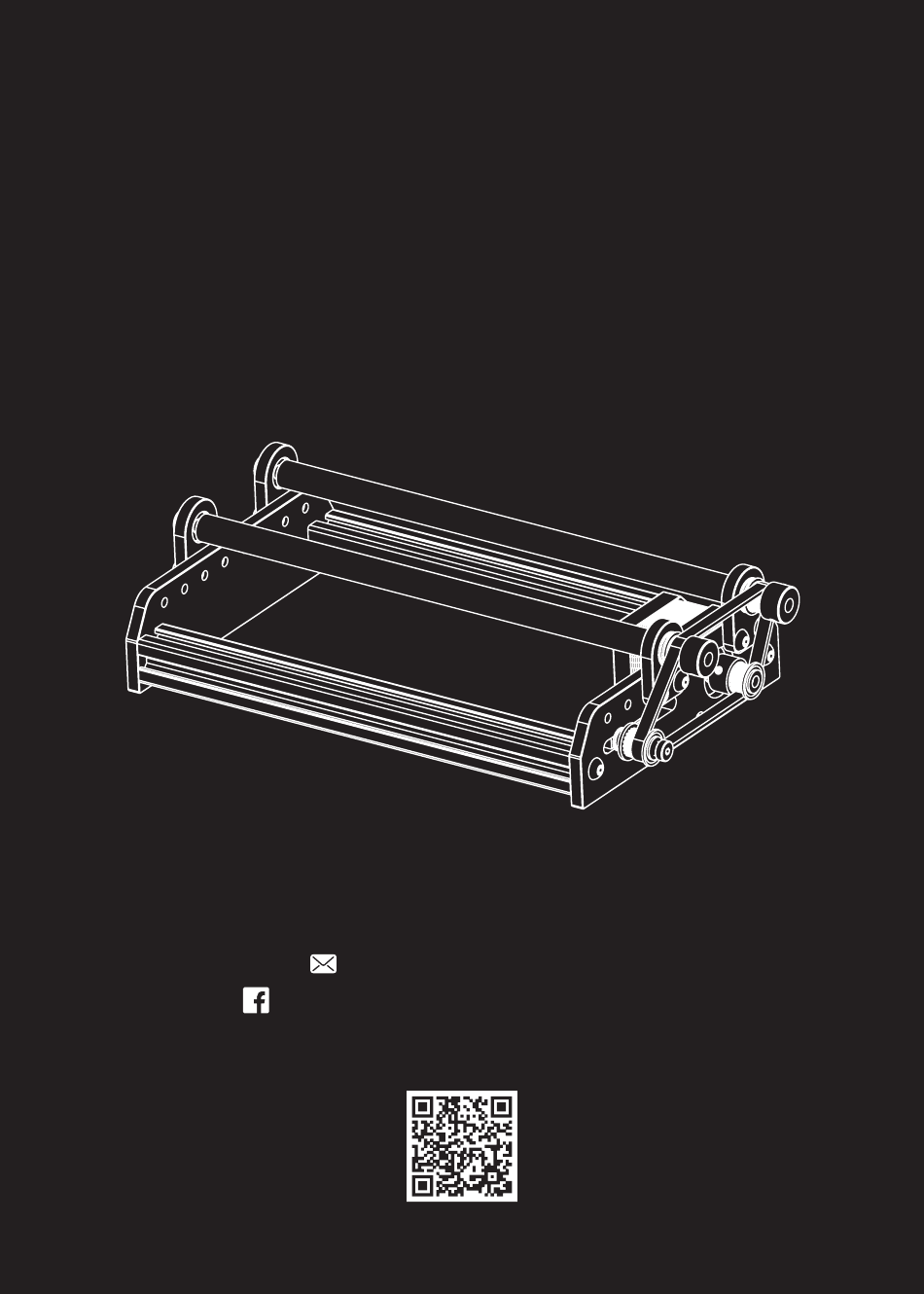

- Page 1 Genmitsu Laser Rotary Roller Engraving Module User Guide If you need any assistance, please contact us via: Email: support@sainsmart.com Facebook messenger: https://m.me/SainSmart Help and support is also available from our Facebook Group...

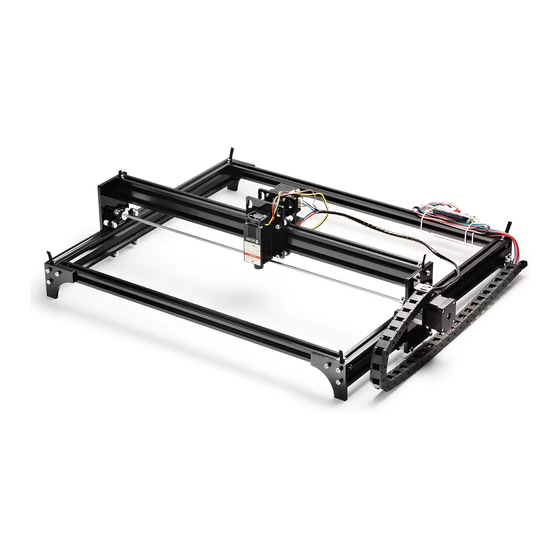

- Page 2 Overview 1. Application: This machine can work with the LE5040 to engrave on materials with a cylindrical shape. 2. Engraving Size: Cylinder diameter 22-125mm, length 20-220mm, material length/material diameter >1.0 3. The Rollers can be set at 5 different distances, each one 15mm further than the last.
- Page 3 STEP 1 Adjust the spacing between rollers 1. Place the engraving material between the two rollers and confirm whether they are far enough apart to support your cylinder without lifting it up too high. Generally the lower the cylinder sits, the better. 2.
- Page 4 STEP 2 Installation Guide using the LE5040 1. Place the LE5040 laser engraving machine on a flat surface, unplug the Y-axis stepper motor cable and use 4 equal height supporting brackets to raise each corner of the machine. 2. Place the rotary axis in an appropriate position on the table, and connect the machine Y axis motor cable to the rotary axis stepper motor.
- Page 5 Note: The original value of $101 is 80, you will want to change this back in the same way when not using the rotary axis. Scan QR code to learn more details about how to use your Rotary Axis for the LE5040 with LaserGRBL...
- Page 6 STEP 4A Focusing your Laser with a Fixed Focal Length 1. In order to bring the laser into focus with a fixed focus laser module, you will need to take the metal focusing tool and stack flat objects under the rotary axis until the distance between the laser and the cylinder is the length of the metal focusing tool.
- Page 7 STEP 4B Focusing your Laser with an Adjustable Focal Length 1. For this laser type you will need to have the laser firing while you focus your laser point on the stock cylinder. Do not fire at any more that 5% power. 2.
