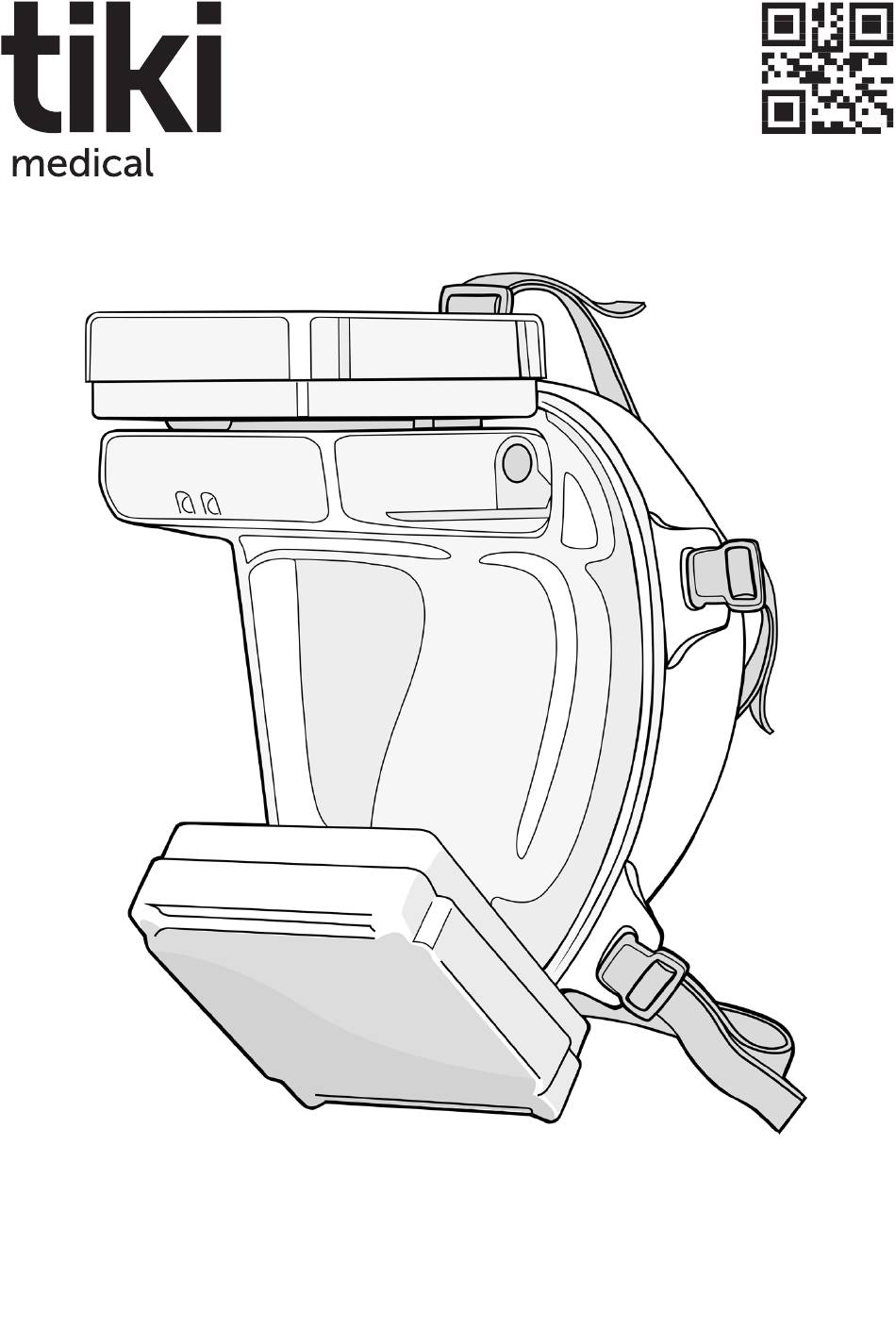

- Page 1 P/N: 1091-01 ENGLISH MANUAL www.tikisafety.com...
- Page 2 If you as a user are pleased with the Tiki medical mask, tell your network! If you are despite our effort, either All rights are reserved to the Tiki medical not fully pleased or presume our mask and this user manual.
-
Page 3: Table Of Contents
1.4 Prepare the Tiki medical mask ..................7 1.5 Training to hazardous mixtures ..................7 1.6 Filter limitations ........................7 1.7 Material of the Tiki medical mask ..................8 1.7.1 Basic components ....................8 1.7.2 Batteries ........................8 1.8 At use ............................9 1.9 Risk situations ........................ - Page 4 4.4 Calibrate the blower ......................31 4.5 Adjusting the blower unit speed ..................31 4.6 Testing the mask during use ..................32 4.7 Take the Tiki medical mask off ..................33 5. Maintenance procedures ................. 34 5.1 Cleaning the Tiki medical mask ..................35 5.2 Replace the inhalation filter (white) ................
-
Page 5: Safety
■ ■ 1.3 Before use The Tiki medical mask itself does not raise awareness of the user in regard to health and safety requirements, under the conditions that: The Tiki medical mask is used exact as described in this user manual. -
Page 6: Facial Hair
Tiki Safety AB designed the Tiki medical mask to industrial standards on ergonomics, yet a situation as a protruding nose can occur. To prevent the indicated risk, Tiki Safety AB advises to use – if possible – a mask of a bigger size. -
Page 7: Prepare The Tiki Medical Mask
– and protective measures to control exposure to hazardous mixtures. 1.6 Filter limitations Note that the P3 particle filters of the Tiki medical mask have – as any other filter – limitations. Therefore, verify that the filters of the Tiki medical mask is in line with the intended use and protects the user to the expected risks in the environment of use. -
Page 8: Material Of The Tiki Medical Mask
The Tiki medical mask holds the basic components as described in paragraph: 2.1 Description on page 12. These basic components are manufactured in the materials as indicated below. None of these materials expose the user of the Tiki medical mask to a health or a safety issue. 1.7.2 Batteries The blower with the internal battery and the external battery contain both lithium polymer (LiPo) batteries. -
Page 9: At Use
■ ■ 1.8 At use For safe use, it is imperative that the Tiki medical mask forms a tight seal to the face of the user. If the Tiki medical mask does not form a tight seal to the face of the user, the risk... -
Page 10: Risk Situations
2.3.4 Filter warning or leak on page 17. Mark that if a gap occurs between the Tiki medical mask and the face of the user, the energy use of the Tiki medical mask is higher and hence the battery time lower. -
Page 11: After Use
In a safe environment and as adhered to the instructions to transit, take the Tiki medical mask off as to the procedure: 4.7 Take the Tiki medical mask off, on page 33. Clean the Tiki medical mask after use, therefore refer to: The MSDS of the hazardous mixture ■... -
Page 12: Design
The inhalation filter (white) is a filter that purifies the air that comes in to the enclosed air volume between the Tiki medical mask and the face of the user. And thus provides filtered air to the user to inhale. - Page 13 The inhalation filter (white) is a P3 particle filter. ■ ■ Mark that the Tiki medical mask includes only particle filters and is therefore not be used in areas that contain gaseous solvents and other hazardous airborne contagions that a P3 particle filter does not remove.
-
Page 14: Pressure Sensor
The Tiki medical mask holds the following components as indicated on figure 1: The mask, that covers the entire face of the user The inhalation filter (white) The blower with internal battery The harness The battery charger The car charger, optional... -
Page 15: Buttons And Indicator Lights
0.2 mbar. Therefore, it is important that the user calibrates the blower at every use of the Tiki medical mask and as the user enters another space as for example: inside versus outside, floor, operating room etc. Refer to the procedure: 4.4 Calibrate the blower on page 31. -
Page 16: Three (3) Red Indicator Lights
Mark that figure 11 shows the underside of the blower with the on / off button on the left. Yet, as the Tiki medical mask is in use, the blower is above the eye-line of the user and hence the on / off button is on the right! -
Page 17: Filter Warning Or Leak
3 from page 23. If a leak occurred to an unknown reason, refer to: ■ ■ 1.3 Before use on page 5 If either of the above is the reason for the alarm, contact Tiki Safety AB ■ ■ ENGLISH – Tiki medical... -
Page 18: Specifications
The dimensions of the Tiki medical masks are designed to ergonomic industrial standards. The Tiki medical masks have as prepared for use, the following weight in gram (g), ‘as prepared for use’, includes: The visor of the mask with seal collar, that covers the entire face of the user ■... -
Page 19: Operational Conditions
(-) 10° C to 45° C and a Relative Humidity (RH) of under 90%. Do not use the Tiki medical mask in an environment with a RH of over 90%. Charge the batteries in an environment with a temperature between 5° C to 30°C, in accordance to: 4.1 Charge the batter(y)(ies) on page 28. -
Page 20: Pictograms
The following markings on the filter are to EN 12942, do not confuse to any other European standard or other standard. Note that the Tiki medical mask holds the following pictograms: The part-number of the parts, indicated with ‘P/N’ ■ ■... -
Page 21: Intended Use
2.6 Intended use The Tiki medical mask is designed as to the ‘PPE directive’ EU 2016 / 425, annex II, paragraph 3.10. And therefore, offers protection against substances and mixtures which are hazardous to health and against harmful biological agents. -
Page 22: Protection Against Skin And Ocular Contact
2.6.2 Protection against skin and ocular contact The Tiki medical mask is intended to prevent that the face of the user gets in contact with substances and mixtures which are either hazardous to health or with harmful biological agents. The Tiki medical mask prevents the penetration and permeation of such substances, mixtures and agents through the protective integument under the foreseeable conditions of use for which the Tiki medical mask is intended. -
Page 23: Procedures Before Use
This lay-out is intended to enable that the end-user can produce quick reference cards for distribution in their internal organisation. Note that, at every time, every procedure is a part of this user manual as an integral part of it. ENGLISH – Tiki medical... -
Page 24: Test Before Any Use That The Mask Is Tight
2. Verify that all parts are present as to paragraph: 2.1 Description on page 12. If any part is not present, contact Tiki Safety AB as to the contact details on page 2. 3. Take the mask – and the mask only – with one hand 4. -
Page 25: Prepare The Mask For Use
Observe the direction to the face as indicated with the text and arrows: ‘This side to the face’ 8. Turn the exhalation filter (green) from the 30° to a 0° angle to attach the exhalation filter to the mask, as to figure 7a ENGLISH – Tiki medical... -
Page 26: Read The Qr Code
3.3 Read the QR code This procedure is not obligated for safe or practical use. Read the Quick Response (QR) code of the Tiki medical mask to retrieve the serial number of the part of the mask. 1. Use a smartphone with an application to read a QR code 2. -
Page 27: Use Procedures
Note it is under the responsibility of either the user or the organisation that holds responsibility over the user, to elaborate either an applicable procedure or a work order to prevent this risk on contamination. Follow at all times this procedure and / or work order. ENGLISH – Tiki medical... -
Page 28: Charge The Batter(Y)(Ies)
5. If the indicator light on the battery charger is green, the battery is fully charged, refer to figure 2. 6. If only the internal battery is used, the Tiki medical mask is ready for use as the internal battery is charged Note –... -
Page 29: Use With The External Battery
If not disconnected, the batteries discharge rapidly. 7. Note that the red tape or screw seal in step 4a is to be applied again if the Tiki medical mask is to be used with the internal battery only again, refer to paragraph: 1.4 Prepare the Tiki medical mask on page 7... -
Page 30: Put The Tiki Medical Mask On
3. Ensure that the mask is cleaned as to the procedure: 5.1 Cleaning the Tiki medical mask on page 35 4. Check the mask for mechanical integrity, if the Tiki medical mask is not ok, either perform the procedure at: ·... -
Page 31: Calibrate The Blower
4. Press the on/off button one additional time to change the speed from medium speed to high speed. 5. Press the on/off button one additional time to return from high speed to automatic speed. ENGLISH – Tiki medical... -
Page 32: Testing The Mask During Use
2. This procedure is to be performed as the mask is on the head of the user, after the procedures: 4.4 Calibrate the blower on page 31, 4.3 Put the Tiki medical mask on, on page 30. -
Page 33: Take The Tiki Medical Mask Off
4. Pull with both hands the mask to its widest stretch 5. Bring with both hands, the mask to a position above the head of the user 6. Clean the mask as to the procedure: 5.1 Cleaning the Tiki medical mask on page 35 ENGLISH – Tiki medical... -
Page 34: Maintenance Procedures
Note it is under the responsibility of either the user or the organisation that holds responsibility over the user, to elaborate either an applicable procedure or a work order to prevent this risk on contamination. Follow at all times this procedure and / or work order. Tiki medical – ENGLISH... -
Page 35: Cleaning The Tiki Medical Mask
If automated machines to clean the mask(s) are in use, remove the filter, blower and as necessary the harness from the mask. 2. Prepare the following to clean the Tiki respiratory mask: › A disinfectant agent in regard to the hazardous environment and / or biological agents ›... -
Page 36: Replace The Inhalation Filter (White)
Observe the direction to the face as indicated with the text and arrows: ‘This side to the face’ 7. Turn the inhalation filter (white) from the 30° to a 0° angle to attach the inhalation filter (white) to the blower as to figure 7a 30° 30° Tiki medical – ENGLISH... -
Page 37: Replace The Exhalation Filter (Green)
5. Turn the exhalation filter (green) to a 30° angle as to the axes of the mask, refer to figure 7b 6. Pull the exhalation filter from the Tiki medical mask and either: c. Or if the exhalation filter (green) is contaminated with biological agents and /... -
Page 38: Storage
■ ■ Humidity (RH) of under (<) 60%. Note – The Tiki Blower & External Battery contain LiPo cells and like all LiPO batteries they must be maintenance charged a minimum once every six (6) months. Warning – Always supervise all battery charging and stop immediately should the battery swell, get hot or if it produces smoke or flames. -
Page 39: Disposal
If so, dispose in accordance to local laws: regional, state, federal and international (as for example EU regulation). The Tiki medical mask without the blower and the filters is mainly composed of PET and TPE materials and is to be recycled in accordance to local ordinances. -
Page 40: Standards
Tiki Safety AB appointed the independent notified body British Standard Institute (BSI) for the examination on the Tiki medical mask and the production line of the Tiki medical mask in regard to the regulation standards under: 7.3 Regulation standards on page 40. -
Page 41: Regulation Standards
The Tiki medical mask is a patented design that is worldwide protected under patent number: D755953. 7.5 CE As the Tiki medical mask is certified and tested to the regulation standards as under paragraph: 7.3 Regulation standards on page 41 and adhered to an CE examination in accordance to EU 2016/425, it bears a CE marking. -
Page 42: Declaration Of Conformity
7.6 Declaration of conformity Tiki medical – ENGLISH... -
Page 43: Warranty
Tiki Safety AB warrants this product against defects in material or workmanship as follows: Tiki Safety AB will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective due to improper workmanship and / or material, under normal use. -
Page 44: Copyright Notice And Disclaimer
3. Delivery of the product or the defective part, postage prepaid and carefully packed, insured and with transport-tracking When Tiki Safety AB or its representative completed the warranty service, any repaired or replacement product or part will be returned to you postage prepaid. -
Page 45: Order Numbers Of Parts
All items are shipped in carton board boxes that are specifically designed to contain the indicated. All orders are shipped EX Works (EXW), this means that Tiki Safety AB makes the ordered products available at their facility and the buyer can trust on the services of their preferred logistics partner and thus take the transport costs. - Page 46 Tiki medical – ENGLISH...
- Page 47 30° 30° ENGLISH – Tiki medical...
- Page 48 General enquiries: info@tikisafety.com English Sales related questions: sales@tikisafety.com Convinced: order@tikisafety.com Manual +46 8 35 32 49 Tiki Safety AB Skällstavägen 9 SE-197 40 Bro, Sweden www.tikisafety.com The Tiki medical mask is designed and manufactured in Sweden.
