USER MANUAL
210914A3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP9X and is the answer not in the manual?

Questions and answers

Related Manuals for Kessil AP9X

Summary of Contents for Kessil AP9X

  • Page 1 USER MANUAL 210914A3...

  • Page 2: Table Of Contents

    INSIDE THE BOX, PARTS DIAGRAM INSTALLATION CONNECTION TOUCH PANEL WI-FI INDICATOR STATES MODE INDICATOR STATES MOUNTING, CONTROLLING MULTIPLE K-LINK & 0-10V FIXTURES, AP9X DAISY-CHAIN SCENARIO CONTROLLED BY SPECTRAL CONTROLLER X, MAINTENANCE, TROUBLESHOOTING GUIDE SAFETY INSTRUCTIONS, INSTRUCTIONS DE SECURITE FCC STATEMENT, SPECIFICATIONS...

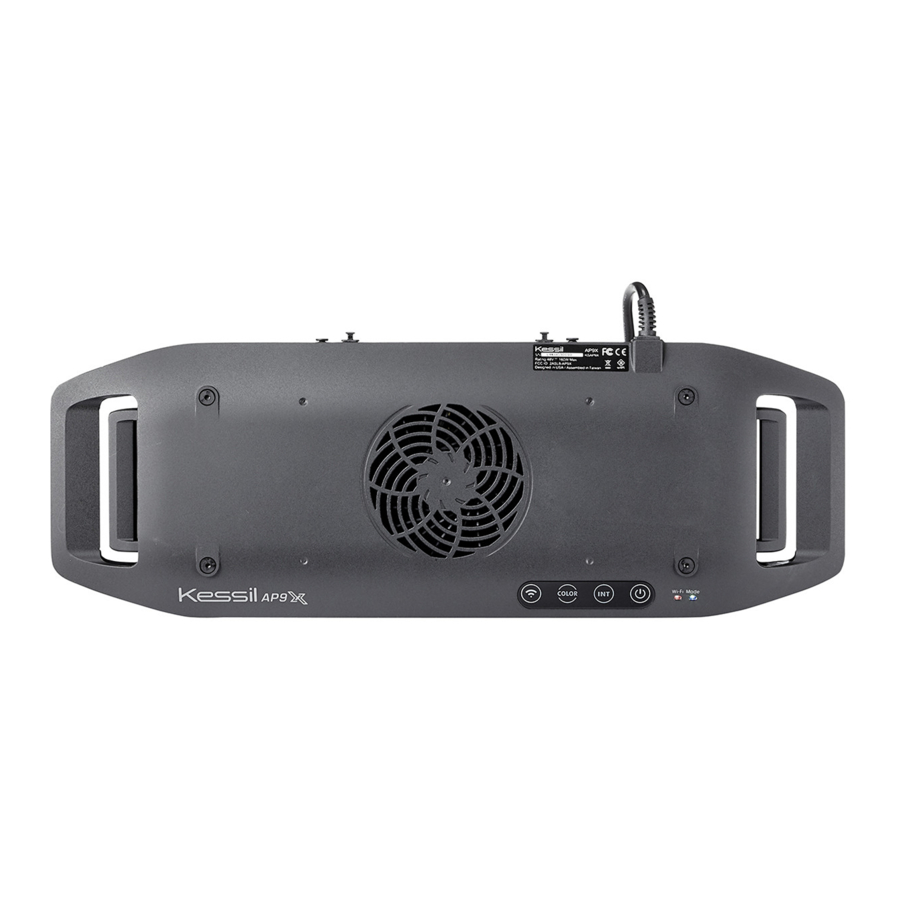

  • Page 3: Inside The Box, Parts Diagram

    / Hanging Kit / Brackets C Touch Panel - Touch once to activate J K-Link Ports D Power - Turn the AP9X on or off. K 0-10V Output Ports E Intensity - Adjust the intensity of the light. L LED Arrays + Reflectors F Color - Adjust the color of the light.

  • Page 4: Installation

    (Plug type varies from country to country) Booting Step Booting After booting The AP9X requires up to 40 seconds to boot. Wi-Fi Mode The Wi-Fi Indicator (B) will first show solid purple light, and then disappear. The Mode Indicator (A) will then show solid green light.

  • Page 5: Connection

    Step Connection Open the “Kessil WiFi” app and follow the instructions in the app to connect to AP9X. You will need the QR Code Sticker provided in the package. If you wish to enter the password manually, the password is...

  • Page 6: Touch Panel

    Touch the Touch Panel (C) once to activate Turn On/Off the AP9X Touch the Power (D) button to turn on/off the AP9X. When the AP9X is off, the Power (D), Intensity (E), or Color (F) buttons can be used to turn on the AP9X.

  • Page 7: Wi-Fi Indicator States

    Solid Green Wi-Fi OFF No Light No Light Solid Purple The AP9X requires up to 40 seconds to boot. The AP9X Wi-Fi Indicator (B) will show solid purple light. Solid Orange Standby mode, ready to be connected. Solid Blue AP mode. Successfully connected to mobile device and act as the master (through "Connect Directly Via Wi-Fi").

  • Page 8: Mode Indicator States

    Solid Green Control buttons enabled. Able to control other K-Link daisy-chained fixtures. Solid Blue Control buttons disabled when the Wi-Fi of AP9X is turned on or when there is a K-Link signal input (e.g. Spectral Controller X). Solid Red The AP9X requires up to 40 seconds to boot. The AP9X Mode Indicator (A) will show solid red light.
  • Page 9 • Hang the light with the four Screw Hooks and the four Hanging Brackets. • To install the Hanging Brackets, remove the screws on the AP9X, use the same screws to secure the fasteners with triangular rings (Hanging Brackets) onto the light fixture.

  • Page 10: Controlled By Spectral Controller X

    Wi-Fi Mode COLOR Slave: Control buttons (C) are disabled - AP9X can be connected and controlled through Kessil Spectral Controller X with a K-Link Cable. - The AP9X control buttons will be disabled. MAINTENANCE 1. Keep the Fan (Air Inlet) (H) and Vents (Air Outlet) (M) clear of dust. To clean the fan, unplug the unit and insert the tip of a CO2 dust blower (or similar dust blower) in one of the venting holes for the Fan (Air Inlet) (H).

  • Page 11: Safety Instructions, Instructions De Securite

    SAFETY INSTRUCTIONS 1. Caution: Misuse of this device contrary to these instructions may result in physical injury or damage to the product. 2. DO NOT use a power adapter outside of the specifications. This is a fire hazard and may lead to unit failure.

  • Page 12: Fcc Statement, Specifications

    FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 13 WPA-PSK / WPA2-PSK Network Encryption Type (Do not support WEP, WPA-Enterprise, WPA2-Enterprise, and Monitor Mode.) @ kessilled kessil.led kessiltube @kessil kessil.com This is a LED light source emitting 40 % or more of total radiation power of the range 250-800 nm in the range of 400-480 nm, and...
