- Page 1 USER MANUAL 200327A1...
-
Page 2: Table Of Contents
TABLE OF CONTENT INSIDE THE BOX PARTS DIAGRAM INSTALLATION & CONNECTION TOUCH PANEL WI-FI INDICATOR STATES MODE INDICATOR STATES MOUNTING, CONTROLLING MULTIPLE K-LINK & 0-10V FIXTURES, WARNING CONTROLLED BY SPECTRAL CONTROLLER X , TROUBLESHOOTING GUIDE, SPECIFICATIONS DEEP CLEANING SAFETY INSTRUCTIONS, INSTRUCTIONS DE SECURITE MAINTENANCE, FCC STATEMENT... -
Page 3: Inside The Box , Parts Diagram

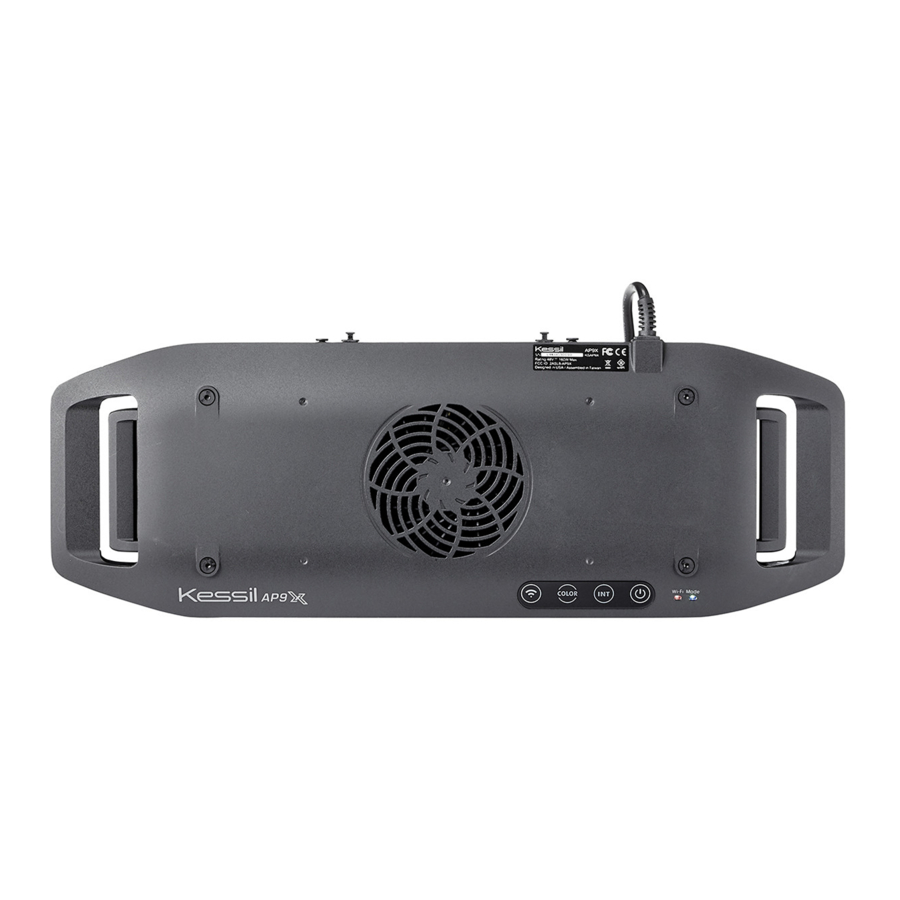

/ Hanging Kit / Brackets C Touch Panel - Touch once to activate J K-Link Ports D Power - Turn the AP9X on or off. K 0-10V Output Ports E Intensity - Adjust the intensity of the light. L LED Arrays + Reflectors F Color - Adjust the color of the light. -
Page 4: Installation & Connection
INSTALLATION & CONNECTION Power Step Power Cord (5.9ft / 1.8m) Connect the AP9X to the Power Adapter and plug it into a wall outlet. The Wi-Fi Indicator Power Adapter (B) will be solid purple to indicate booting mode. (5.9ft / 1.8m) -
Page 5: Touch Panel
Factory Reset the AP9X Touch and hold the Intensity (E), Color (F) & Mode (G) symbols simultaneously for more than 5 seconds to reset the AP9X. The Wi-Fi Indicator (B) will blink red. Replug the power Wi-Fi Mode COLOR... -
Page 6: Wi-Fi Indicator States
Standby mode, ready to be connected. Solid Red Attempting to connect. If it stays for more than 3 minutes, reset AP9X's WiFi configuration (Touch and hold the Intensity (E) & Mode (G) symbols simulta- neously for 3 seconds) and add the AP9X in the app again. -
Page 7: Mode Indicator States
Solid Orange Solid Blue Broadcasting Wi-Fi signal. K-Link signal as Output , able to daisy-chain other slave AP9X (Unable to daisy-chain other master AP9X). Solid Orange NOT broadcasting Wi-Fi signal. K-Link signal as Input, able to daisy-chain other master & slave AP9X. -
Page 8: Fixtures, Warning
• Hang the light with the four Screw Hooks and the four Hanging Brackets. • To install the Hanging Brackets, remove the screws on the AP9X, use the same screws to secure the fasteners with triangular rings (Hanging Brackets) onto the light fixture. -
Page 9: Controlled By Spectral Controller X
- AP9X can be connected and controlled through Kessil Spectral Controller X with a K-Link Cable. - Switch the AP9X to slave mode first, by touching the Mode (G) symbol for 3 seconds, then connect to the Spectral Controller X. The AP9X will be grouped under the TB group. -
Page 10: Deep Cleaning
DEEP CLEANING Remove the Screws on the Bottom Step Use a T10 Torx key to remove 10 (4 x L: 12mm / 6 x L: 5mm) M3 screws on the bottom cover. Remove the Screws on the Top Step Use a 2.5mm Hex key (Not included) to remove 4 (L: 12mm) M4 screws (I) on the upper cover. -
Page 11: Safety Instructions, Instructions De Securite
SAFETY INSTRUCTIONS 1. Caution: Misuse of this device contrary to these instructions may result in physical injury or damage to the product. 2. DO NOT use a power adapter outside of the specifications. This is a fire hazard and may lead to unit failure. -
Page 12: Maintenance, Fcc Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 8 inches (20cm) between the radiator & your body. @ kessilled kessil.led kessiltube @kessil kessil.com...
