REMKO MTK 260 Operation, Technology And Spare Parts

Portable room air conditioner

Advertisement

Quick Links

REMKO MKT 260
Portable Room Air Conditioner
Operation
Technology
Spare Parts
Edition GB – P04
REMKO – powerful like a bear.

Advertisement

Table of Contents
loading

Summary of Contents for REMKO MTK 260

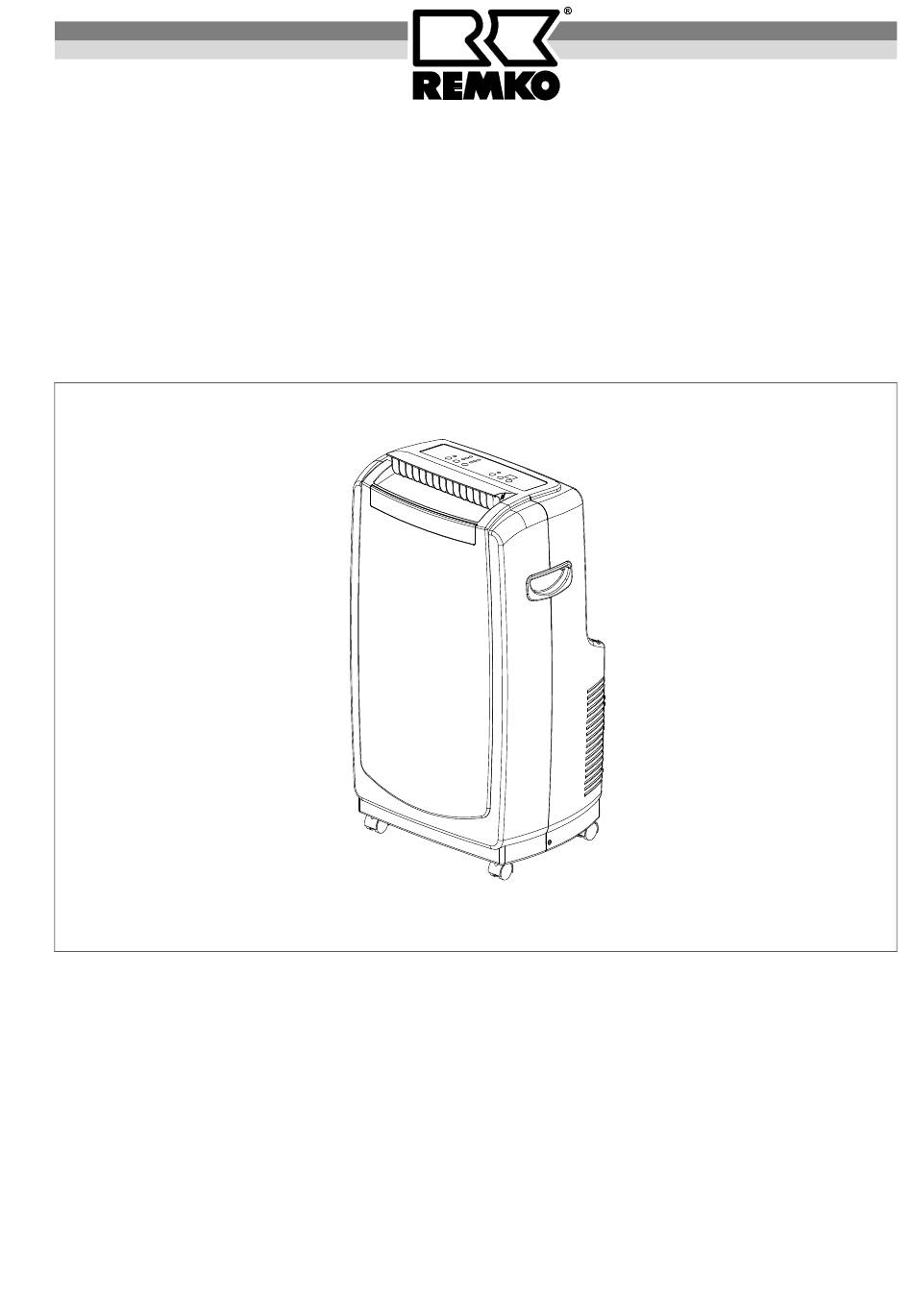

  • Page 1 REMKO MKT 260 Portable Room Air Conditioner Operation Technology Spare Parts Edition GB – P04 REMKO – powerful like a bear.
  • Page 3: Table Of Contents

    Our guarantee becomes null and void if the unit is used, set up or maintained improperly, or if modifications are made to the supplied unit without our prior consent. Subject to alterations! Portable Room Air Conditioner REMKO MKT 260 Contents Contents Page Page...
  • Page 4: Safety Instructions

    Extensive tests have been conducted on the material, ◊ Do not place the unit on its side. functionality and quality of the REMKO portable air con- ◊ Protect all electrical cables from being damaged, for ditioner to ensure that it is a high-performance unit with example, by animals.
  • Page 5: Description Of Device

    Description of Device The MKT 260 portable room air conditioner comes with The unit has been designed for automatic, universal, smooth air dehumidification. Its compact dimensions an infrared remote control and an air outlet hose with a make it easy to transport and set up in all rooms. flat nozzle.
  • Page 6 Control panel 1 Button "Power" 5 Buttons Up/Down "Timer/Temp Adjust" The unit is switched on or off with this button. These buttons can be used to select the desired tar- get temperature in the cooling and dehumidifying op- 2 Button "Mode" erating modes.
  • Page 7 10 Display "Fan speed" Remote control functions The signal lights of the display indicate the set fan All settings can also be made using an infrared remote speed. control. A description of the button functions can be found in the “Control panel” section. Highest fan speed: "High"...
  • Page 8: Prior To Initial Operation

    Prior to Initial Operation Expelling the warm air During cooling mode, the device generates warm air. The unit is set up in the desired location with the air out- This air must be expelled from the room being cooled to let side facing the room.
  • Page 9: Initial Operation

    Initial Operation Fan operating mode (Circulation) Prior to initial operation, the air intake and outlet open- 1. Switch the unit on with the "Power“ but- ings must be inspected for foreign bodies and the air in- ton. take filter for dirt. Blocked or dirty grilles and filters must 2.
  • Page 10: Shutting Down The Unit

    Shutting Down the Unit Cleaning the plastic housing: For cleaning, use only a clean, soft and slightly moist To shut down the unit, always switch it off with the towel to carefully wipe the housing. Power button on the control panel or via the remote control.
  • Page 11: Troubleshooting

    Troubleshooting This unit has been designed using state-of-the-art manufacturing processes and it has been tested repeatedly to ensure that it is working properly. However, should problems occur, refer to the following list. Unplug the unit from the power supply before performing any work on it! Problem Possible cause Check...
  • Page 12: Exploded View

    Exploded View We reserve the right to make changes to dimensions and design in the interest of technical progress.
  • Page 13: Spare Part List

    Spare Part List No. Description Ref. No. No. Description Ref. No. 19 Fan wheel (circulation) 1106319 1 Unit base 1106300 20 Fan motor (circulation) 1106320 2 Transport roller 1106301 3 Motor with rotating wheel with blades 1106302 21 Cover, top 1106321 4 Capacitor 2,5 µF 1106306...
  • Page 14: Wiring Diagram

    For the guarantee to be valid, the purchaser or his cus- Important information about recycling! tomer must completely fill out the “guarantee certificate” enclosed with all units and send it back to REMKO GmbH Only authorised personnel may come into contact with & Co. KG the cold cycle.
  • Page 15: Insulation Diagram Of The Wall Lead-Through

    Insulation Diagram of the Wall Lead-through Back pressure flap Safety guard Sealing cap Telescope pipe Installation instructions 1. Create a core hole in the outer wall (maximum wall 4. Attach the safety guard to the outer side of the wall thickness 480 mm) with a diameter of at least 125 with 4 screws.
  • Page 16 REMKO GmbH & Co. KG Klima- und Wärmetechnik D-32791 Lage Im Seelenkamp 12 • D-32777 Lage PO Box 1827 • Phone (0 52 32) 606 - 0 (0 52 32) 606260 E-Mail: info@remko.de Internet: www.remko.de...
