SENSIRION SCD30 Handling Manualline

Co2, humidity and temperature sensor

Hide thumbs Also See for SCD30:

Handling Guideline

For the SCD30 CO

Introduction

The SCD30 CO

, humidity and temperature sensor

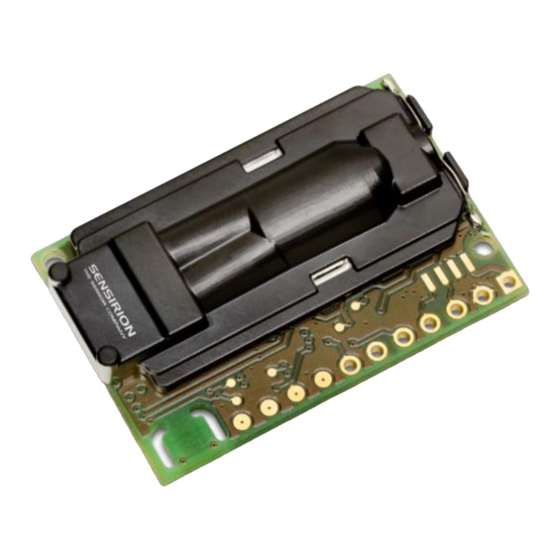

consists of a PCB with discrete electric components and

an optical cell: The RH/T sensor is soldered on the PCB,

concentration is measured in an optical cell in a

dual-channel configuration.

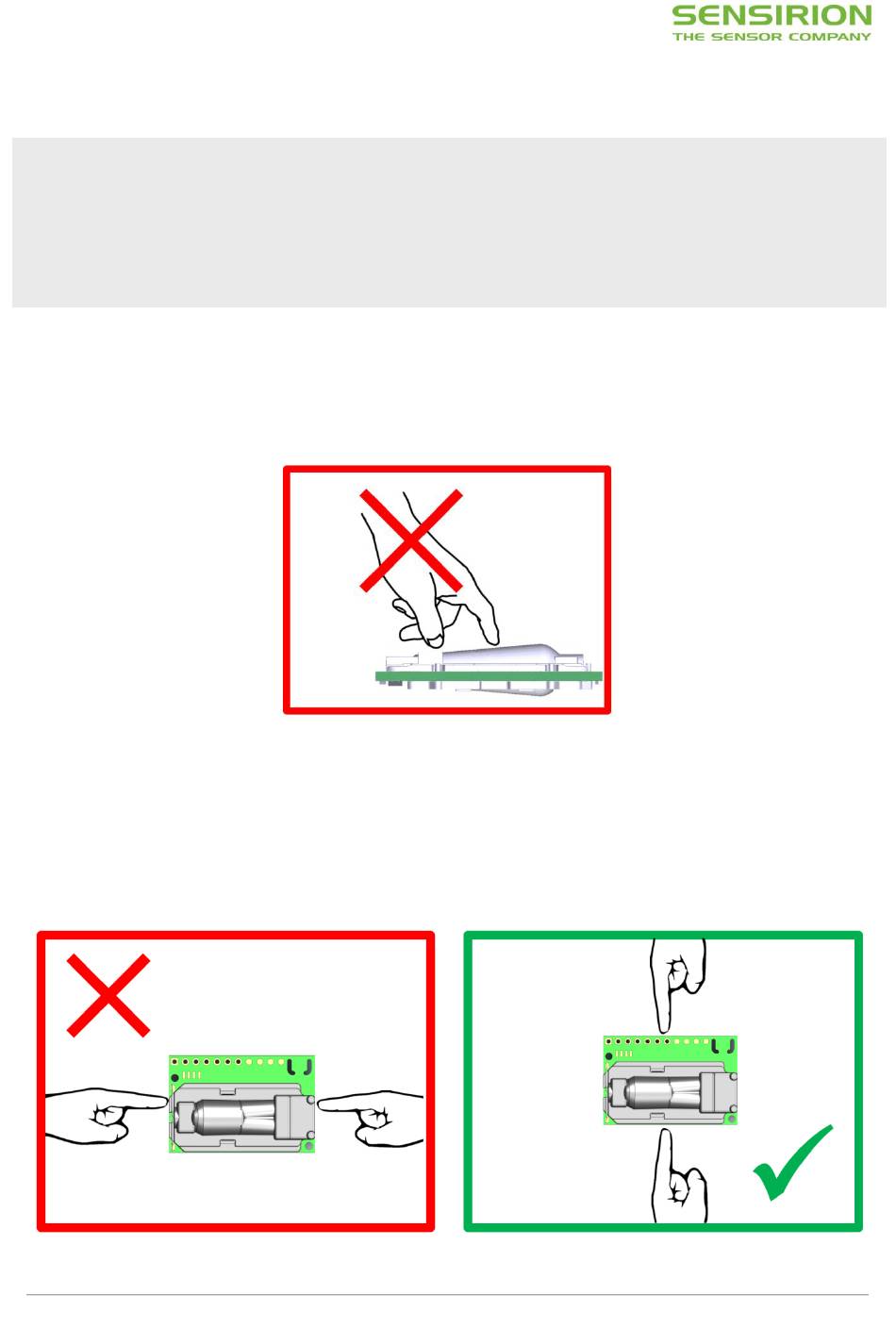

Never touch or apply force on the optical cell. Only handle the sensor by touching the PCB. The sensor should always be

handled with clean gloves in a clean environment to keep the sensor away from contaminant like dust, dirt or grease.

The SCD30 is an ESD sensitive product and must be prevented from electrostatic discharge events at all times. Thus,

operators must always use proper ESD equipment when handling the sensor. Furthermore, the SCD30 sensor module

must only be touched on the long side of the PCB to avoid contact with the metallized parts of the optical cavity.

www.sensirion.com

, humidity and temperature sensor

Version 2 – March 2019 – D1

Force applied on the optical cell and ESD events might

impact the sensor accuracy and functionality. This

application note explains how to handle the SCD30

properly to guarantee optimal sensing performance and

to avoid sensor damage.

1/3

Table of Contents

Do you have a question about the SCD30 and is the answer not in the manual?

Page 1 ESD Precautions The SCD30 is an ESD sensitive product and must be prevented from electrostatic discharge events at all times. Thus, operators must always use proper ESD equipment when handling the sensor. Furthermore, the SCD30 sensor module must only be touched on the long side of the PCB to avoid contact with the metallized parts of the optical cavity.
Page 2 SCD30 Sample on EvalKit When doing measurements with an SCD30 sample on an EvalKit, the optical cell should never be in contact with an object. To avoid mechanical stress, the adapter PCB with the SCD30 on top should be facing down.
Page 3 PURPOSE, ARE EXPRESSLY EXCLUDED AND DECLINED. with such unintended or unauthorized use, even if SENSIRION shall be SENSIRION is only liable for defects of this product arising under the allegedly negligent with respect to the design or the manufacture of the conditions of operation provided for in the data sheet and proper use of product.
