Adastra A240TU Quick User Manual

Adastra A240TU Quick User Manual

With usb, fm tuner and 5-zone selector

Advertisement

Quick Links

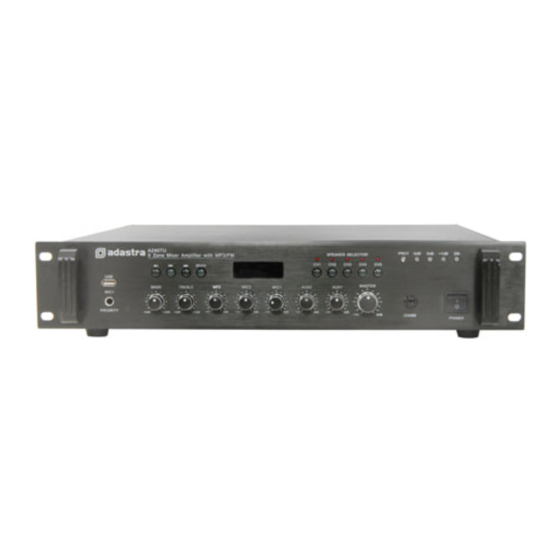

A240TU - Mixer amplifier with USB, FM tuner and 5-zone selector
Features:
2 MIC input, 3 AUX input,1 AUX output
Priority for MIC 1 input
4-16Ω or 70V or 100V line output,
Chime function
Current limiter, short circuit, thermal protection with Protect indicator
5-zone 100V line switching

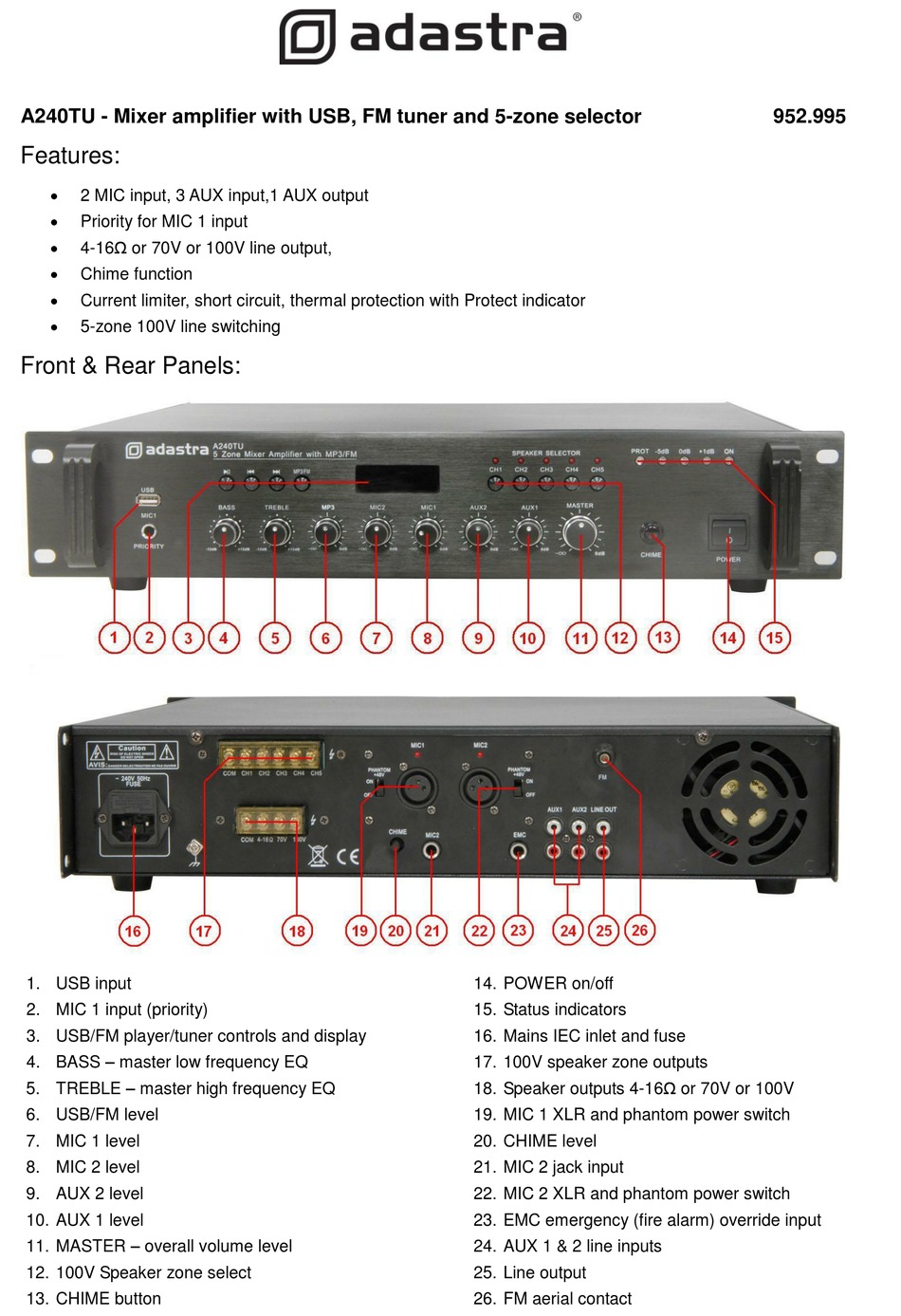

Front & Rear Panels:
1. USB input
2. MIC 1 input (priority)
3. USB/FM player/tuner controls and display
4. BASS – master low frequency EQ
5. TREBLE – master high frequency EQ
6. USB/FM level
7. MIC 1 level
8. MIC 2 level
9. AUX 2 level
10. AUX 1 level
11. MASTER – overall volume level
12. 100V Speaker zone select
13. CHIME button
14. POWER on/off
15. Status indicators
16. Mains IEC inlet and fuse
17. 100V speaker zone outputs
18. Speaker outputs 4-16Ω or 70V or 100V
19. MIC 1 XLR and phantom power switch
20. CHIME level
21. MIC 2 jack input
22. MIC 2 XLR and phantom power switch
23. EMC emergency (fire alarm) override input
24. AUX 1 & 2 line inputs
25. Line output
26. FM aerial contact
