Listen ListenIR Quick Reference Card

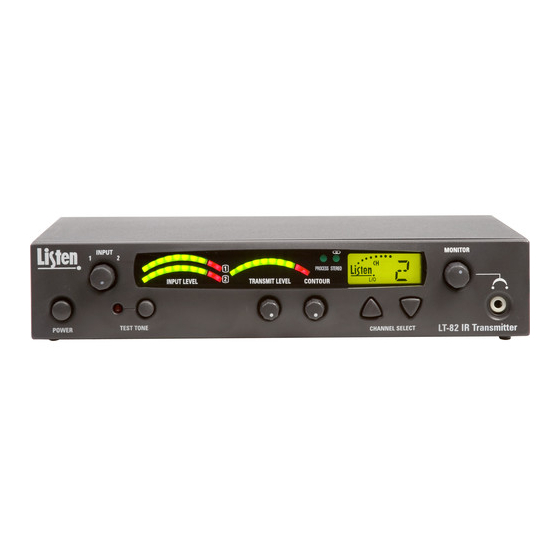

LT-82 Quick Reference Card
Input 1 and 2:
Adjust audio input
levels of Input 1 and
Input 2 here.
Test Tone: Activates a tone
to aid system setup.
Power: ON/OFF
RF Output Indicator:
Indicates transmitter is
outputting RF.
© 2008 Listen Technologies Corporation
Input Level Indicators: Shows audio Input 1 and Input 2 levels.
Transmit Level Indicator: Shows mixed audio level.
Process LED: Indicates audio processing mode is active.
Transmit Level: Adjusts mixed
audio levels.
Stereo LED: Indicates stereo mode is active.
Monitor Jack:
Plug in a headset to monitor audio.
LCD Display:
See LCD Display below.
Contour: Equalization ad-
justment; boosts or cuts
high frequencies.
Program Mode: Indicates the unit is in program
mode.
Channel Display: Displays what channel the LT-82 is
currently on.
Lock Icon: Indicates the unit is locked on current
channel.
® All Rights Reserved 031808
Channel Select Up
and Down: Use to
select channel.
Buttons also used
for programming
functions.
