Listen LT-803 Quick Reference Card

LT-803-072 Quick Reference Card

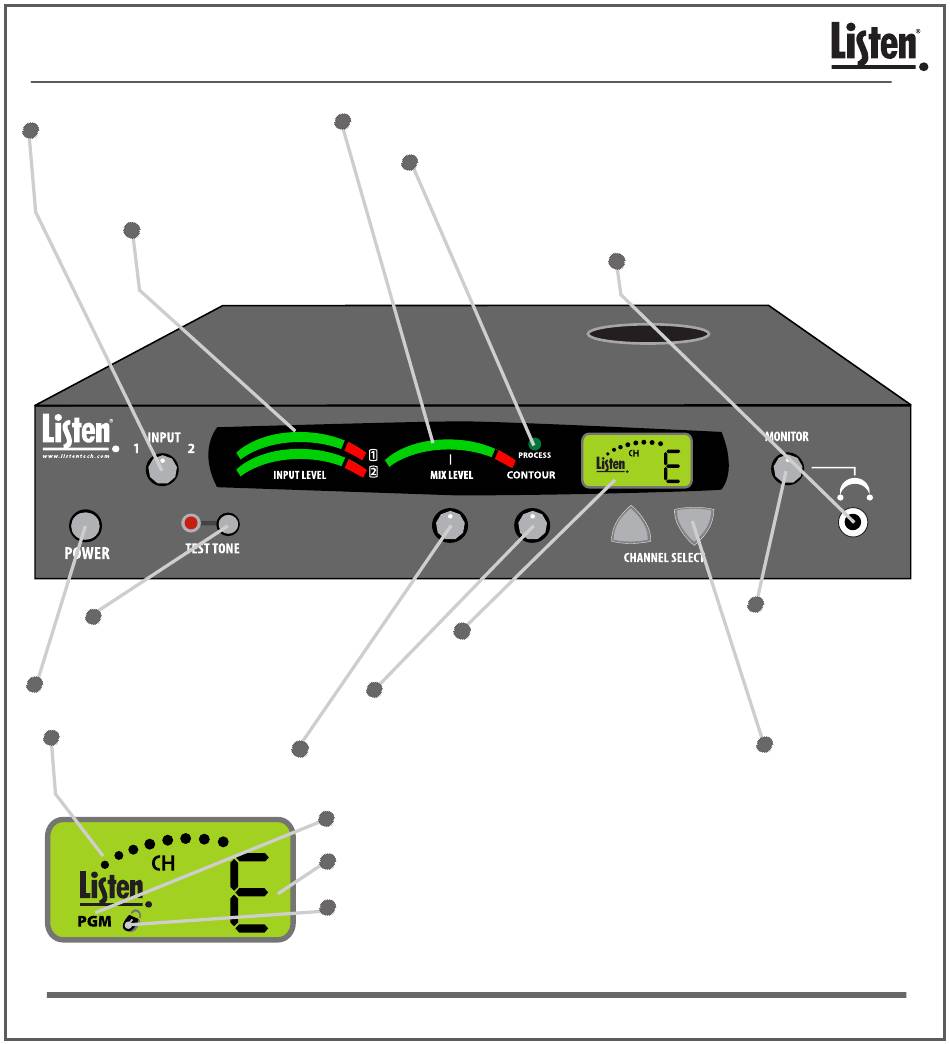

Input 1 and 2:
Adjust audio input levels of
Input 1 and Input 2 here.
Input Level Indicators:
Shows audio Input 1
and Input 2 levels.
Test Tone: Activates a tone
to aid system setup.
Power Button: Turns unit On/Off.
RF Output Indicator:
Indicates transmitted
RF power level.
© 2008 Listen Technologies Corporation
Mix Level: Shows mixed audio output level.
Process LED: Indicates audio processing mode is active.
LCD Display: See LCD
display quick reference.
Contour: Equalization adjustment;
boosts or cuts high frequencies.
Mix Transmit Levels: Adjusts the amount of
mixed audio being transmitted.
PGM: Indicates the unit is in program mode.
Channel Display: Displays the current channel.
Lock Icon: Indicates the unit is locked on current
channel. Hold Channel up button for 3
seconds to lock On/Off channel.
Press and hold the down button for 10
seconds to activate program mode. Press
up button to toggle process On/Off.
Monitor Jack: Plug in earphone(s)
® All Rights Reserved 200859
to monitor audio.
LT-803 FM Transmitter
Monitor Level:
Adjust the Monitor
output volume.
Channel Select
UP/DOWN: Use to
select channel
(A,E,H). Buttons
also used for
programming
functions.
