Summary of Contents for Rohde & Schwarz OSP-B200R

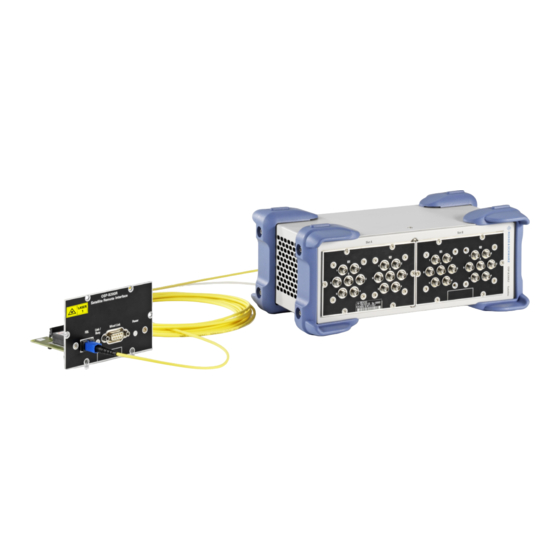

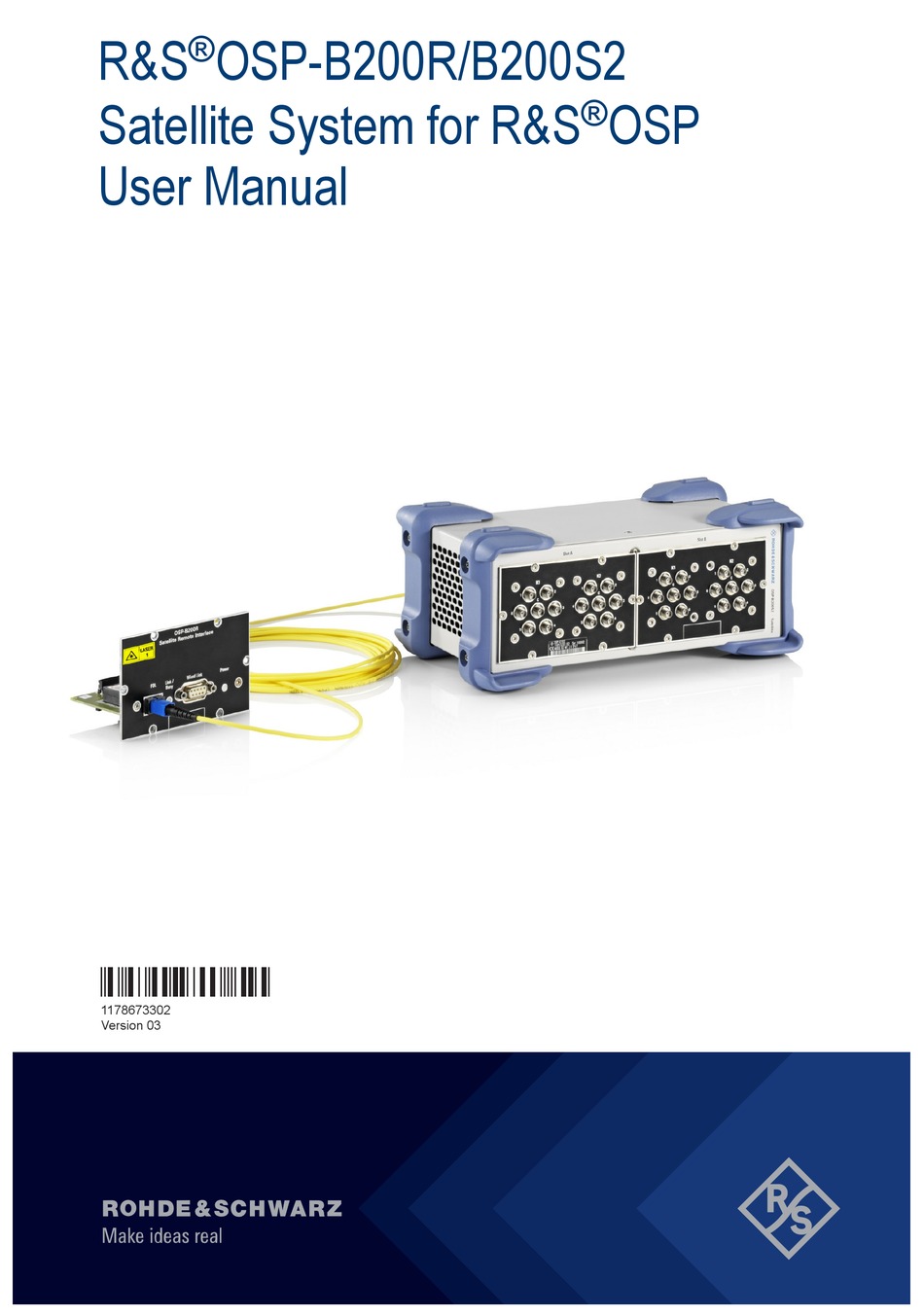

- Page 1 ® R&S OSP-B200R/B200S2 ® Satellite System for R&S User Manual (;ÜÑQ2) 1178673302 Version 03...
- Page 2 This user manual describes the following satellite system models: ● R&S ® OSP-B200R Remote Control Module (order no. 1528.3140K02) ● ® R&S OSP-B200R Remote Control Module with FOL (order no. 1528.3140K04) ● ® R&S OSP-B200S2 Satellite Unit (order no. 1528.3134K02) ● R&S ®...
-
Page 3: Table Of Contents
Application Notes, Application Cards...............12 Drivers..........................12 Release Notes and Open Source Acknowledgment..........12 4 Hardware Description................13 Remote Control Interface Module R&S OSP-B200R..........13 Satellite Unit R&S OSP-B200S2................. 14 Accessories for the Satellite System................ 15 5 Preparing for Use................. 17 Unpacking and Checking................... 17 Mounting the RC Module into a Base Unit..............17... - Page 4 ® Contents R&S OSP-B200R/B200S2 Storage.........................24 Disposal........................24 8 Maintenance..................25 Cleaning........................25 Maintaining Flawless FOL Connections..............25 Contacting Customer Support...................27 User Manual 1178.6733.02 ─ 03...
-
Page 5: Safety And Regulatory Information
Intended use The R&S OSP-B200R/B200S2 is designated for switching and control applications, including RF switching, in industrial, administrative, and laboratory environments. Use the R&S OSP-B200R/B200S2 together with the R&S OSP base switch units, see Chapter 2, "Key Features", on page 10, and only for its designated purpose. - Page 6 ® Safety and Regulatory Information R&S OSP-B200R/B200S2 Safety Instructions Lifting and carrying the product The maximum weight of the product is provided in the data sheet. To move the product safely, you can use lifting or transporting equipment such as lift trucks and forklifts. Fol- low the instructions provided by the equipment manufacturer.
- Page 7 ® Safety and Regulatory Information R&S OSP-B200R/B200S2 Safety Instructions ● Only use the power cable delivered with the product. It complies with country-spe- cific safety requirements. Only insert the plug into an outlet with protective conduc- tor terminal. ● Only use intact cables and route them carefully so that they cannot be damaged.
-
Page 8: Labels On The Product
® Safety and Regulatory Information R&S OSP-B200R/B200S2 Warning Messages in the Documentation Class 1M lasers Safe for the naked eye. If you look into the laser beam with optical instruments such as binoculars or eye loupes, you risk damaging your eyes. -
Page 9: Korea Certification Class B
® Safety and Regulatory Information R&S OSP-B200R/B200S2 Korea Certification Class B 1.4 Korea Certification Class B 이 기기는 가정용(B급) 전자파 적합기기로서 주로 가정에서 사용하는 것을 목적으로 하 며, 모든 지역에서 사용할 수 있습니다. User Manual 1178.6733.02 ─ 03... -
Page 10: Key Features
● The fiber-optic cables easily feed through the shielding of anechoic chambers Base unit required You can operate the satellite options R&S OSP-B200R and R&S OSP-B200S2 only in connection with one of the following base switch units: ● R&S OSP120, R&S OSP130 or R&S OSP150 (1st generation) ●... -
Page 11: Documentation Overview
(2nd generation) 3.1 User Manual Contains the description of all functions of the R&S OSP-B200R and R&S OSP- B200S2. The user manual supports you during the full life cycle of the product, from installation to interfaces. It provides explanations, step-by-step procedures, figures and examples, and information on maintenance. -
Page 12: Data Sheets And Brochures
● News and information on firmware updates 3.5 Data Sheets and Brochures The data sheet contains the technical specifications of the R&S OSP-B200R/B200S2. It also lists the firmware applications and their order numbers, and optional accesso- ries. The brochure provides an overview of the instrument and deals with the specific char- acteristics. -
Page 13: Hardware Description
4.1 Remote Control Interface Module R&S OSP-B200R The interface for operating the satellite unit R&S OSP-B200S2 is the one-slot remote control (RC) module R&S OSP-B200R. It must be installed in one of the base switch units listed in Chapter 2, "Key Features",... -
Page 14: Satellite Unit R&S Osp-B200S2
® Hardware Description R&S OSP-B200R/B200S2 Satellite Unit R&S OSP-B200S2 4.2 Satellite Unit R&S OSP-B200S2 The module R&S OSP-B200S2 is the satellite unit for the R&S OSP family. It offers two slots for standard size (one-slot) switch modules: Figure 4-3: Front view of R&S OSP-B200S2 satellite with two modules (R&S OSP-B128 and -B102) Figure 4-4: Rear view of R&S OSP-B200S2 satellite unit with interface connectors, here model K04... -
Page 15: Accessories For The Satellite System
Power, Overheat, Link/Busy = Status LEDs, see Table 6-1 Risk of equipment damage Connect [Wired Link] to the R&S OSP-B200R remote control interface module, only. Connecting it to any other equipment can cause damage. 4.3 Accessories for the Satellite System... - Page 16 ® Hardware Description R&S OSP-B200R/B200S2 Accessories for the Satellite System Type Description Length Order no. R&S OSP-Z203DF 30 m 1528.1690.30 R&S OSP-Z203EF 40 m 1528.1690.40 R&S OSP-Z204XF 0.5 m 1528.1702.02 R&S OSP-Z204YF 1528.1702.03 Multi-mode fiber-optic link (FOL) cable, orange. R&S OSP-Z204ZF 1528.1702.04...
-
Page 17: Preparing For Use
If the delivery is incomplete or equipment is damaged, contact Rohde & Schwarz. 5.2 Mounting the RC Module into a Base Unit Mount the one-slot RC interface module R&S OSP-B200R into one of the R&S OSP base switch units listed in Chapter 2, "Key... -
Page 18: Mounting A Switch Module Into The Satellite
® Preparing for Use R&S OSP-B200R/B200S2 Mounting a Switch Module into the Satellite 5.3 Mounting a Switch Module into the Satellite If you have ordered the satellite unit R&S OSP-B200S2 together with R&S OSP switch modules, these modules are mounted and tested in the factory. -
Page 19: Connecting The Satellite System's Components
10. Reconnect the cables to the satellite unit. 5.4 Connecting the Satellite System's Components For the overall satellite system, make the following interface connections: ● Base unit to its integrated RC interface module R&S OSP-B200R, see Figure 5-1 ● RC interface module to satellite unit R&S OSP-B200S2 –... - Page 20 4-1). Risk of equipment damage Connect [Wired Link] to the R&S OSP-B200R remote control interface module, only. Connecting it to any other equipment can cause damage. In this configuration, the satellite unit R&S OSP-B200S2 is powered by the R&S OSP base unit via the DC cable.
- Page 21 ® Preparing for Use R&S OSP-B200R/B200S2 Connecting the Satellite System's Components 5.4.2 Satellite System with Fiber-Optic Link Figure 5-5: Satellite system with fiber-optic link (FOL, K04 models only) and DC power supply For remote operation of the satellite unit at a longer distance or inside a shielded room, use an FOL cable R&S OSP-Z201x or R&S OSP-Z203x and optionally with R&S OSP-...
- Page 22 ® Preparing for Use R&S OSP-B200R/B200S2 Connecting the Satellite System's Components Figure 5-6: Interface connections in the R&S OSP-B200R/B200S2 satellite system User Manual 1178.6733.02 ─ 03...
-
Page 23: Operating The Satellite System
Once powered up, operate modules in the satellite unit as if installed in the base unit. 6.1 System Status After booting, 2 LEDs in the RC interface module R&S OSP-B200R and 3 LEDs in the satellite unit R&S OSP-B200S2 indicate the system status as follows:... -
Page 24: Transporting, Storage And Disposal
® Transporting, Storage and Disposal R&S OSP-B200R/B200S2 Disposal 7 Transporting, Storage and Disposal 7.1 Transporting Packing Use the original packaging material. It consists of antistatic wrap for electrostatic pro- tection and packing material designed for the product. If you do not have the original packaging, use similar materials that provide the same level of protection. -
Page 25: Maintenance
® Maintenance R&S OSP-B200R/B200S2 Maintaining Flawless FOL Connections 8 Maintenance The product does not require regular maintenance. It only requires occasional clean- ing. It is however advisable to check the nominal data from time to time. If you use a fiber-optic link (FOL) with FSMA connectors, clean these connectors according to Chapter 8.2, "Maintaining Flawless FOL... - Page 26 ® Maintenance R&S OSP-B200R/B200S2 Maintaining Flawless FOL Connections Figure 8-2: Schematic view of two opposing fiber end faces with contamination Blue = Fiber core, typical diameter is 50 µm Red = Contamination in the contact area Recommended cleaning equipment ●...
-
Page 27: Contacting Customer Support
® Maintenance R&S OSP-B200R/B200S2 Contacting Customer Support If no instructions are available, apply a small amount of alcohol to your cleaning equipment. Proceed as described for dry cleaning (step 2 step 5. To remove alcohol and contamination from the connector's end face, repeat the dry cleaning procedure.
