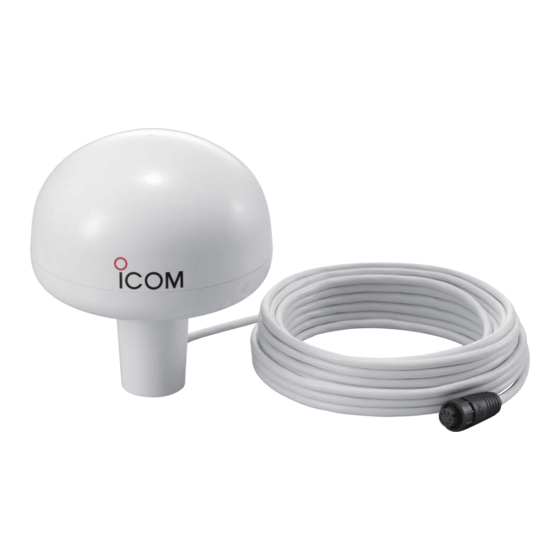

- Page 1 GPS RECEIVER S-14710XZ-C1 Sep. 2010...
- Page 2 Addresses are provided on the inside back cover for your convenience. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SECTION SPECIFICATIONS SECTION INSIDE VIEWS SECTION PARTS LIST SECTION MECHANICAL PARTS SECTION BOARD LAYOUTS SECTION BLOCK DIAGRAM SECTION VOLTAGE DIAGRAM... - Page 4 SECTION 1. SPECIFICATIONS • Power supply voltage : 4.75 to 5.25 V DC (supplied from the MarineCommander ™ • Operating temp. range : −20˚C to +60˚C; −4˚F to +140˚F • Relative humidity : Less than 95% (at +35˚C; +95˚F) 1 ⁄2 3 ⁄16 •...
-
Page 5: Section 2 Inside Views
SECTION 2. INSIDE VIEWS • MAIN UNIT (TOP VIEW) 3.3 V REGULATOR (IC2) GPS RECEIVER MODULE RS-232 LINE DRIVER (IC3) (IC1) (FI1) • MAIN UNIT (BOTTOM VIEW) GPS ANTENNA (EP3) 2 - 1... - Page 6 SECTION 3. PARTS LIST [MAIN UNIT] PARTS DESCRIPTION LOCATION 1120002951 S.IC UPD4721GS-GJG-A 28.5/30.0 1180002020 S.REG BA033FP-E2 8.0/41.0 1190002581 S.IC ITRAX03S1/IT03S341EPPS1677 <MRF 27.0/48.5 1730002331 S.ZEN MAZ8100GML 10.8/20.2 1730002331 S.ZEN MAZ8100GML 10.8/16.7 1730002331 S.ZEN MAZ8100GML 11.5/13.8 1730002331 S.ZEN MAZ8100GML 11.5/10.4 1790001711 S.DIO NNCD5.6C-T1-A 10.5/25.1 2020002550 S.DIE...
-
Page 7: Mechanical Parts
SECTION 4. MECHANICAL PARTS [CHASSIS PARTS] [ACCESSORIES] ORDER ORDER DESCRIPTION QTY. DESCRIPTION QTY. 8900018230 OPC-1886 <LIA> 8930049400 2273 PIPE 8930049740 HAS-40 (X-2272-3) STAINLESS BAND 8510012340 2273 L-CASE 8930049320 2288 VENT.SHEET 8810008661 PHBT M3 X 8 NI-ZC3 MP11 8510012351 2273 U-CASE-1 MP13 8930049392 2273 MAIN SEAL-2 (TOT) MP14... -
Page 8: Board Layouts
SECTION BOARD LAYOUTS The combination of top side and bottom side of this • MAIN UNIT (TOP VIEW) GPS5V GPSGND GPSTXD GND-G5 GPSRXD GPS-D7 5 - 1... - Page 9 The combination of top side and bottom side of this • MAIN UNIT (BOTOM VIEW) B6980B 5 - 2...
-
Page 10: Block Diagram
SECTION BLOCK DIAGRAM BA033FP 3.3V 3.3 V GPS5V regulator GPS antenna #DAKC1575MS74T TDFM2A-1575A-10A ITRAX03-S-1 UPD4721GS GPSTXD GPS receiver module RS-232 line driver GPSRXD 6 - 1... -
Page 11: Voltage Diagram
SECTION VOLTAGE DIAGRAM • MAIN UNIT #DAKC1575MS74T TDFM2A-1575A-10A BA033FP MMZ1608Y102BT 3.3V 3.3V GPS5V 0.01 0.01 0.01 4.7K ITRAX03-S-1 0.01 3.3V TCAP1 BOOT1 3.3V VDDDIG SPI1XCS0 0.01 MMCDAT SPI1SDO UPD4721GS-A SPI1SDI SPI1CLK RFIN 3.3V 0.001 XRESET BOOT2 MMCCLK STBY GPS5V VCHA GPSGND SPI1XCS2 RXD1... - Page 12 Highway 17 Delta, B.C., V4K 5B8, Canada : http://www.icomspain.com Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090 E-mail : icom@icomspain.com : http://www.icomcanada.com E-mail : info@icomcanada.com Blacksole House, Altira Park, Herne Bay, Kent CT6 6GZ, UK Phone : +44 (01227) 741741...
- Page 13 S-14710XZ-C1 1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2010 Icom Inc.
