Summary of Contents for ARTHUR HOLM ERT

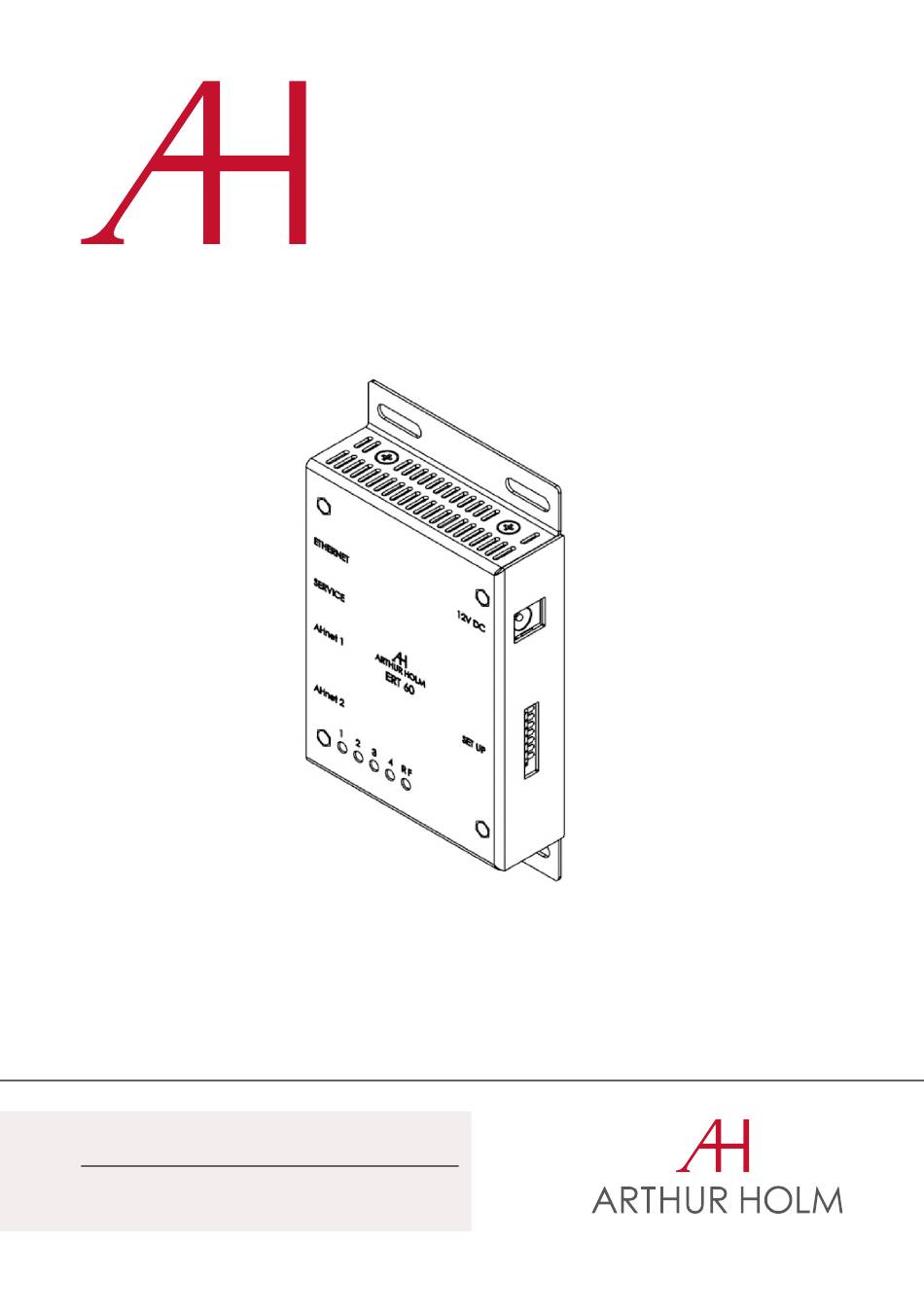

- Page 1 User Guide IP to RS422/RS485 interface control Technology Serving Design Danish craftmanship Mediterranean soul...
-
Page 2: Table Of Contents
TABLE OF CONTENTS REGULATIONS AND SECURITY SAFETY INSTRUCTIONS SYSTEM DESCRIPTION CONTROL AND CONNECTORS SYSTEM CONFIGURATION AHnet ADDRESS CONFIGURATION AHnet PROTOCOL INFORMATION ON DISPOSAL WARRANTY TERMS AND CONDITIONS... - Page 3 WELCOME Thank you for purchasing an ARTHUR HOLM product. Please, read this installation and operating instructions carefully and keep them in a safe place for future reference. We remain at your entire disposal if you have any suggestions. Henrik Holm General Manager hholm@albiral.com...
- Page 4 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, the design force behind Arthur Holm product range. The result of...
-
Page 5: Regulations And Security
REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 6 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
- Page 7 SAFETY INSTRUCTIONS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 8: System Description
Easy to install and set-up, they facilitate a quicker installation and eliminate the need of external relay boxes and extra power outlets. It is also possible to have Arthur Holm’s virtual support on site as long as there is an Internet connection available. - Page 9 SYSTEM DESCRIPTION Available Models MODEL DESCRIPTION IP to RS-422 interface to control, configure and diagnose ARTHUR HOLM motorised products. 1 AHnet port (RS422/ RS485) to control up to 30 units. Ethernet RJ45. OTAS ERT-30 (One Touch Addressing System). Remote/local control and management.
-
Page 10: Control And Connectors
CONTROL AND CONNECTORS 12V D.C.: Power input connector. Plug the power supply supplied. SETUP: Eight deep switches to control and setup the unit. DIP1: Activates the radio signal to control the unitP using AHlink APPMMMMMMMMMMMMMMMMML DIP2:JActivates automatic AHnet HHHHHHHHHHHHHconfiguration on the RS422 bus DIP3: Not used DIP4: Activates the firmware upgrade DIP5: Not used... - Page 11 Note: ERT-30 has only one AHNet RS422 port connector. With and ERT-30 you can control up to 30 devices, and with an ERT-60, you can control up to 60 devices using the two AHNet port connectors (30 devices connected on each port).
- Page 12 LED4: Change the state when the unit send an AHnet command when the automatic AHnet ID configuration is activated (DIP2). The ERT interface sends commands to the units connected on AHnet1 and AHnet2 to automatic configure the AHnet ID on each unit.
-
Page 13: System Configuration
AHnet commands to the ERT interface, and the ERT sends the AHnet commands to the units by the RS422 ports. You can connect up to 60 units to the ERT using the two RS422 RJ45 buses (30 units on each bus). Please, follow the respective user manual to configure the AHnet address on each unit and to connect the unit to the RS422 bus. - Page 14 SYSTEM CONFIGURATION To configure the ERT IP address, do you need to download the AHlink APP. First, do you need to activate the radio signal. Activate DIP1 on SETTINGS device, and power the ERT unit. To control and configure the unit using AHlink APP, download “AHLink”...
- Page 15 SYSTEM CONFIGURATION name always begins by “ERT” characters and the fourth last MAC radio address. Select device control configure the unit. Selecting the device, the first page is upload on the mobile phone. This page is used to check the device. When the mobile APP is connected to the unit the RF LED will bright.
- Page 16 AHnet RS422 BUS IP ADDRESS: Shows the actual ERT IP address. Note that if the DIP6 is active, the unit is configured with the factory IP and this IP...
- Page 17 SYSTEM CONFIGURATION Network configuration Change the network configuration and press “NETWORK INI” button to update the new network settings...
-
Page 18: Ahnet Address Configuration
AHnet address to individually send commands. Installing the unit (monitor, microphone or other device), do you need to configure a different AHnet address on each unit. The ERT has a utility that helps the assignation of the AHnet address task. - Page 19 AHnet ADDRESS CONFIGURATION...
-
Page 20: Ahnet Protocol
AHnet PROTOCOL AHnet protocol Uses 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 BYTE 0 is the header and should always FA in HEX mode BYTE 1 is the unit AHnet address to send the command. - Page 21 AHnet PROTOCOL Dynamic2 family COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00 FA XX 02 01 00 SCREEN ON FB XX 02 01 00 FA XX 02 00 00 SCREEN OFF FB XX 02 00 00...
- Page 22 AHnet PROTOCOL Dynamic3 family COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN CLOSED FB XX 01 00 00 FA XX 01 02 00 GO DOWN SCREEN UP FB XX 01 02 00 FA XX 02 01 00 SCREEN ON...
- Page 23 AHnet PROTOCOL DynamicTalk COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 GO UP FB XX 01 01 00 FA XX 01 00 00 GO DOWN FB XX 01 00 00 FA XX 02 01 00 MUTE (PA) FB XX 02 01 00 FA XX 02 00 00 TALK (PA) FB XX 02 00 00...
-
Page 24: Information On Disposal
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis. -
Page 25: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. Electrical, electronic boards, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase Labour costs: Albiral Display Solutions covers the labour costs to... - Page 26 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2020. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm...
- Page 27 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
