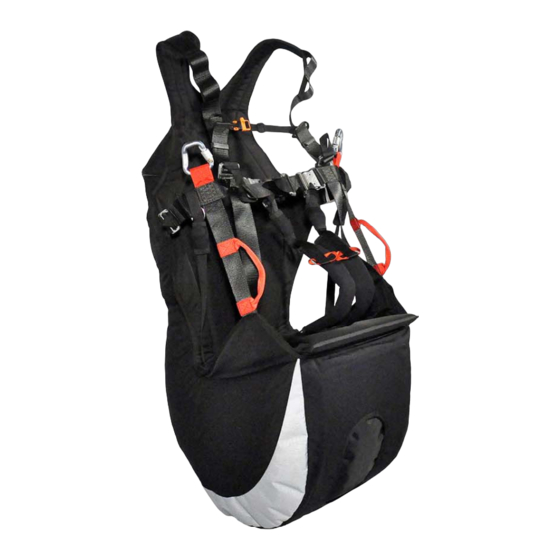

Woody Valley Passenger Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Please read this manual before flying with the PASSENGER for the
first time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Passenger and is the answer not in the manual?

Questions and answers

Related Manuals for Woody Valley Passenger

Summary of Contents for Woody Valley Passenger

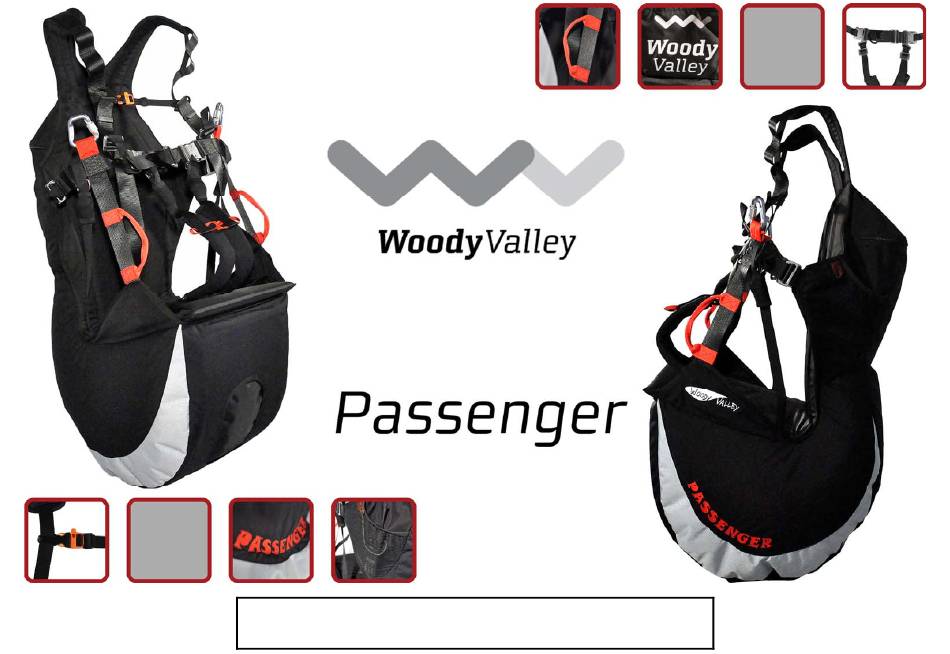

  • Page 1 Please read this manual before flying with the PASSENGER for the first time.
  • Page 2 Adjusting the harness. The harness forms the connection between the pilot and the passenger, and it is an essential component in optimizing the passenger’s pleasure during flight. We are conscious of the fact that reading an instruction manual is not an exciting experience. However, please remember that the respective product is not a citrus juicer or a mobile phone, and that correct use of the harness helps reduce the risk of flying accidents.

  • Page 3: Table Of Contents

    ARNESS ADJUSTMENT 2.1.1- Adjusting the sitting position ..............................................3 2.1.2- Back position adjustment................................................4 2.1.3- Shoulder-strap adjustment ...............................................4 2.1.4- Chest strap adjustment ................................................5 2.1.5- Leg strap adjustment ..................................................5 3- FLYING WITH THE PASSENGER HARNESS....................................... 6 3.1- P ....................................................6 FLIGHT CHECKS 3.2- P ........................................................6 OCKETS 3.3- F...

  • Page 4: 1- General Information

    Chest-straps and leg-straps are fitted with the “GET-UP safety system” to prevent the passenger from sliding out of the harness in the case that the pilot has...

  • Page 5: Passenger Comfort

    The airbag protection system is also covered with reinforced fabric which helps reduce damage caused by any abrasion to which the harness may be subjected. 1.3- Passenger comfort The two red handles on the main harness straps make it simple and obvious even for the most inexperienced passengers to adopt the correct position in flight...

  • Page 6: 2- Before Using The Harness

    The PASSENGER harness provides many adjustment possibilities ensuring that the passenger flies in the best possible position. To adjust the harness to the best possible position, we suggest that the passenger hangs in the harness from a suitable point of support, simulating flying position and conditions.

  • Page 7: 2- Back Position Adjustment

    2.1.2- Back position adjustment By adjusting the back (using the trimmers higher up on the side), the pilot adjusts the inclination of the torso with respect to the vertical axis in flight. A good flying position, improving control of the glider, is obtained by positioning the face at about 15 cm from an imaginary line between the two karabiners. 2.1.3- Shoulder-strap adjustment Shoulder-strap adjustment enables the harness to be adjusted to the pilot’s height.

  • Page 8: 4- Chest Strap Adjustment

    2.1.5- Leg strap adjustment The fact that the leg straps are attached to the harness relatively high up ensures great freedom of movement for the passenger’s legs. PASSENGER is fitted with an adjustment buckle that is easy to adjust in accordance with the passenger’s body shape.

  • Page 9: 3- Flying With The Passenger Harness

    3.2- Pockets PASSENGER has a large dorsal storage compartment and small lateral pockets, arranged so that contents cannot fall out during flight even if pockets are left open. The top of the dorsal compartment has a Velcro cover, so that the pilot can use it can as an instrument compartment.

  • Page 10: Flying Above Water

    3.3- Flying above water It is inadvisable to use the PASSENGER harness on flights over water. In the event of the pilot being forced to land on the water, the airbag, which is filled with air, may force the harness into a position that holds the pilot underwater.

  • Page 11: 5- Maintenance And Repair

    Zip fasteners should be kept clean and lubricated with silicone spray. In the case of making any request to an official retailer or Woody Valley for maintenance operations, please quote the complete identification number shown on the silver label in the rear pocket.

  • Page 12: 6- Technical Data

    One size cm 46 Distance between karabiners (min. max.) One size cm 40/51 Size of wooden seat, one size Width 36 cm; depth. 37 cm Total weight of PASSENGER, complete with karabiners 3,20 kg Type of protection AIRBAG protection Type of straps...

  • Page 13: 7- Certificate Of Approval

    This owner's manual is subject to change without prior notice. Please check at www.woodyvalley.com for the latest information regarding the PASSENGER harness. Latest update: APRIL 2010...
