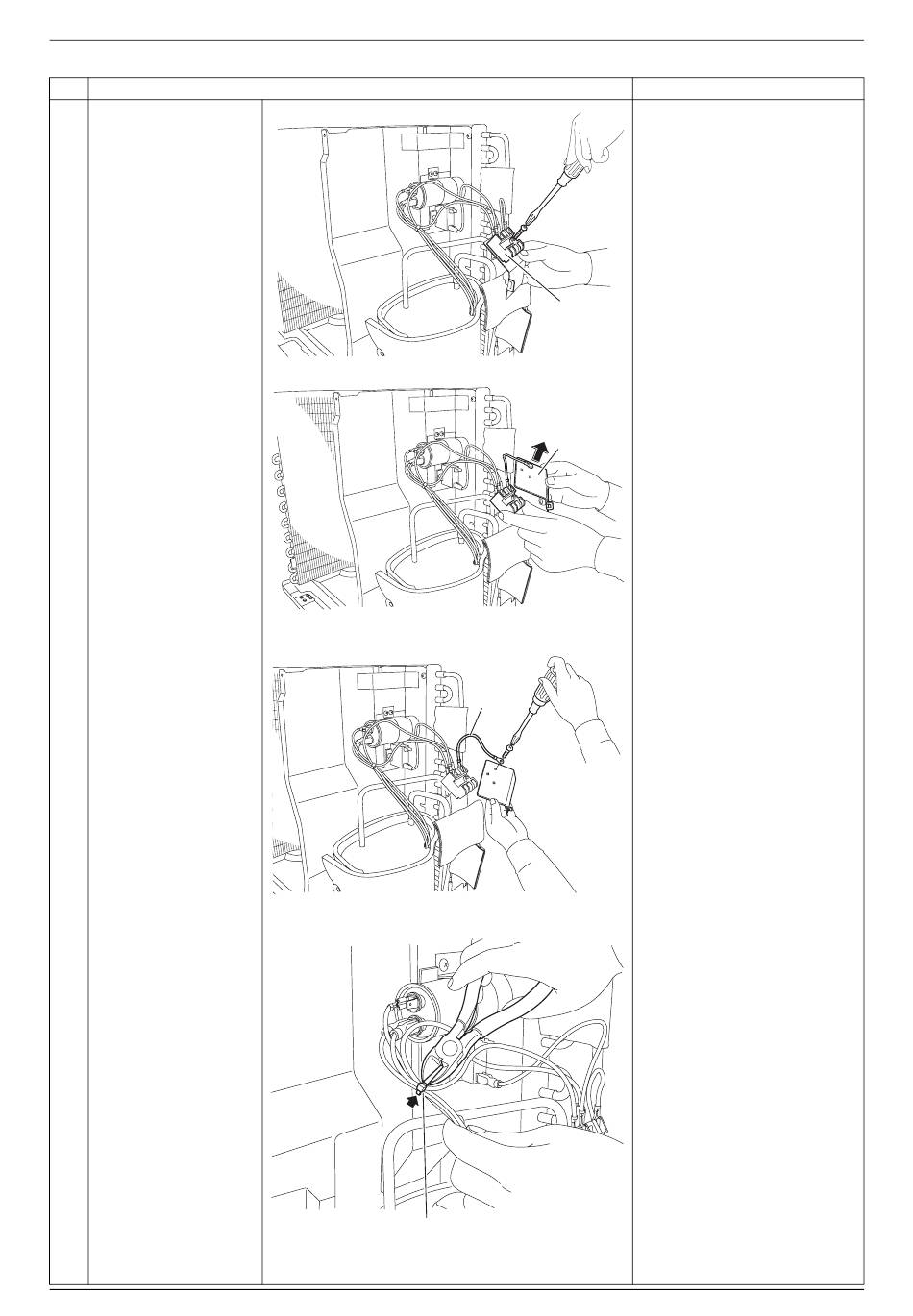

Step
8 Remove the screw of
the terminal board.
9 Detach the fixing plate.
Remove the screw of
10
the earth wire.
Cut the clamp.
11
Removal Procedure
Procedure
Earth
wire
Clamp
Removal of Electrical Components
Terminal board
(R15210)
Fixing plate
(R15211)
(R17148)
(R15213)
