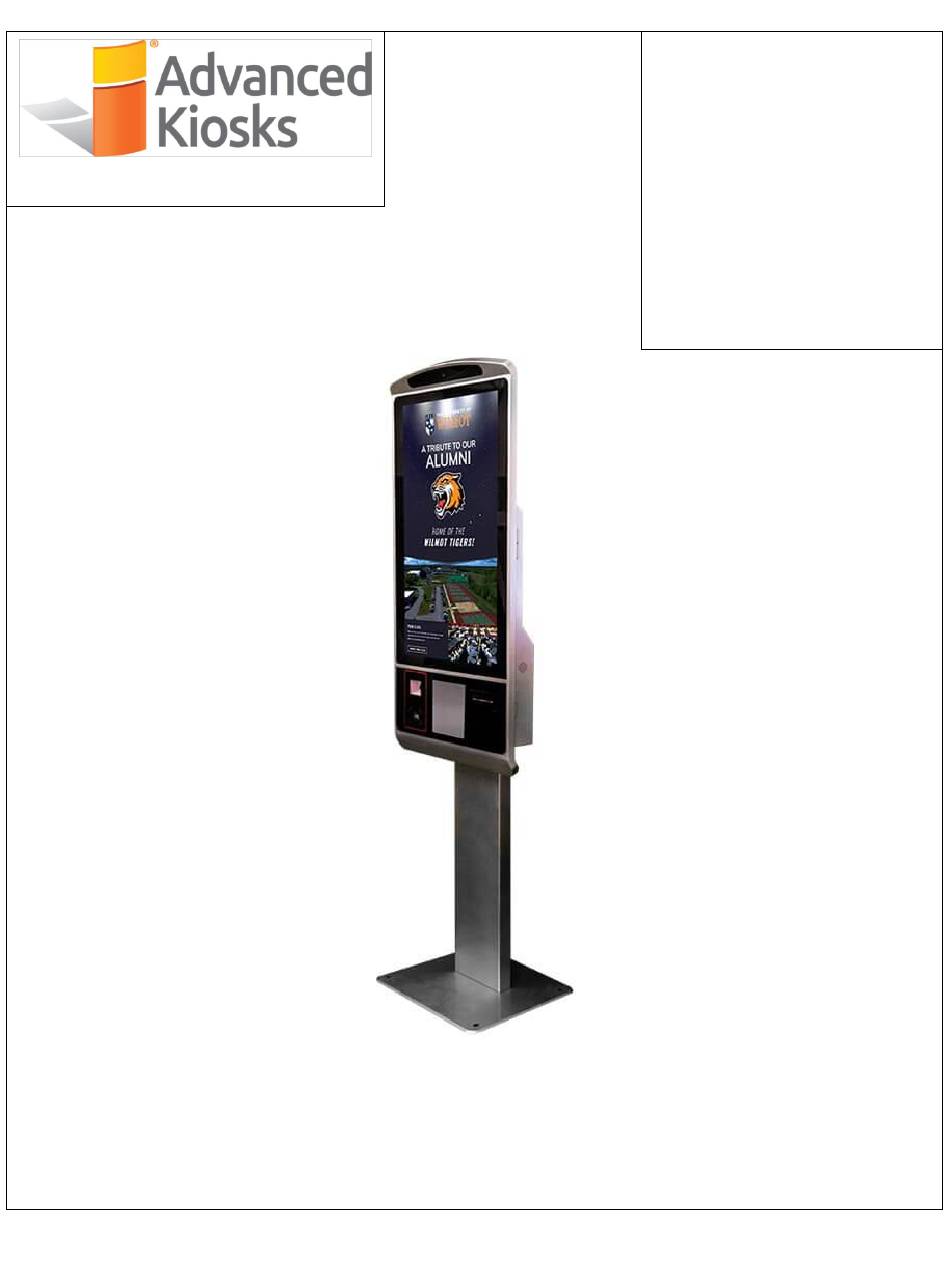

- Page 1 Important: Read this whole manual before assembling Owners Manual for Engage Interact Satisfy Multipurpose Kiosk with Wi-Fi, Camera, QR Reader, NFC, and Printer. AK-MP-OM-11/14/2019...
-
Page 2: Table Of Contents
............................. 18 LEANING AND AINTENANCE Touch Screen ..................................18 Painted Enclosure Cleaning and Maintenance ........................ 18 WARRANTY ................................... 19 ....................................19 OLICY Limited Warranty ................................19 Returned Item ................................... 19 Shipping ................................... 19 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 3: Introduction
• Do not use kiosk with an extension cord that does not have grounding. • The Multipurpose Kiosk has been designed for indoor use only. Outdoor use to the Multipurpose kiosk may result in damage to the kiosk, or injury to persons. -
Page 4: Our Support
Our Support The Multipurpose Kiosk is a reasonably priced, high quality kiosk. We are happy to help you with any problems after you have read the manuals to learn about this product. Advanced Kiosks will support you in ownership as long as you own your kiosk, within reason. Selling or giving it to another company or person will void any and all support and warranty. -
Page 5: Installation
Floor Mounting The Multipurpose Kiosk is designed to be free-standing with the attached base and stand. If you are in high traffic areas though, the kiosk should be mounted to the floor through the 4 holes on the corners of the base. -
Page 6: Wall Mounting
We recommend mounting the top 2 holes at a height of 54 inches off the ground. The bottom 2 holes are 4 ¼” below those. Anchor Hold Sizes in Different Wall Materials Provided Wall Mount on Table 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... - Page 7 Mounting Tabs Mounting Holes 4 Mounting Holes on the Stand, and the 4 Tabs 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
- Page 8 DISCLAIMER: We did not mount the kiosk to the wall for clarity of the mounting assembly. Showing How the Brackets Fit Together Brackets Screwed Together for a Secure Fit to the Wall 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
-
Page 9: Setup And Operation
The first time that the Kiosk is plugged in, and the power button is pushed, the monitor should automatically turn on. The power button and the other ports are located behind the bottom of the monitor. 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... - Page 10 + Sound Ports Power button Power Button and Other Ports The kiosk can be opened from the side with the use of a key that will be provided. Lock for Closing Kiosk 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
-
Page 11: Back Up Your Information
Computers aren't perfect. Files become corrupt, motherboards malfunction, electrical storms strike, and CPUs call it quits taking our precious data with them. Advanced Kiosks cannot recover your data. If a replacement, or repaired kiosk is required it will be shipped setup with our standard format. -
Page 12: Peripherals
Printer with Printer Door Closed Printer with Door Open and Paper Exposed Near Field Communication Reader An NFC Reader is integrated into this kiosk and will be usable upon startup if needed. NFC Reader 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 13: Integrated Camera
Integrated Camera In the top of the monitor enclosure, there is an integrated camera. It will be configured and usable upon startup. Camera The Monitor with the Camera at the Top 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 14: Specifications
TFT LCD with LED backlight Native (Optimal) Resolution 1920 x 1080 Brightness 350 nits Response Time 6.5 msec Viewing Angle Horizontal: 178° total Vertical: 178° total Contrast 4000:1 Contrast ratio (Typical) Power Supply 12VDC 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 15: Power Requirements
2.0 A 50 / 60 Hz Supply Monitor 12 Vdc 4.16 A Monitor Power 100 - 240 Vac 1.5 A 50 / 60 Hz Supply Speaker 5 Vdc 500 mA General Dimensional Information 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 16: Equipment Manuals
Equipment Manuals The documentation included with the Multipurpose Kiosk’s components has been included with your kiosk. Drivers and other product manuals are located on your computer here: Start Menu>Documents>Kiosk Files Please keep these in a safe place. It is recommended that all serial numbers are also written down. -
Page 17: Solving Problems
Drivers can be accessed at our website by completely filling out the Technical Support Form. See our support section for our knowledge base and our support ticket creator. 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 18: Maintenance Of Kiosk
Use a mixture of warm water and dish soap to gently clean the outside of the enclosure. Use a soft cloth and avoid excess scrubbing. DO NOT wipe down any electronics (keyboard, credit card reader, etc) with a wet solution. 11/14/2019 Multipurpose Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 19: Warranty
All items shipped to us must have a tracking number and the RMA # on the outside of the box. Advanced Kiosks is not responsible for lost packages. Items that are damaged due to poor packaging will void the warranty.
