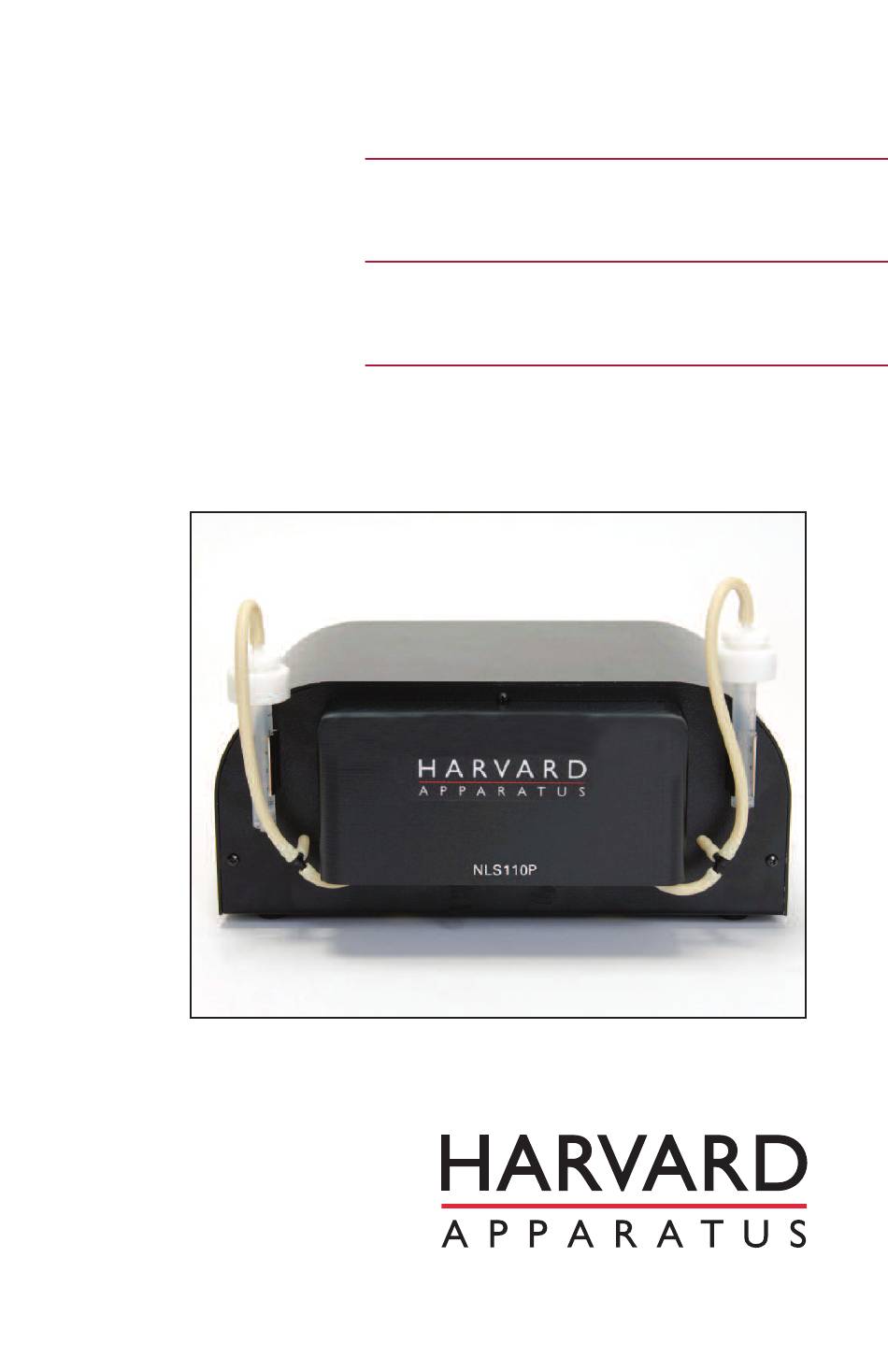

- Page 1 ™ Nanoleader Pump Series NLS110P Pressure Pump User’s Manual NLS110P Pressure Pump MA1 70-5000 Publication 5422-001-REV-A...
- Page 2 WEEE/RoHS Compliance Statement EU Directives WEEE and RoHS To Our Valued Customers: We are committed to being a good corporate citizen. As part of that commitment, we strive to maintain an environmentally conscious manufacturing operation. The European Union (EU) has enacted two Directives, the first on product recycling (Waste Electrical and Electronic Equipment, WEEE) and the second limiting the use of certain substances (Restriction on the use of Hazardous Substances, RoHS).
-
Page 3: Table Of Contents
Table of Contents SUBJECT PAGE NO. General Information - Warranty and Repairs ..2 Specifications ............3 Introduction ............4 Hardware Overview..........5 NLS110P - How it Works........6 Operation: Getting Started........7 Do’s and Don’ts ............8 Troubleshooting ............9 Software/Hardware Installation ....10-16 Software/Hardware Operation ......17-20 www.harvardapparatus.com... -
Page 4: General Information - Warranty And Repairs
Warranty Harvard Apparatus warranties this instrument for a period of two years from date of purchase.At its option, Harvard Apparatus will repair or replace the unit if it is found to be defective as to workmanship or material. This warranty does not extend to damage resulting from misuse, neglect or abuse, nor- mal wear and tear, or accident. -
Page 5: Specifications
Specifications Specifications Accuracy +/- 0.05 psi Reproducibility +/- 0.1% over the operating range Resolution +/- 0.01 psi Type Dual channel pressure pump Pressure +15 psi to -15 psi Flow Rate Calibrated from experimental data Reservoir Column Variable; comes standard with 1cc Serial Port Outputs Time (ms) and psi... -
Page 6: Introduction
Introduction The Nanoleader Pump Series NLS110P Pressure Pump is a revolutionary new approach to achieving a new level of pulseless, precise and accurate low flow utilizing constant pressure technology.This new approach results in virtually pulse- less flows making experimentation like bubble formation or reproducible flows in multi-channels possible.This patented pressure monitoring system assures you the highest quality, low flow characteristics. -
Page 7: Hardware Overview
Introduction Hardware Overview Reservoir Head and Column FRONT Pressure Regulating To Pressure Pump Heads Sensor Pump 1 Pump 2 Fan Side Open to Atmosphere Power Switch BACK Power Input Jack* * Power Supply Input: 100-240 Vac, 50/60 HZ Power Supply Input: 24 Vdc, 1.7A, 40W www.harvardapparatus.com... -
Page 8: Nls110P - How It Works
Introduction NLS110P - How it Works High Performance, Low Flow Pressure Control Flow System, Harvard Apparatus NLS110P NLS110P - How It Works: 1. Pump generates a pressurizing flow of air 2. Pulse of air is compressible and dampened 3. Liquid reservoir is pressurized 4. -
Page 9: Operation: Getting Started
Operation: Getting Started Power ttachment Using the provided line cord and power supply, attach the instrument to 110 VAC or 220 VAC. Tubing Connections Install tubing as shown in Figure 1. Leave one side open and attach the output port to the provided liquid reservoir or to the input of the system to be controlled. What’s Included The pump comes standard with 10 feet of 1/16"... -
Page 10: Do's And Don'ts
Do’s and Dont’s Begin with a slightly positive pressure target when connecting to an external fluid reservoir without a filter, to ensure that liquid is not sucked into the sensor. Press the “STOP” button in the application before closing the applica- tion, turning off power to the pump, or unplugging the USB cable. -
Page 11: Troubleshooting
Troubleshooting PROBLEM: The pump will not stop spinning when set to a non-zero target pressure. - There is a leak in the air pressure chamber. - Tighten your connectors, and/or tighten the clamp arm of the peristaltic pump. PROBLEM: The MEASURED output is abnormal, even when all tubes are disconnected. -
Page 12: Software/Hardware Installation
Hardware/Software Installation PC Install Instructions 1. Insert CD to CD/DVD drive 2. The CD content should show on the display or you can run it manually by click- ing on my computer then navigate the CD drive usually drive D. 3. - Page 13 Hardware/Software Installation (Cont) 7. Choose accept, then click next 8. Choose accept, then click next www.harvardapparatus.com...
- Page 14 Hardware/Software Installation (Cont) 9. Start Installation by clicking next 10. All necessary files will be installed 11. Wait for the installer to finish building Publication 5422-001-REV-A...
- Page 15 Hardware/Software Installation (Cont) 12. After the installer has finished building, click finish 13. After installing it will ask you to restart the PC (restart) www.harvardapparatus.com...
- Page 16 Hardware/Software Installation (Cont) 14. After the machine restarts, shut the pump off 15. Connect the USB cable as follows: mini B terminal to the back of the pump and the A terminal to the USB terminal on the PC 16. Connect the power adaptor to the DC input jack on the back of the pump 17.Turn on the power switch on the back of the pump 18.The PC should recognize that there is a new hardware installed 19.
- Page 17 Hardware/Software Installation (Cont) 21. Browse to the main folder that was copied from the CD or browse the CD then click next 22. Click continue anyway www.harvardapparatus.com...
- Page 18 Hardware/Software Installation (Cont) 23.When its done click finish 24. Repeat the found hardware installation for the second pump-head 25. Open USBAPP.EXE, which can be found in the main folder or by navigating through the CD 26. Click on Application .exe 27.The application window should appear 28.
-
Page 19: Software/Hardware Operation
Software/Hardware Operation 1. Click the RUN arrow on the top left of the screen (underneath “Edit”) 2.The graph on the right should show lines on the 0 amplitude after a few seconds www.harvardapparatus.com... - Page 20 Software/Hardware Operation (Cont) 3. Select Set Pressure tab (If calibration is needed, skip to step 5 first) 4. On the PSI target choose the desired pressure for each channel 5. Calibration: for each pump head choose the appropriate calibration (ex. Calibration #1) tab and enter in the calibration values provided.
- Page 21 Software/Hardware Operation (Cont) 6. Script Files: Under the “Script” tab you can choose to read a script file, select a destination for the output text file, and set a sampling rate.An example of a script file and its corresponding output is provided on the CD www.harvardapparatus.com...
- Page 22 Software/Hardware Operation (Cont) 7. Flow Rate Calculator: The flow rate calculator provided in the application is designed to give you an approximation of your current flow rate. By entering in the inner diameter of your tubing, the length of your tubing, and the viscosity of your fluid, the resistance calculator will calculate your resistance.Then, after selecting what is at each end of your tubing, you can enter in the resistance cal- culated into the “Hydraulic Resistance”...
