VALVE POSITIONER
INSTALLATION AND OPERATION MANUAL
Tech-440
IOM:
Prepared By:
M. Twardowski
Reviewed By: C. Irwin
This IOM contains confidential information and is issued in confidence on the condition that it be returned on demand and not be copied,
reproduced, disclosed to others or used in manufacture of the subject matter thereof without the written consent of Crane Co.
280 N. MIDLAND AVE., STE 258, SADDLE BROOK, NJ 07663 WWW.AVIDCONTROLS.COM
12/17/12

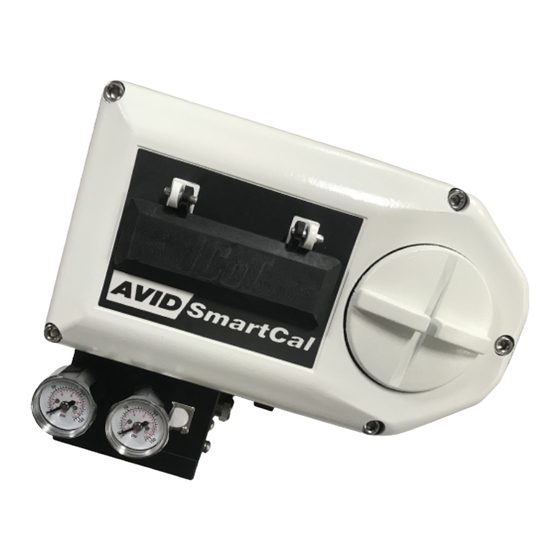

SMARTCAL
Revision: A
Date:
Drafting Work Order:
12/17/12
23135
Date: 3/14/18
Approved By: T. Paolini
CRANE CO.
TECH-440/D.W.O. 23135
ECN:
13247
Date:10/18/18
Page 1 of 55
