Kit 72000
Wireless Digital
Controller User Guide
User GUide
For maximum effectiveness and safety,
please read these instructions completely
before proceeding with installation.
Failure to read these instructions can result in an
incorrect installation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WirelessAIR 72000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Air Lift WirelessAIR 72000

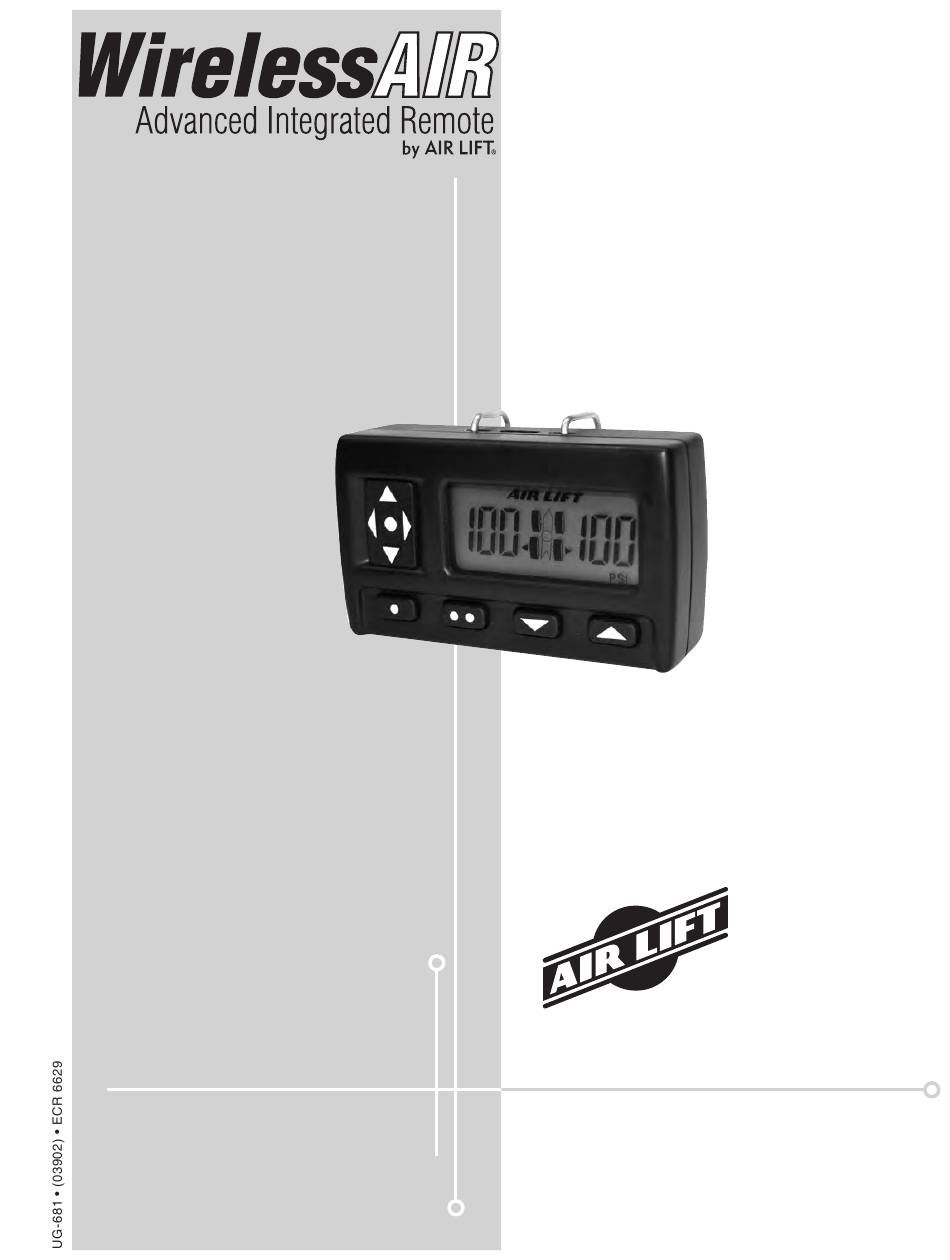

  • Page 1 Kit 72000 Wireless Digital Controller User Guide User GUide For maximum effectiveness and safety, please read these instructions completely before proceeding with installation. Failure to read these instructions can result in an incorrect installation.
  • Page 3: Table Of Contents

    TABLe OF CONTeNTs Important: Avoiding Cold Weather Freeze-up . . . . . . . . . . . 4 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Operating the WirelessAIR Control System .
  • Page 4 WirelessAir How to Avoid a Freezing Condition in 72000 Wireless Air Kits Important To avoid COLD WEATHER FREEZE UP: Add 4 oz . (1/2 cup) of “GUNK” Brand AIR BRAKE ANTI FREEZE Directly into each flex member. Remove the air line and/or fitting from the air bag and fill directly.
  • Page 5: Introduction

    It is important to read and understand the entire user guide before beginning to operate your WirelessAIR system. Air Lift Company reserves the right to make changes and improvements to its products and publications at any time. Contact Air Lift Company at (800) 248-0892 for the latest version of this user guide or find it online at http://www.airliftcompany.com/wirelessair.htm.
  • Page 6: Wdc Operating Modes

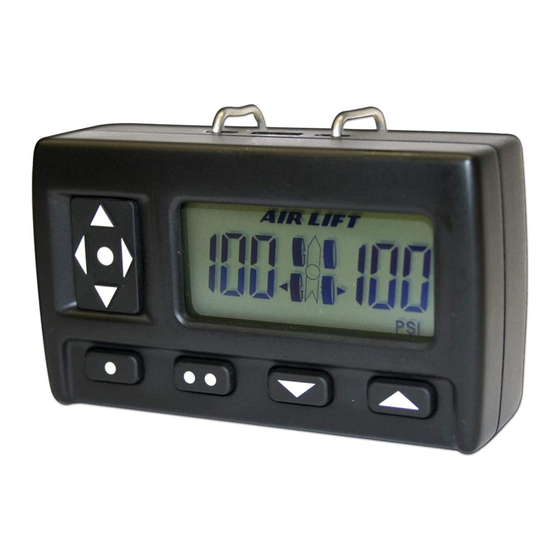

    In Sleep Mode, the WDC enters a very low-power state. The radio and backlights are shut off, and the display shows the Air Lift logo, the compressor bar outline, and “- -“ in the left and right digits. Before entering Sleep Mode, the WDC checks the battery condition and displays the battery icon if the battery voltage is low.
  • Page 7 WirelessAir The TIRE ARROWS indicate which pressure settings (left, right or both) will be adjusted. The numeric displays initially indicate the last setting sent to the currently selected manifold. If there is no activity for 10 seconds, the WDC will return to Sleep Mode. The WDC responds to the switches as follows: Press and release to increase the selected pressure settings by 1 PSI.
  • Page 8: Sending New Settings

    WirelessAir To store the current pressure settings as the new preset #2, press and P1/P2 hold P2 until the display shows “Str” (fig. 6). Release P2 and the display continued will show “Str2” to indicate the settings have been stored to preset #2 (fig.
  • Page 9: Manifold Operation

    12 replacement information If you need replacement parts, contact the local dealer or call Air Lift customer service at (800) 248-0892. Most parts are immediately available and can be shipped the same day. Contact Air Lift Company customer service at (800) 248-0892 first if: •...
  • Page 12 Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or PO Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 • Local (517) 322-2144 • Fax (517) 322-0240 • www.airliftcompany.com...
