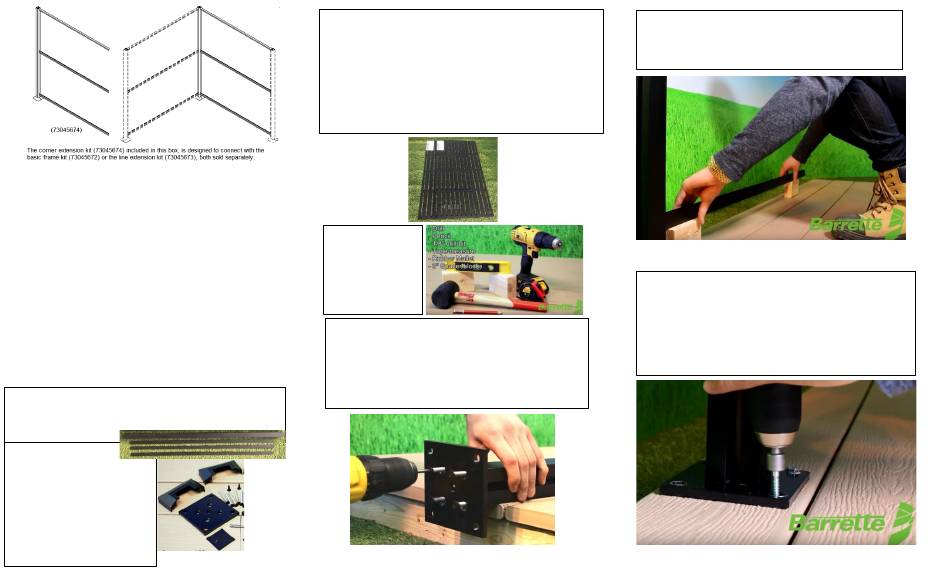

Barrette 73045674 Assembly Instructions

3x6' DECORATIVE SCREEN PANEL CORNER EXTENSION
FRAME KIT ASSEMBLY INSTRUCTIONS
Warning
• Read all instructions before installing the product.
• When using tools, refer to the manufacturer's safety instructions.
• Make sure the posts will be held in place by a sturdy structure and
reinforce the surface it stands on as necessary.
• Improper product installation can cause injury. Always wear safety
glasses when cutting, drilling and assembling the product.
• Improper installation may cause product damage or injury to the
person performing the installation.
• Check the local building code to determine if the product meets the
pool fencing requirements.
NOTE
• DO NOT assemble the product if there are missing or damaged parts.
• DO NOT return the product to the store. For help or replacement
parts, call 1-800-336-2383.
Before You Begin: This product is intended for decorative use only.
It is the responsibility of the installer to meet and/or exceed all
code and safety requirements and to obtain required building code
permits as necessary.
Kit contains:
- (1) 2" Aluminum Corner Post
- (2) Top/Bottom U-Channels (Rail)
- (1) Mid H-Channel (Rail)
- Surface Mount Kit
- (1) Post Cap
- Hardware (Screw kit)
- #2 square drive drill bit
- #3 Phillips drive drill bit
- 1/8" Metal Drill Bit
Required, Sold Separately:
- (2) 3x6 Decorative Screen Panels
- 3/8" Bolts/Screws for mounting base plates to a structure
Sold Separately:
- 3x6' Decorative screen Panel Frame Kit #73045672
- Line Post Extension Kits #73045673
This is not a complete set, but only an extension. In order to have a
complete structure, you must first buy the 3x6' panels Frame kit
#73045672. Then, you can add the desired number of extension
kits.
Tools Needed:
- Drill
- Pencil
- Tape Measure
- Rubber Mallet
- 3" Spacer Blocks
- 1/8" Metal Drill Bit
Step 1
Install base plates to bottom of posts. Locate bottom post with
pre-tapped holes and attach the bottom plate to that end.
Using only the #3 Phillips drive drill bit provided in surface
mount kit, screw base plate to bottom of post through the 4
screw bosses. Drill should be set to low speed when securing
plates to post.
Step 2
Place two 3" spacer blocks to support bottom rail. Take bottom
rail and insert into channel or first post, resting on the 3" spacer
blocks. Note: This step is to set distance in between posts.
Step 3
Take post and insert opposite side of bottom rail into the channel
of this post. Be sure rail is fully inserted into the post. Set post in
desired location. Ensure mounting surface has proper structure to
hold post before fastening in place. Use the post assembly to mark
the holes for the surface mounting plate. Mark and drill holes for
appropriate 3/8" fasteners (fasteners will vary depending on
mounting surface).
