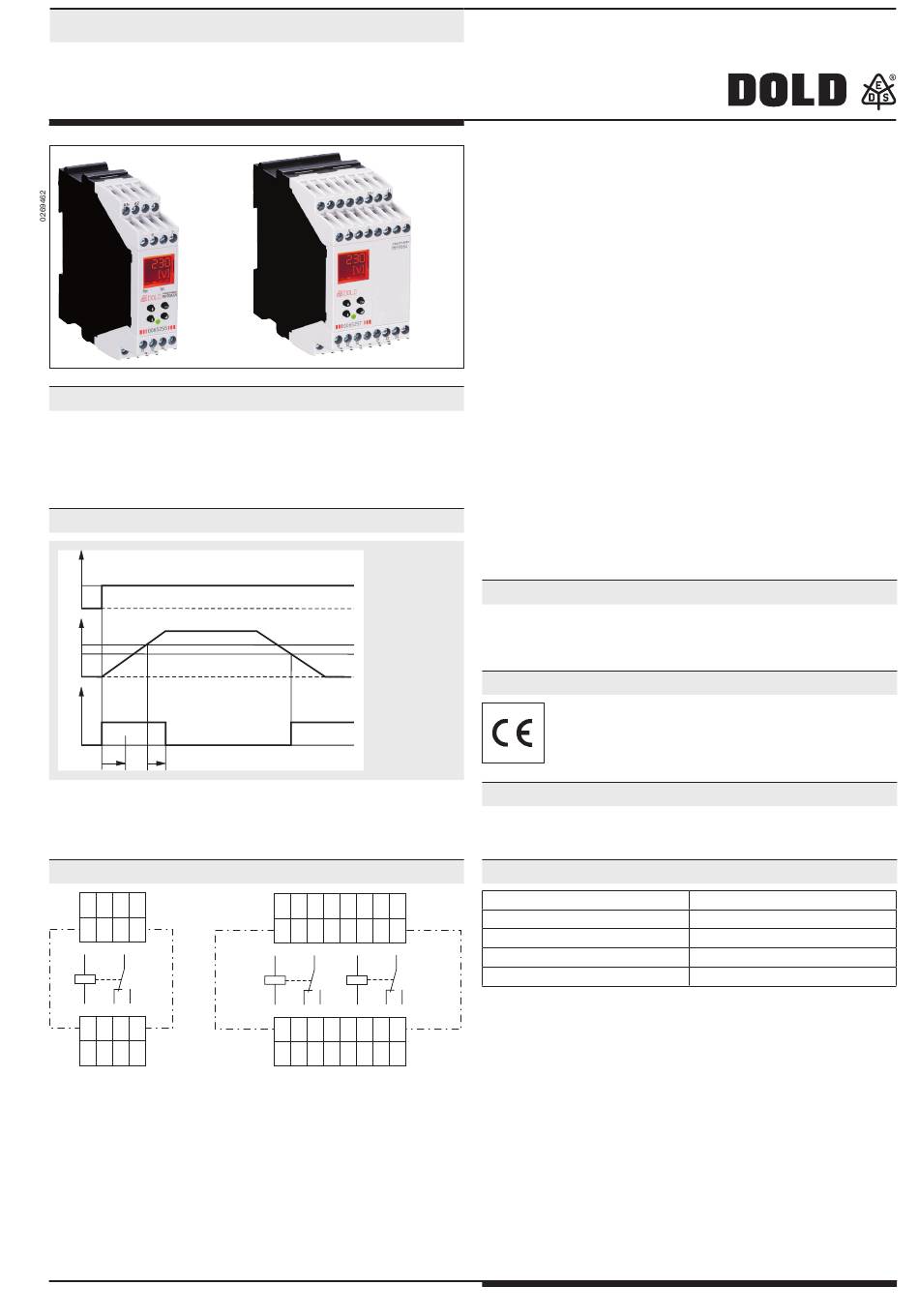

DOLD VARIMETER MK 9064N Monitoring Technique

Monitoring technique
VARIMETER
Voltage relay
MK 9064N, MH 9064
MK 9064N

Product Description

The voltage relays MK 9064N and MH 9064 of the varimeter family pro-
vide a solution for an optimised monitoring of the function of an electrical
device. Single-phase AC and also DC can be measured, undervoltage,
overvoltage and voltage window are monitored and the measured value
is displayed on the front.
Function Diagram
U
H
U
>U
Hyst
11
14
t t
a v
Example: Overvoltage monitoring with closed circuit operation
Circuit Diagrams
A1
A2
+
e
f
11
12 14
14
11 12
M10848
MK 9064N.11 MH 9064.12
All technical data in this list relate to the state at the moment of edition. We reserve the right for
technical improvements and changes at any time.

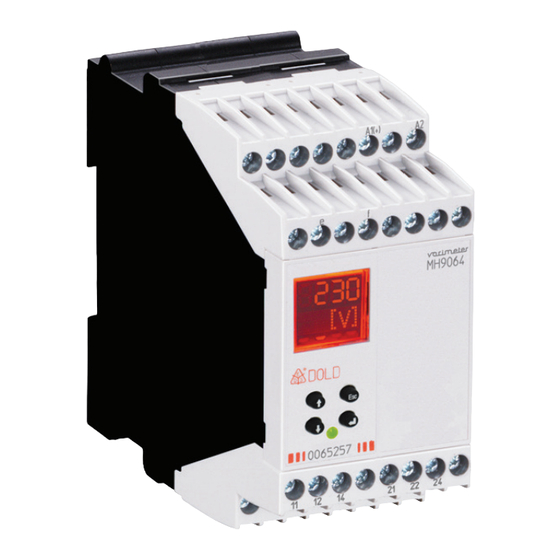

MH 9064
t
t
t
M10858
A1 A2
e
f
11 21
12 14 22 24
14
11 12 21 22 24
M10849
Translation
of the original instructions

Your Advantages

• Preventive maintenance
• For better productivity
• Quicker fault locating
• Precise and reliable
• Min-, Max. value or window monitoring
• Measuring range up to AC/DC 600 V
• Large measuring ranges
• Simple configuration and fault diagnostic
• Auxiliary voltage ranges DC 24 V, AC 230 V, AC/DC 24 ... 230 V or
AC/DC 110 ... 400 V

Features

• According to IEC/EN 60255-1
• AC/DC voltage measuring (single-phase)
• Start up delay, on delay
• Manual reset
• LCD for indication of the measuring values
• Relay output
MK 9064N: 1 changeover contact
MH 9064: 2 x 1 changeover contacts
• Relay function selectable (energized/de-energized on trip)
• As option with plugable terminal blocks for easy exchange of devices
- With screw terminals
- Or with cage clamp terminals
• Width MK 9064N: 22.5 mm
• Width MH 9064: 45.0 mm
More Information
• MH 9064
The MH 9064 has 2 relay outputs.
The voltage monitoring can be assigned ro relay 1 and /or relay 2
Approvals and Markings
Applications
• Voltage monitoring AC/DC single-phase
• Voltage dependent switching at under- or overvoltage
Connection Terminals
Terminal designation
A1(+), A2
e, f
11,12,14
21, 22, 24
1
Signal description
Auxiliary voltage AC or DC
Voltage measuring input AC, DC
Indicator relay (C/O contact)
Indicator relay (C/O contact)
11.01.21 en / 335A
