Swiftpoint PROPOINT Quick Start Manual

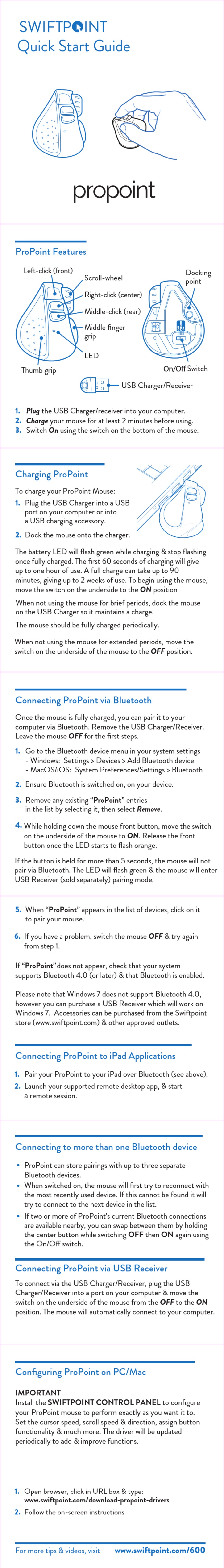

Quick Start Guide

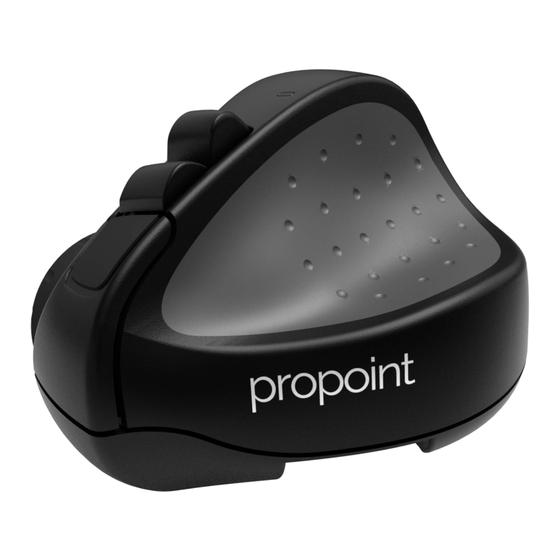

ProPoint Features

Left-click (front)
Thumb grip
1. Plug the USB Charger/receiver into your computer.
2. Charge your mouse for at least 2 minutes before using.
3. Switch On using the switch on the bottom of the mouse.

Charging ProPoint

To charge your ProPoint Mouse:
1.
Plug the USB Charger into a USB
port on your computer or into
a USB charging accessory.
2. Dock the mouse onto the charger.
The battery LED will flash green while charging & stop flashing
once fully charged. The first 60 seconds of charging will give
up to one hour of use. A full charge can take up to 90
minutes, giving up to 2 weeks of use. To begin using the mouse,
move the switch on the underside to the ON position
When not using the mouse for brief periods, dock the mouse
on the USB Charger so it maintains a charge.
The mouse should be fully charged periodically.
When not using the mouse for extended periods, move the
switch on the underside of the mouse to the OFF position.

Connecting ProPoint via Bluetooth

Once the mouse is fully charged, you can pair it to your
computer via Bluetooth. Remove the USB Charger/Receiver.
Leave the mouse OFF for the first steps.
1.
Go to the Bluetooth device menu in your system settings
- Windows: Settings > Devices > Add Bluetooth device
- MacOS/iOS: System Preferences/Settings > Bluetooth
2. Ensure Bluetooth is switched on, on your device.
3.
Remove any existing "ProPoint" entries
in the list by selecting it, then select Remove.
4.
While holding down the mouse front button, move the switch
on the underside of the mouse to ON. Release the front
button once the LED starts to flash orange.
If the button is held for more than 5 seconds, the mouse will not
pair via Bluetooth. The LED will flash green & the mouse will enter
USB Receiver (sold separately) pairing mode.
5. When "ProPoint" appears in the list of devices, click on it
to pair your mouse.
If you have a problem, switch the mouse OFF & try again
6.
from step 1.
If "ProPoint"
supports Bluetooth 4.0 (or later) & that Bluetooth is enabled.
Please note that Windows 7 does not support Bluetooth 4.0,
however you can purchase a USB Receiver which will work on
Windows 7. Accessories can be purchased from the Swiftpoint
store (www.swiftpoint.com) & other approved outlets.

Connecting ProPoint to iPad Applications

1. Pair your ProPoint to your iPad over Bluetooth (see above).
2. Launch your supported remote desktop app, & start
a remote session.

Connecting to more than one Bluetooth device

ProPoint can store pairings with up to three separate

Bluetooth devices.
When switched on, the mouse will first try to reconnect with

the most recently used device. If this cannot be found it will
try to connect to the next device in the list.
If two or more of ProPoint's current Bluetooth connections

are available nearby, you can swap between them by holding
the center button while switching OFF then ON again using
the On/O switch.

Connecting ProPoint via USB Receiver

To connect via the USB Charger/Receiver, plug the USB
Charger/Receiver into a port on your computer & move the
switch on the underside of the mouse from the OFF to the ON
position. The mouse will automatically connect to your computer.
Configuring ProPoint on PC/Mac
IMPORTANT
Install the SWIFTPOINT CONTROL PANEL to configure
your ProPoint mouse to perform exactly as you want it to.
Set the cursor speed, scroll speed & direction, assign button
functionality & much more. The driver will be updated
periodically to add & improve functions.
1.
Open browser, click in URL box & type:
www.swiftpoint.com/download-propoint-drivers
2.
Follow the on-screen instructions
For more tips & videos, visit
Scroll-wheel
Right-click (center)
Middle-click (rear)
Middle finger
grip
LED
does not appear, check that your system
USB Charger/Receiver
www.swiftpoint.com/600
Docking
point
Switch
