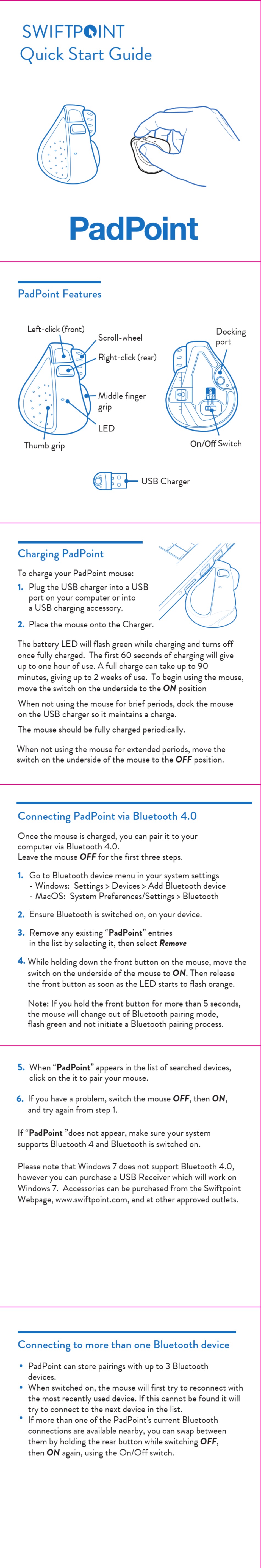

Swiftpoint PadPoint Quick Start Manual

Quick Start Guide

PadPoint Features

Left-click (front)
Thumb grip

Charging PadPoint

To charge your PadPoint mouse:
1.
Plug the USB charger into a USB
port on your computer or into
a USB charging accessory.
2.
Place the mouse onto the Charger.
The battery LED will flash green while charging and turns off
once fully charged. The first 60 seconds of charging will give
up to one hour of use. A full charge can take up to 90
minutes, giving up to 2 weeks of use. To begin using the mouse,
move the switch on the underside to the ON position
When not using the mouse for brief periods, dock the mouse
on the USB charger so it maintains a charge.
The mouse should be fully charged periodically.
When not using the mouse for extended periods, move the
switch on the underside of the mouse to the OFF position.

Connecting PadPoint via Bluetooth 4.0

Once the mouse is charged, you can pair it to your
computer via Bluetooth 4.0.
Leave the mouse OFF for the first three steps.
1.
Go to Bluetooth device menu in your system settings
- Windows: Settings > Devices > Add Bluetooth device
- MacOS: System Preferences/Settings > Bluetooth
2.
Ensure Bluetooth is switched on, on your device.
3.
Remove any existing "PadPoint" entries
in the list by selecting it, then select Remove
4.
While holding down the front button on the mouse, move the
switch on the underside of the mouse to ON. Then release
the front button as soon as the LED starts to flash orange.
Note: If you hold the front button for more than 5 seconds,
the mouse will change out of Bluetooth pairing mode,
flash green and not initiate a Bluetooth pairing process.
5.
When "PadPoint" appears in the list of searched devices,
click on the it to pair your mouse.
6.
If you have a problem, switch the mouse OFF, then ON,
and try again from step 1.
If "PadPoint "does not appear, make sure your system
supports Bluetooth 4 and Bluetooth is switched on.
Please note that Windows 7 does not support Bluetooth 4.0,
however you can purchase a USB Receiver which will work on
Windows 7. Accessories can be purchased from the Swiftpoint
Webpage, www.swiftpoint.com, and at other approved outlets.

Connecting to more than one Bluetooth device

PadPoint can store pairings with up to 3 Bluetooth

devices.
When switched on, the mouse will first try to reconnect with

the most recently used device. If this cannot be found it will
try to connect to the next device in the list.

If more than one of the PadPoint's current Bluetooth
connections are available nearby, you can swap between
them by holding the rear button while switching OFF,
then ON again, using the On/Off switch.
Scroll-wheel
Right-click (rear)
Middle finger
grip
LED
USB Charger
Docking
port
Switch
