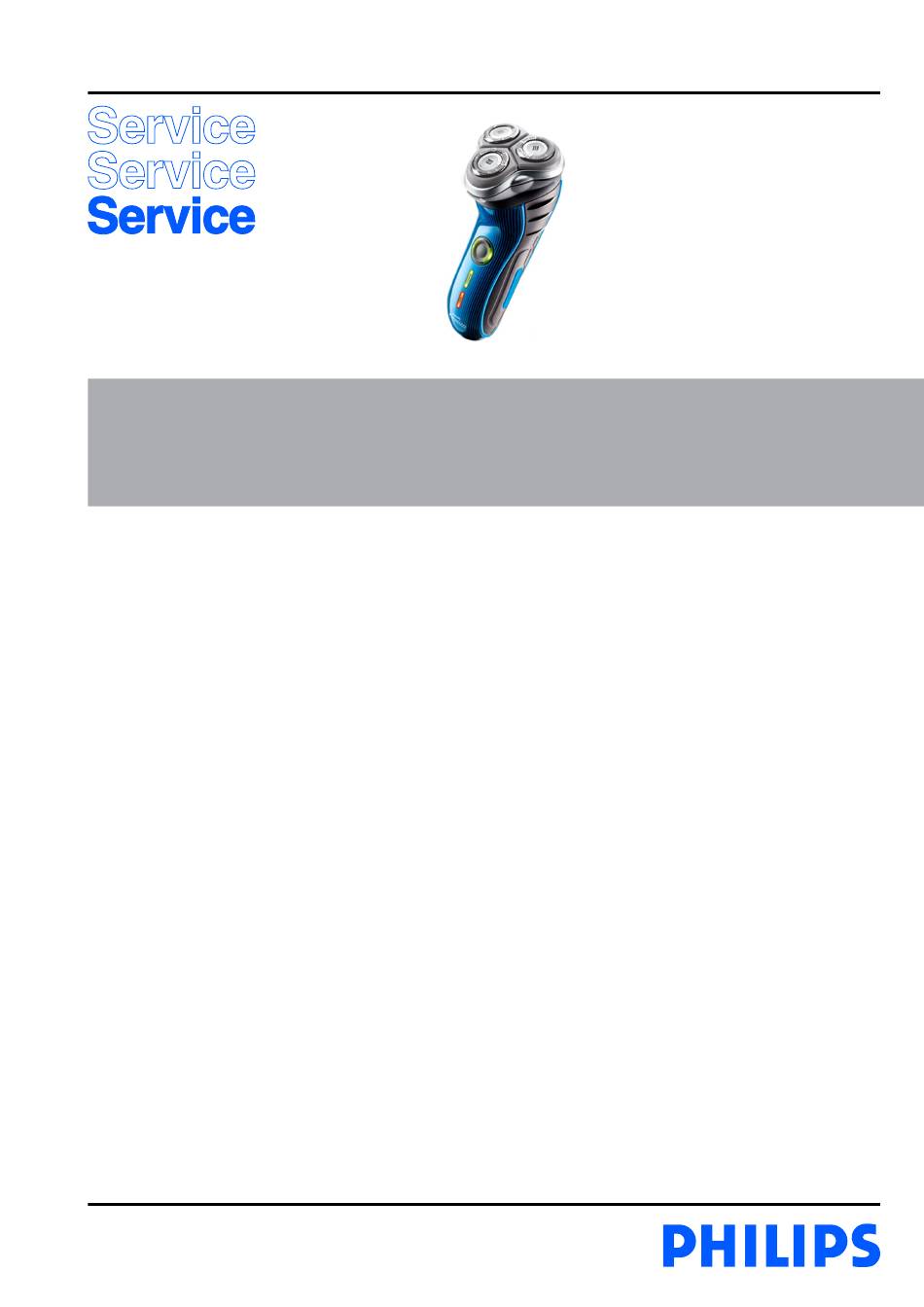

Philips 7120X Service Manual
Hide thumbs Also See for 7120X:

Advertisement

Quick Links

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
General:
- Rechargeable operation only
- World-wide automatic voltage selection
- Electronic on/off switch
- Washable
Safety information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
07/03
TECHNICAL INFORMATION
- Voltage
- Motor voltage
- Shaving heads
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVICE
Disassembly:
- Remove shaving unit, to prevent damaging during
repairing.
- Remove the 2 screws (A) out of the hairchamber.
- Remove the hairchamber from the body.
- Remove the 2 screws (B) on the backside of the shaver.
- Remove the cover.
- Remove the side grips.
- Remove the housing by bending the hooks with a
screwdriver.
- Take out the basic body.
REPAIR INSTRUCTION
- No specific issues
OPTIONAL (accessories)
- Car cord : 4222 036 08920
- Pouch
: 4222 036 14160
Printed in the Netherlands
© Copyright reserved
Shaver
7120X
: 100 - 240 Volt / 50 - 60 Hz
: 1,2 Volt
: HQ8 - 4222 036 05820
: 7120X
Subject to modification
