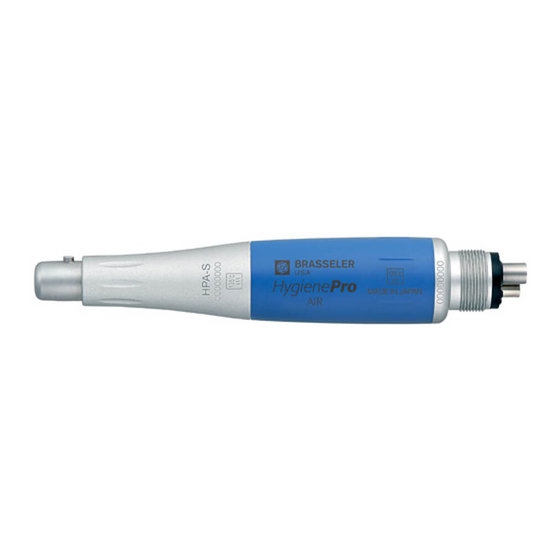

Air Motor Handpiece for Disposable Prophy Head
HygienePro
Air
™
OM-MR080E
: AUTOCLAVABLE
Thank you for purchasing the Hygiene Pro AIR, air motor handpiece for disposable
prophy head. Please read this operation manual carefully before use and file for
future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BRASSELER USA HygienePro Air
Summary of Contents for BRASSELER USA HygienePro Air
- Page 1 Air Motor Handpiece for Disposable Prophy Head HygienePro ™ OM-MR080E : AUTOCLAVABLE Thank you for purchasing the Hygiene Pro AIR, air motor handpiece for disposable prophy head. Please read this operation manual carefully before use and file for future reference.
- Page 2 • Check for vibration, noise and overheating outside the patient's oral cavity before use. If any abnormalities are found, stop using immediately and contact Brasseler USA. • Should the handpiece function abnormally, cease operation immediately and return the handpiece to Brasseler USA for repair. • Do not allow any impact on the sheath. Do not drop the handpiece.
-
Page 3: Specifications
1. Specifications 2,000-3,000 min -1 (rpm) Allowable Max. Speed Drive Air Pressure 30-40 psi (2.1-2.8 bar) - Page 4 2. Connecting / Disconnecting the Handpiece Caution Ensure that the air supply has completely stopped before handling the handpiece. 1) Connection Align the pipe of the handpiece and the pipe hole of the hose, and push the handpiece onto the hose. Hold the handpiece tightly and fasten the nut of the hose securely.
- Page 5 3. Mounting and Removing the Disposable Prophy Head Caution Ensure that the air supply has completely stopped before handling the disposable prophy head. Mounting To connect the handpiece and the disposable prophy head, align the positioning marks of the handpiece and the disposable prophy head, and insert firmly.
- Page 6 Removing To disconnect, hold the disposable prophy head and the handpiece, and pull out straightly. Positioning Mark Positioning Mark Disposable Prophy Head Fig. 2 Handpiece...
- Page 7 4. Lubrication Lubricate after each use and/or before autoclaving. 1) Mount the arrow-head spray nozzle tip into the spray port. 2) Insert the arrow-head spray nozzle in the drive air tube of the handpiece and spray for approximately 2-3 seconds. Arrow-head Spray Nozzle Tip Fig.
- Page 8 Caution • Hold the can upright. • Be sure to hold the handpiece firmly to prevent the handpiece from slipping out of hand by the spray pressure when lubricating. • Supply lubricant until it comes out of the handpiece head (for approx. 2-3 seconds).
- Page 9 5. Sterilization • Autoclave sterilization is recommended. • Autoclave Sterilization is required first time you use and after each patient as noted below. Autoclave Procedure 1) Scrub dirt and debris from the handpiece, and wipe clean with alcohol-immersed cotton swab or cloth. Do not use a wire brush. 2) Lubricate 3) Insert into an autoclave pouch.
- Page 10 Caution • If the sterilizer chamber temperature could exceed 135ºC during the dry cycle, skip the dry cycle. • Always place the handpiece in the center or upper shelf of the chamber, as local temperature at the bottom of chamber could rise beyond set value.
-
Page 11: Warranty
Warranty Brasseler USA warrants the handpiece against defects in manufacturing, workmanship and materials. Brasseler USA reserves the right to analyze and determine the cause of any problem. Warranty is voided should the handpiece not be used in accordance with this manual. - Page 12 By Your Side in Dentistry One Brasseler Boulevard, Savannah, GA 31419 To order call 800.841.4522 or fax 888.610.1937. Visit our website: www.BrasselerUSA.com ’09.04.01 S...
