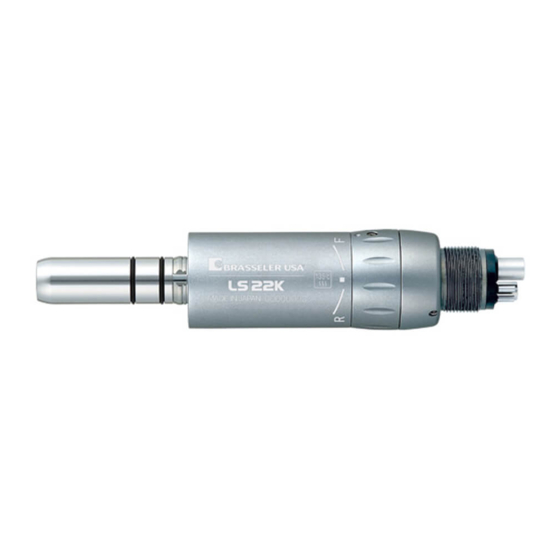

- Page 1 LS22K Air Motor Please read this Operation Manual carefully OM-MR063E before use and file for future reference.
- Page 2 • When operating the airmotor always consider the safety of the patient. • Should the airmotor function abnormally, cease operation immediately and return the airmotor to Brasseler USA for repair. • Do not disconnect the handpiece until the airmotor has completely stopped.
- Page 3 1. Features • Various E-type (ISO-3964 Compatible) attachments are adaptable. • The motor is Autoclavable. • Specially-coated cylinder provides outstanding durability. • Selection of Forward or Reverse Rotation, or Stop is achieved at the motor.
-
Page 4: Specifications
2. Specifications FWD /REV Change Ring .64″ 1.24″(31.5mm) 2.06″(52.4mm) (16.3mm) Weight……2.9oz (82.2g) 3.94″(100.2mm) Fig.1 Speed and Air Consumption Rate by Drive Air pressure. Speed may vary slightly Drive Air (psi (bar)) Speed (min (rpm)) Air Consumption(cfm) depending on the back-end 35.6 (2.5) 22,000 configuration, the... - Page 5 3. Mounting of Attachment (1) Mounting of Attachment Insert the E-type attachment on the motor insert. Motor lnsert Motor lnsert Fig.2 (2) Removing the Attachment Pull out the attachment from the motor. Fig.3...
- Page 6 4. Forward/Reverse Rotation (1) Forward Rotation : Turn the FWD/REV Change Ring to“F”as shown in Fig.4. (2) Reverse Rotation : Turn the FWD/REV Change Ring to“R”as shown in Fig.5. (3) When the FWD/REV Change Ring is positioned at the middle of“F”and“R”, the drive air is interrupted and the motor does not rotate.
- Page 7 5. Lubrication Disconnect the motor from the handpiece hose, and supply a few drops of spray for a few seconds into the drive air tube at the back end of the motor as shown in Fig.7. 4-hole Fig.7 Drive Air Tube...
- Page 8 6. Sterilization The LS-22K motor is autoclavable. Sterilization is required the first time you use and after each patient as noted below. ○ Autoclaving Procedure : 1) Wipe off dirt with alcohol-soaked cloth. 2) Lubricate the motor. Use spray. 3) Insert in a sterilizing pouch and seal it. 4) Autoclavable up to a max.
- Page 9 Caution Do not autoclave the motor, even when it is bagged, together with other instruments, from which chemicals are not sufficiently cleaned. This is to avoid discoloration and/or damage to the plating of the motor.
-
Page 10: Warranty
Brasseler USA warrants the handpiece against defects in manufacturing, workmanship and materials. Brasseler USA reserves the right to analyze and determine the cause of any problem. Warranty is voided should the handpiece not be used in accordance with this manual. - Page 11 By Your Side in Dentistry One Brasseler Boulevard, Savannah, GA 31419 To order call 800.841.4522 or fax 888.610.1937. Visit our website: www.BrasselerUSA.com '10.09.05...
