MODEL #
CM7537Q
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7537Q
Summary of Contents for Furniture of America CM7537Q

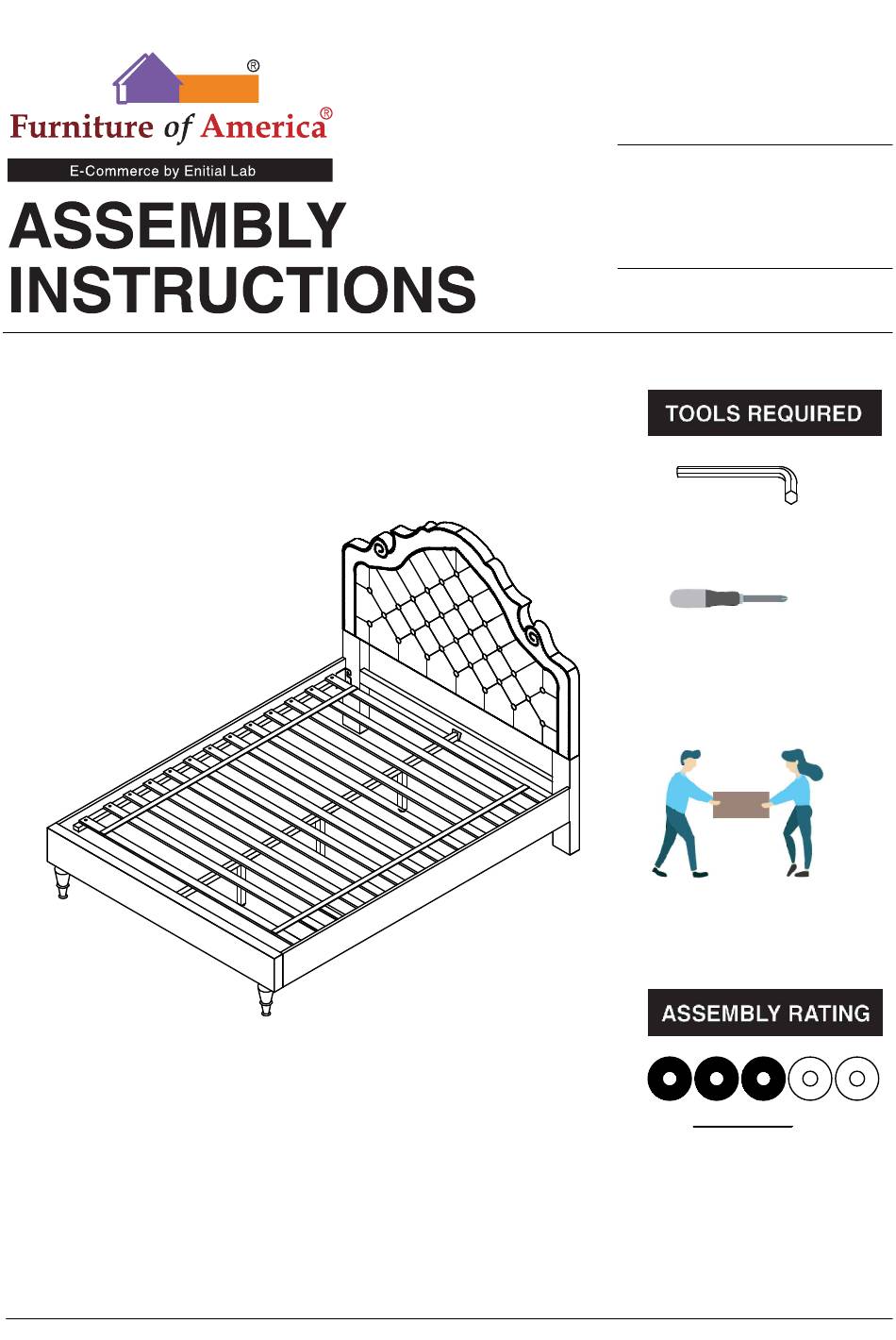

- Page 1 MODEL # CM7537Q Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 CM7537Q is packed in 2 cases Carton Disignation Part Hardware Headboard #A x 1pc FB Legs #B x 4pcs #C x 14pcs Support leg #D x 18pcs CM7537-1 Slat （ 13pcs ） #E x 14pcs HB Legs (L&R) #F x 4pcs...
- Page 6 CM7537Q #2 1pc #3 2pcs #1 1pc Headboard FB Legs Footboard #5 1 pc #6 3pcs #4 2pcs Ø5/16" Siderail Support bar Support leg 275x30x30mm #7 1set #8 2pcs #9 1pc Slat （ 13pcs ） HB Legs (L&R) HB Support Rail...
- Page 7 #A x 1pc #B x 4pcs #C x 14pcs Allen Wrench 5mm Bolt Ø5/16" x 2" Bolt Ø5/16" x 1" #D x 18pcs #E x 14pcs #F x 4pcs Lock Washer Ø5/16" Flat Washer Flat Washer Ø5/16" x19mm Ø5/16" x 22mm #G x 26pcs Screw #8 x 38mm 7 / 11...
-
Page 8: Back View
ASSEMBLY INSTRUCTIONS Remove slats (#7) from the hidden compartment of the headboard (#1). Back view Part #1 x1pc Align HB legs (#8R/L) to the headboard Part #8 x2pcs (#1), then secure by using bolts (#B) with Hardware #B x4pcs washers (#D,F). Hardware #D x4pcs Hardware... - Page 9 ASSEMBLY INSTRUCTIONS Part #9 x1pc Align brackets (#10) to the HB support rail (#9), then secure by Part #10 x2pc using bolts (#C) with washers (#D,E). Hardware #C x2pcs Hardware #D x2pcs Hardware #E x2pcs Hardware #C x4pcs Hardware #D x4pcs Hardware #E x4pcs Align HB support (#9) to the headboard...
- Page 10 ASSEMBLY INSTRUCTIONS Align side rails (#4) to the headboard (#1) and footboard (#2), then secure by using bolts (#C) with washers (#D,E). Part #2 x1pc Part #4 x2pcs Hardware #C x8pcs Hardware #D x8pcs Hardware #E x8pcs Part #5 x1pc Part #6 x3pcs Attach support legs (#6) to the slat...
- Page 11 ASSEMBLY INSTRUCTIONS Place slat (#5) to the HB rail and footboard. Part #5 x1pc Hardware #G x26pcs Secure slats (#7) onto side rails (#4) by using screws (#G). 11 / 11...
