Cleerline SSF-48UHD-AOC-05m Troubleshooting Manual

SSF 8K UHD HDMI AOC Troubleshooting Guide
™
8K UHD, 48 Gbps, HDR, Plenum Jacket, CMP FT6

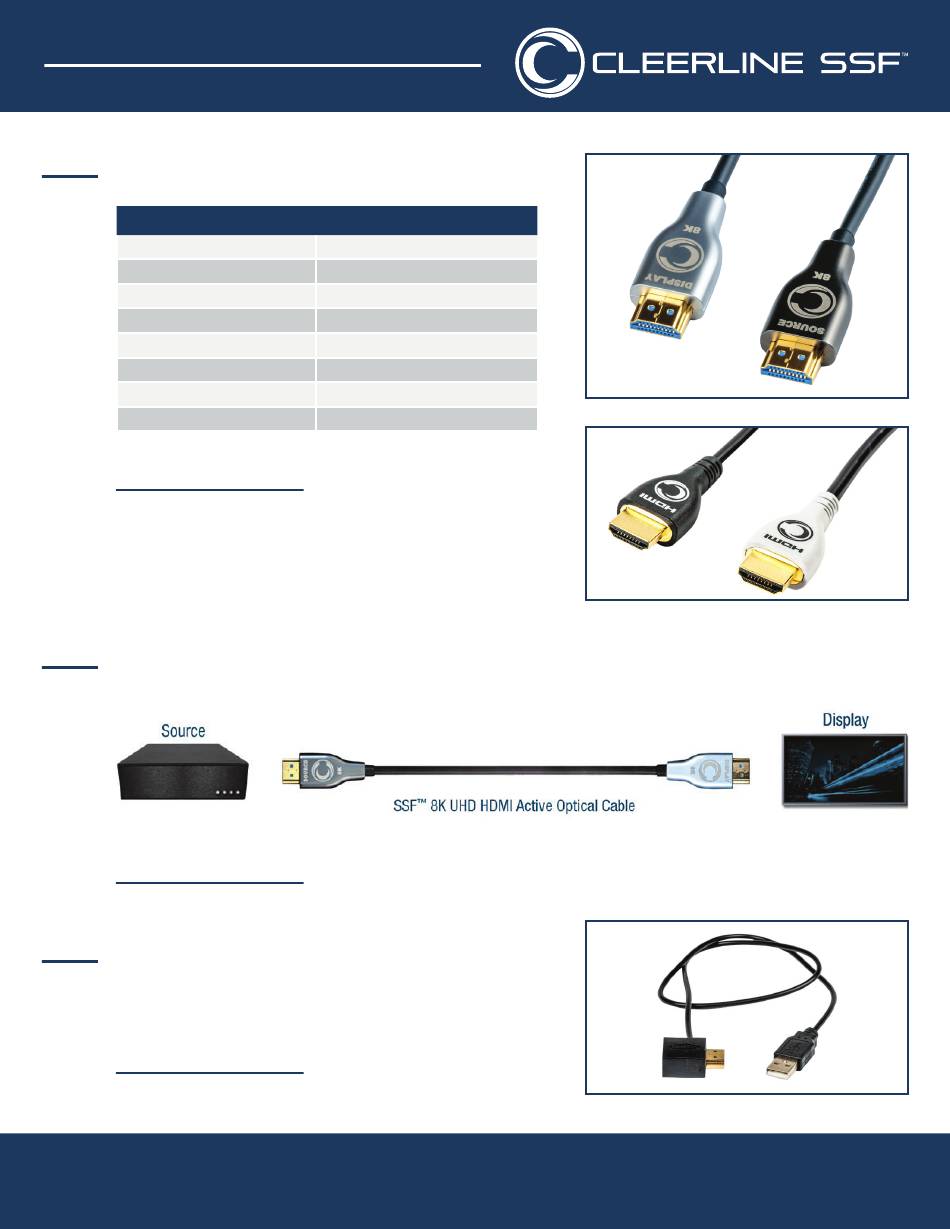

STEP 1

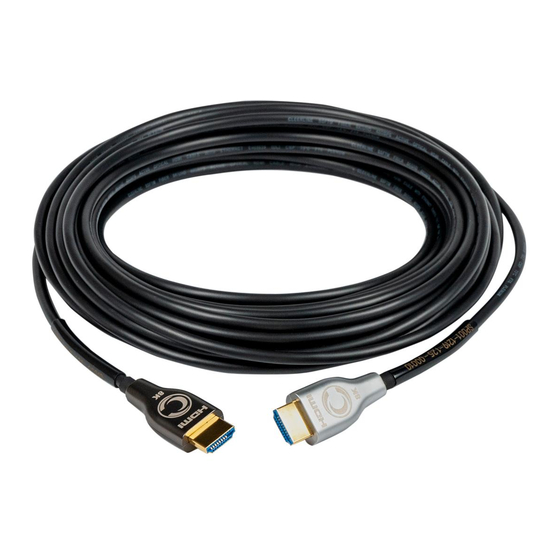

Does your cable look like the cable in Figure 1 or is your
cable's part number included below (SSF-48UHD-AOC-XXm)?
PART NUMBER
SSF-48UHD-AOC-05m
SSF-48UHD-AOC-07.5m
SSF-48UHD-AOC-10m
SSF-48UHD-AOC-12.5m
SSF-48UHD-AOC-15m
SSF-48UHD-AOC-20m
SSF-48UHD-AOC-30m
SSF-48UHD-AOC-40m
If YES, continue to step 2.
If cable is Cleerline SSF™ 4K Active Optical Cable (SSF-
UHDAOCXXM), pictured in Figure 2 (plastic heads), please
contact Cleerline Tech Support at 406-541-9833, option 3.

STEP 2

Cable is directional. Was the "Source" head connected to
source and "Display" Head to display (Figure 3)?
Figure 3
If YES, continue to step 3.

STEP 3

Is the SSF-AOCPI HDMI Power Inserter Cable (Figure 4)
at the "Source" side? The source does not always provide
enough power to activate the cable, so SSF-AOCPI is
included in the box.
If YES, continue to step 4.
CLEERLINE TECHNOLOGY GROUP, LLC
8404 El Way Drive #2B, Missoula, MT 59808
Web: www.cleerlinefiber.com
LENGTH
5 m / 16.4 ft
7.5 m / 24.6 ft
10 m / 32.8 ft
12.5 m / 41.0 ft
15 m / 49.2 ft
20 m / 65.62 ft
30 m / 98.43 ft
40 m / 131.23 ft
USA & CAN: 866-469-2487
Copyright 2012 Cleerline Technology Group, LLC.
Figure 1
Figure 2
Figure 4
Fax 406-532-0060 Int'l +1 406-541-9830 Int'l Fax 1-406-532-0060
All rights reserved. Subject to change without notice.
Date: 8/16/2021 Rev. 2.0
