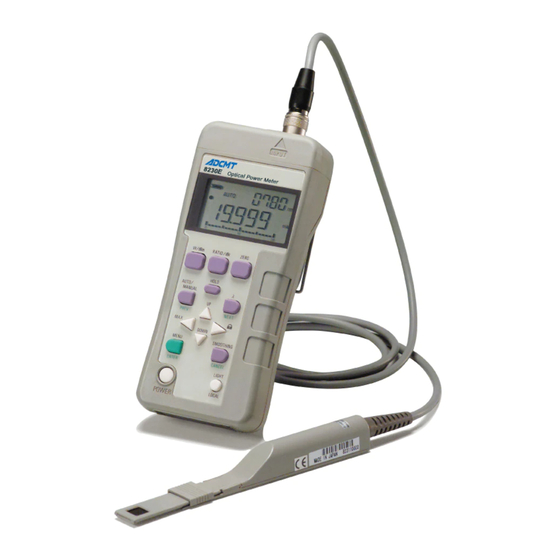

- Page 1 Cover 823xxB Series Optical Sensor Operation Manual FOE-00000039A01 MANUAL NUMBER Applicable Models 8230 8230E 8250A Applicable Sensors 82311B 82321B 82312B 82322B 82313B 82323B 82314B 82324B 82314BW First printing November 18, 2008 2008 ADC CORPORATION All rights reserved. Printed in Japan...
- Page 3 Certificate of Conformity Certificate of Conformity This is to certify, that Optical Power Meter 8230 / 82311B / 82312B / 82313B / 82321B / 82322B / 82323B / 82314B / 82314BW / 82324B instrument, type, designation complies with the provisions of the EMC Directive 89/336/EEC (All of these factors are revised by 91/263/EEC, 92/31/EEC, 93/68/EEC), 2004/108/EC in accordance with EN61326-1 and Low Voltage Directive 73/23/EEC (All of these factors are revised by 93/68/EEC), 2006/95/EC in accordance with EN61010.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 823xxB Series Optical Sensor Operation Manual TABLE OF CONTENTS INTRODUCTION ..................Product Outline ....................Applicable Optical Power Meters ..............Standard Accessory ................... Option ........................ Operating Environment ..................Precautions ......................Checking Operations ..................Cleaning ......................1.8.1 Cleaning this Sensor ................... 1.8.2 Cleaning the Incident Surface of the Sensor .......... - Page 6 823xxB Series Optical Sensor Operation Manual Table of Contents 82314BW DIMENSIONAL OUTLINE DRAWING ........EXT-3 ALPHABETICAL INDEX ..................
- Page 7 823xxB Series Optical Sensor Operation Manual LIST OF ILLUSTRATIONS Title Page Wavelength Sensitivity Characteristics and Power Calibration of the Sensor ....Calibration Wavelength Selection Function ..............Connection Diagram for the Optical Sensor Performance Test ........
- Page 9 823xxB Series Optical Sensor Operation Manual LIST OF TABLES Title Page Applicable Optical Power Meters and Software Revisions ..........Standard Accessories ......................Sensor Option ........................Disposal ..........................Equipment Required for Evaluating Optical Sensors ............Judgment Criteria for the Optical Sensor .................
-
Page 11: Introduction
823xxB Series Optical Sensor Operation Manual 1. INTRODUCTION INTRODUCTION This chapter describes the following items: accessories, recommended operating environment, precautions when using this instrument, how to use this instrument, and specifications. Please read this manual carefully before using this instrument. For more information on how to operate an optical power meter, read an operation manual of an optical power meter together with this manual. - Page 12 823xxB Series Optical Sensor Operation Manual 1.1 Product Outline • 82322B The 82322B cylindrical-type optical sensor is available for attachment to test equipment, for measure- ment on an optical bench, or for optical fiber system measurement. Adapters to accommodate each op- tical connector are available.
-
Page 13: Applicable Optical Power Meters
823xxB Series Optical Sensor Operation Manual 1.2 Applicable Optical Power Meters • 82324B The 82324B cylindrical-type optical sensor is available for attachment to test equipment, for measure- ment on an optical bench, or for optical fiber system measurement. Adapters to accommodate each op- tical connector are available. -
Page 14: Standard Accessory
823xxB Series Optical Sensor Operation Manual 1.3 Standard Accessory Standard Accessory The standard accessories, which are included in this sensor, are shown below. If any equipment is damaged or missing, contact an ADC CORPORATION sales representative. Quote the model name when ordering. Table 1-2 Standard Accessories Accessory name Model name... -
Page 15: Operating Environment
823xxB Series Optical Sensor Operation Manual 1.5 Operating Environment Operating Environment Use this instrument under the following conditions: ambient temperature from 0C to +40C and a non-con- densing relative humidity of 80% or less. Precautions • Avoid giving strong impacts to the instrument and sensor. The sensor contains delicate components such as photodiodes and other optical parts and is particular care of the incident surface. -
Page 16: Cleaning
823xxB Series Optical Sensor Operation Manual 1.8 Cleaning Cleaning 1.8.1 Cleaning this Sensor Use a soft or damp cloth to clean the sensor. CAUTION: Do not allow water inside the instrument. Do not use organic solvents solutions such as benzene, toluene, xylene, acetone, or thinner for cleaning because they deform the plastic. -
Page 17: 1.10 Warm-Up
823xxB Series Optical Sensor Operation Manual 1.10 Warm-up 1.10 Warm-up The optical power meter must be warmed up for 5 or more minutes to reach operational performance speci- fications. 1.11 Calibration To calibrate the sensors, contact an ADC CORPORATION sales representative. Sensor calibration should be performed at an ADC CORPORATION site. -
Page 18: 1.12 Product Disposal And Recycle
823xxB Series Optical Sensor Operation Manual 1.12 Product Disposal and Recycle 1.12 Product Disposal and Recycle Disposal of this product should comply with the regulations and laws that are established by your country and municipality. When treating this product, separately collect components according to this chapter to prevent the spread of substances, which may be harmful to humans, and to protect the global environment. - Page 19 823xxB Series Optical Sensor Operation Manual 1.12 Product Disposal and Recycle Table 1-4 Disposal (2 of 2) Quantity in Used/ Name Location Unit Component maximum Not used configuration Arsenic and Arsenic compounds Not used Main frame Electronic compo- Nickel and Nickel compounds Used nents Main frame...
-
Page 21: How To Perform Measurements
823xxB Series Optical Sensor Operation Manual 2. HOW TO PERFORM MEASUREMENTS HOW TO PERFORM MEASUREMENTS Connect the sensor to the INPUT connector of the optical power meter. Set a wavelength. Perform zero cancel while the sensor is shaded completely. Set a measurement range. Read the displayed value of the optical power meter. -
Page 23: Technical Notes
823xxB Series Optical Sensor Operation Manual 3. TECHNICAL NOTES TECHNICAL NOTES Optical Power Calibration and Wavelength Sensitivity Correction Features of sensor photodiodes include varying sensitivity for individual photodiodes and wavelength- dependent sensitivity. This instrument ensures accuracy over a wide range of wavelengths by combining the power calibration at the calibration wavelength and the wavelength sensitivity correction over a wide range of wavelengths. -
Page 24: Calibration Wavelength Selection Function
823xxB Series Optical Sensor Operation Manual 3.2 Calibration Wavelength Selection Function Calibration Wavelength Selection Function An optional function of this instrument allows power calibration over multiple wavelengths. If a measure- ment is performed at each calibration wavelength by using this function, an accuracy, which is much higher than the accuracy obtained by using the wavelength sensitivity correction function, can be obtained. -
Page 25: Performance Test
823xxB Series Optical Sensor Operation Manual 4. PERFORMANCE TEST PERFORMANCE TEST This chapter describes the procedures used to check whether the sensors (82311B, 82312B, 82313B, 82314B, 82314BW, 82321B, 82322B, 82323B, and 82324B) operate correctly within the specified accuracies. Measuring Instruments and Other Equipment Required to Check the Performance of the Optical Sensor To calibrate the optical sensors, the light source, optical fiber, standard optical power meter, all of which meet the specifications described below, as well as a measuring environment with little or no vibration, at a tem-... -
Page 26: How To Connect The Instrument
823xxB Series Optical Sensor Operation Manual 4.1.1 How to Connect the Instrument 4.1.1 How to Connect the Instrument Sensor for the standard optical power meter LD light source Optical fiber Sensor adaptor Tested optical sensor Optical power meter 8230/8250A Figure 4-1 Connection Diagram for the Optical Sensor Performance Test 4.1.2 Test Point and Judgment Criteria Table 4-2 Judgment Criteria for the Optical Sensor... -
Page 27: Test Procedure
823xxB Series Optical Sensor Operation Manual 4.1.3 Test Procedure 4.1.3 Test Procedure Ensure that the light source and optical power meter are ready and they are in the stable state. Set of an optical power meter, which is connected to a sensor to be tested, to the calibration wavelength. -
Page 29: Specifications
823xxB Series Optical Sensor Operation Manual 5. SPECIFICATIONS SPECIFICATIONS Optical Sensor Specifications All accuracies are guaranteed for one year at a temperature of +23C 5C and a relative humidity of 70% or less. Item Specification 82311B 82312B 82313B Model (General-purpose) (For blue-violet light) (For high power light) - Page 30 823xxB Series Optical Sensor Operation Manual 5.1 Optical Sensor Specifications Item Specification 82321B 82322B 82323B Model (General-purpose) (For blue-violet light) (For high power light) Wavelength range 1100 nm 450 nm 1100 nm Display in dBm -60 to +17 dBm -50 to +20 dBm -50 to +23 dBm Power range Display in W...
- Page 31 823xxB Series Optical Sensor Operation Manual 5.1 Optical Sensor Specifications Item Specification Model 82314B (For 3 wavelengths) Wavelength range 900 nm Wavelength 405 nm 650 nm 780 nm Display in dBm -50 to +20 dBm Power range Display in W 10 nW 100 mW Beam spot...
- Page 32 823xxB Series Optical Sensor Operation Manual 5.1 Optical Sensor Specifications Item Specification Model 82314BW (Large aperture for 3 wavelengths) Wavelength range 900 nm Wavelength 405 nm 650 nm 780 nm Display in dBm -50 to +20 dBm Power range Display in W 10 nW 100 mW Beam spot...
- Page 33 823xxB Series Optical Sensor Operation Manual 5.1 Optical Sensor Specifications Item Specification Model 82324B (For 3 wavelengths) Wavelength range 900 nm Wavelength 405 nm 650 nm 780 nm Display in dBm -50 to +20 dBm Power range Display in W 10 nW 100 mW Beam spot...
- Page 34 823xxB Series Optical Sensor Operation Manual 5.1.1 General Specifications • Wavelength sensitivity correction option and additional calibration wavelength option Wavelength sensitivity correction: The wavelength sensitivity of each sensor is measured and corrected when calibrating. (The standard model of 82311B/82321B is corrected by using the typical value.) Additional calibration wavelength: The calibration is performed at other wavelengths in addition to the standard specifi- cation.
-
Page 35: Dimensional Outline Drawing
DIMENSIONAL OUTLINE DRAWING EXT-1... - Page 36 EXT-2...
- Page 37 EXT-3...
- Page 39 ALPHABETICAL INDEX ALPHABETICAL INDEX 823xxB Series Optical Sensor Operation Manual ALPHABETICAL INDEX Standard Accessory ......... 1-4 Storage ............ 1-6 Applicable Optical Power Meters ... 1-3 TECHNICAL NOTES ......3-1 Calibration ..........1-7 Test Point and Judgment Criteria .... 4-2 Calibration Wavelength Selection Test Procedure ........
