4.7
FUSE REPLACEMENT
To replace the internal fuse (P/N 204-10021-001, Little Fuse Type 473,005):
1.
Place the unit on a workbench with an antistatic pad.
2.
Remove six screws that secure the housing to the chassis (see figure 4-9).
3.
While holding the bezel with one hand, carefully pull the housing away from the rear of the chassis.
4.
Locate fuse F1. Unsolder and remove the fuse. Use a de-soldering tool to remove excess solder.
5.
Replace fuse and re-solder.
6.
While holding the unit in one hand, carefully slide the housing onto the chassis. Orient the housing so
that the external connector and alignment pins fit through the openings.
7.
Secure the housing with the six screws removed in step 1.
WX-950
Installation Manual

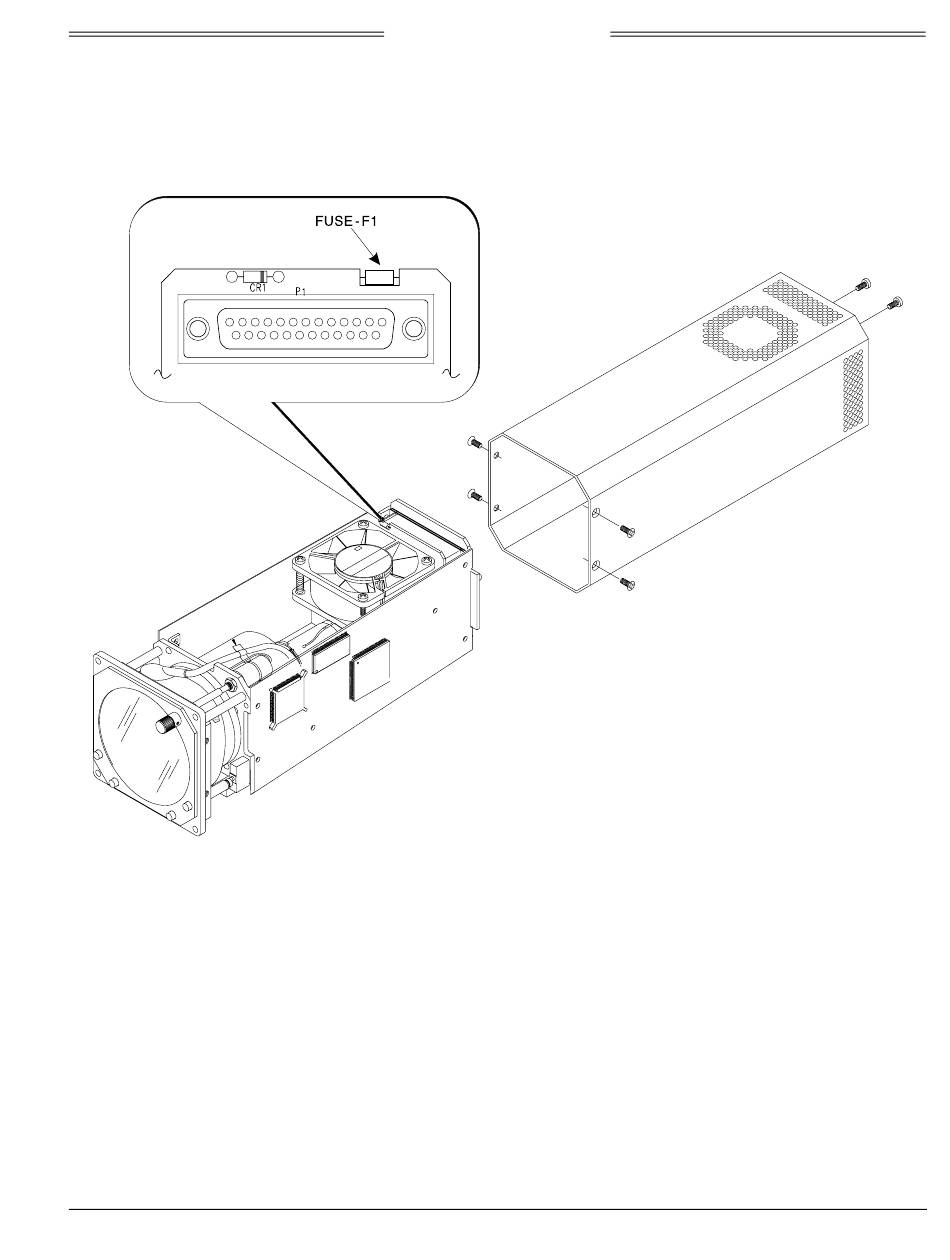

Figure 4-9. Replacing the Fuse
4-13
Rev. C
