WX-950
Installation Manual
1.3.2 Antenna
The antenna (see figure 1-3) is a combined cross-loop and sense antenna. Connection is made through a
single 10-pin connector (refer to paragraph 2.7.1). It is mounted to the aircraft using a doubler plate (see
figure 1-4) supplied with the installation kit (see table 1-1). The antenna is sealed against environmental
extremes and is non-repairable. To inhibit the build-up of precipitation-static the antenna is coated with
conductive paint and should not be repainted. Refer to paragraphs 2.4 and 2.5 for guidelines relating to
mounting location and installation.

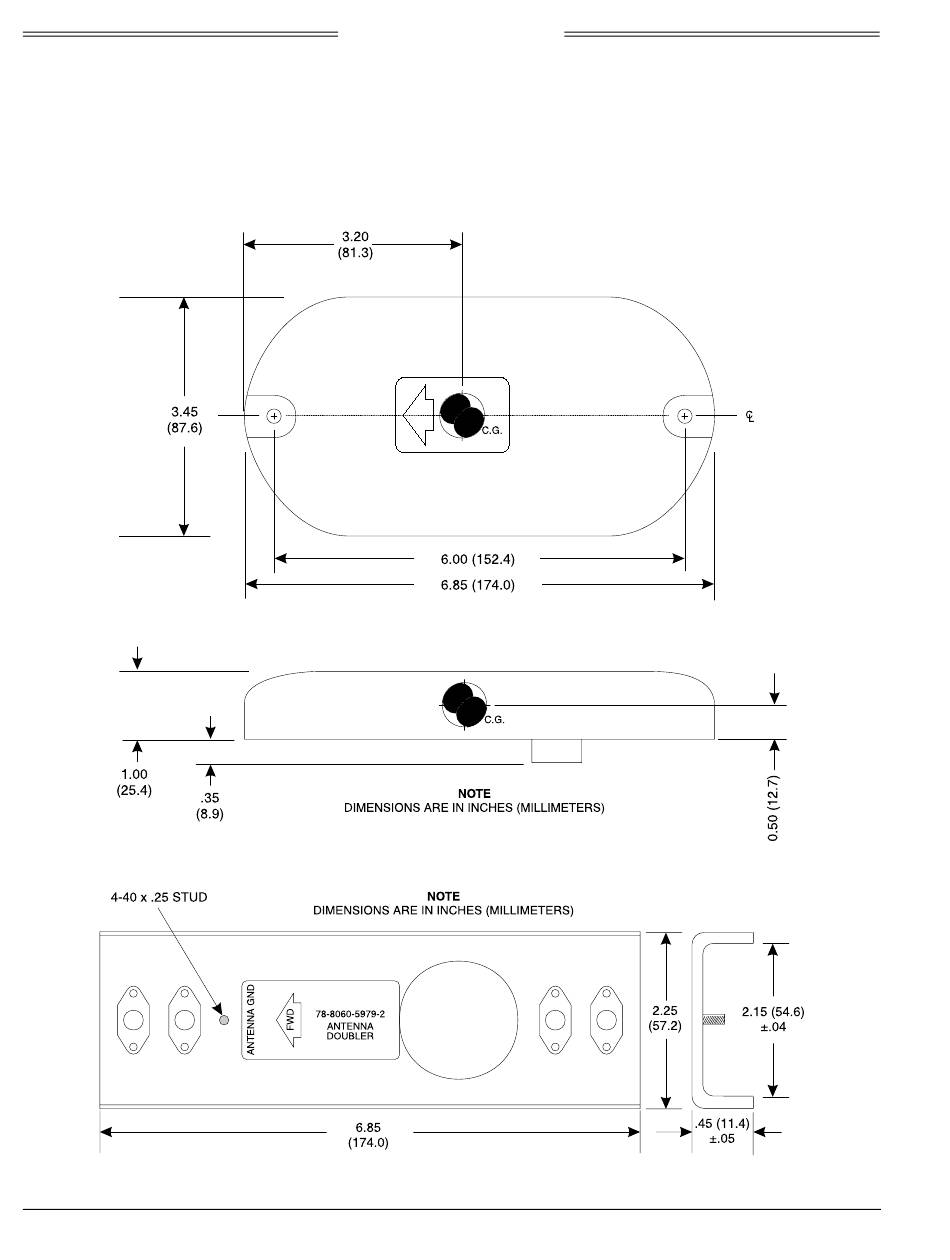

Figure 1-3. NY-163 Antenna (P/N 805-10930-001/002)
Figure 1-4. Antenna Doubler Plate (P/N 78-8060-5979-2)
1-4
Rev. C
