WX-950
Installation Manual
1.3 PHYSICAL DESCRIPTION
The WX-950 System consists of two main components; Display/Processor (P/N 805-10950-001/002) and NY-
163 Antenna (P/N 805-10930-001/002).
1.3.1 Display/Processor
The display/processor (see figure 1-2) houses the processing circuitry as well as the CRT display panel and
the pilot's operating controls. The Display/processor can mount in a 3ATI panel cutout from the front or
rear. No mounting tray is required, although a mooring plate may be purchased for increased stability in
high-vibration environments. Refer to paragraphs 2.6 and 2.9 for guidelines relating to mounting location
and installation. Connection is made through a mating connector assembly (refer to paragraph 2.8) that
attaches to a single 25 pin D-subminiature connector on the back panel.

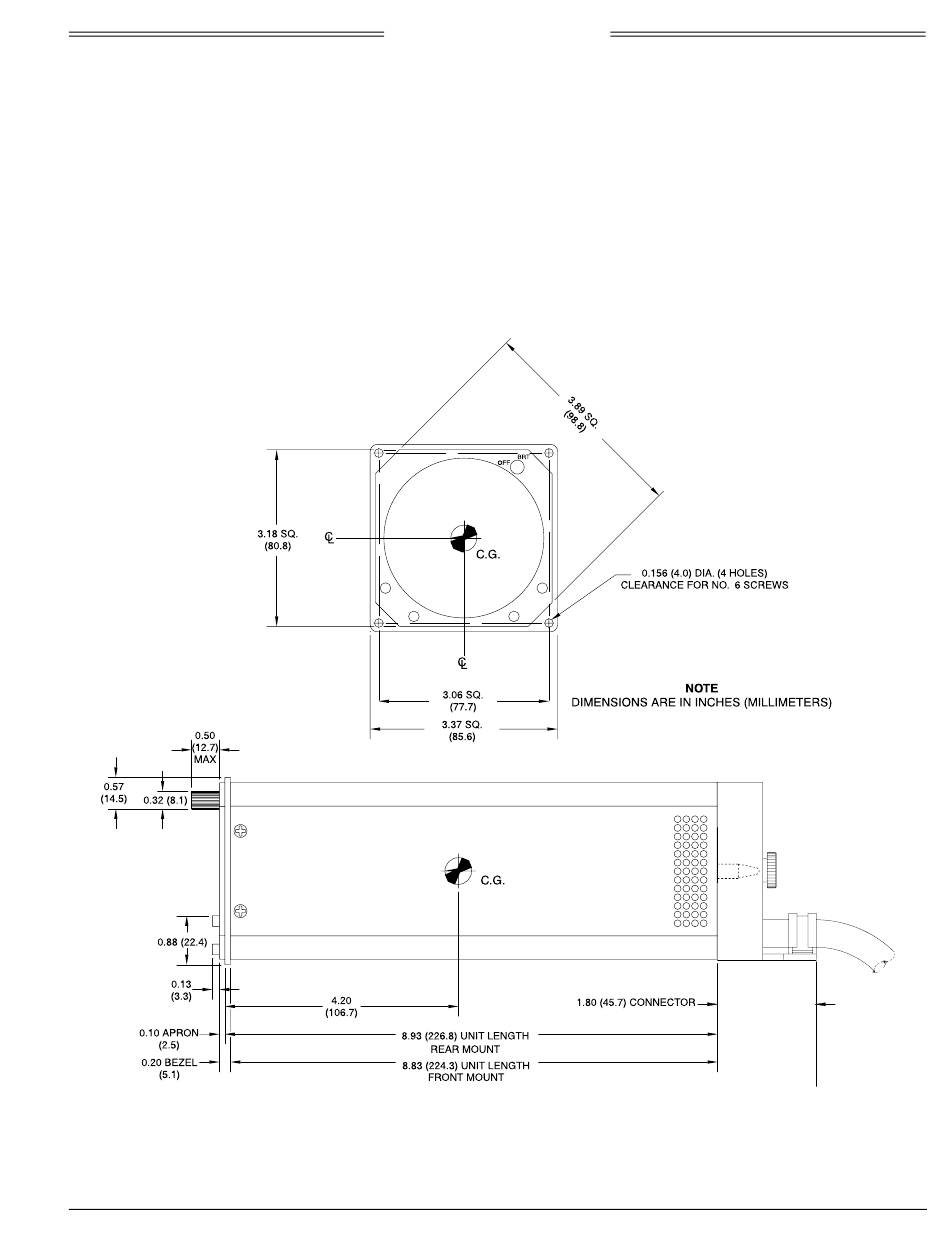

Figure 1-2. Display/Processor Unit (P/N 805-10950-001/002)
1-3
Rev. C
