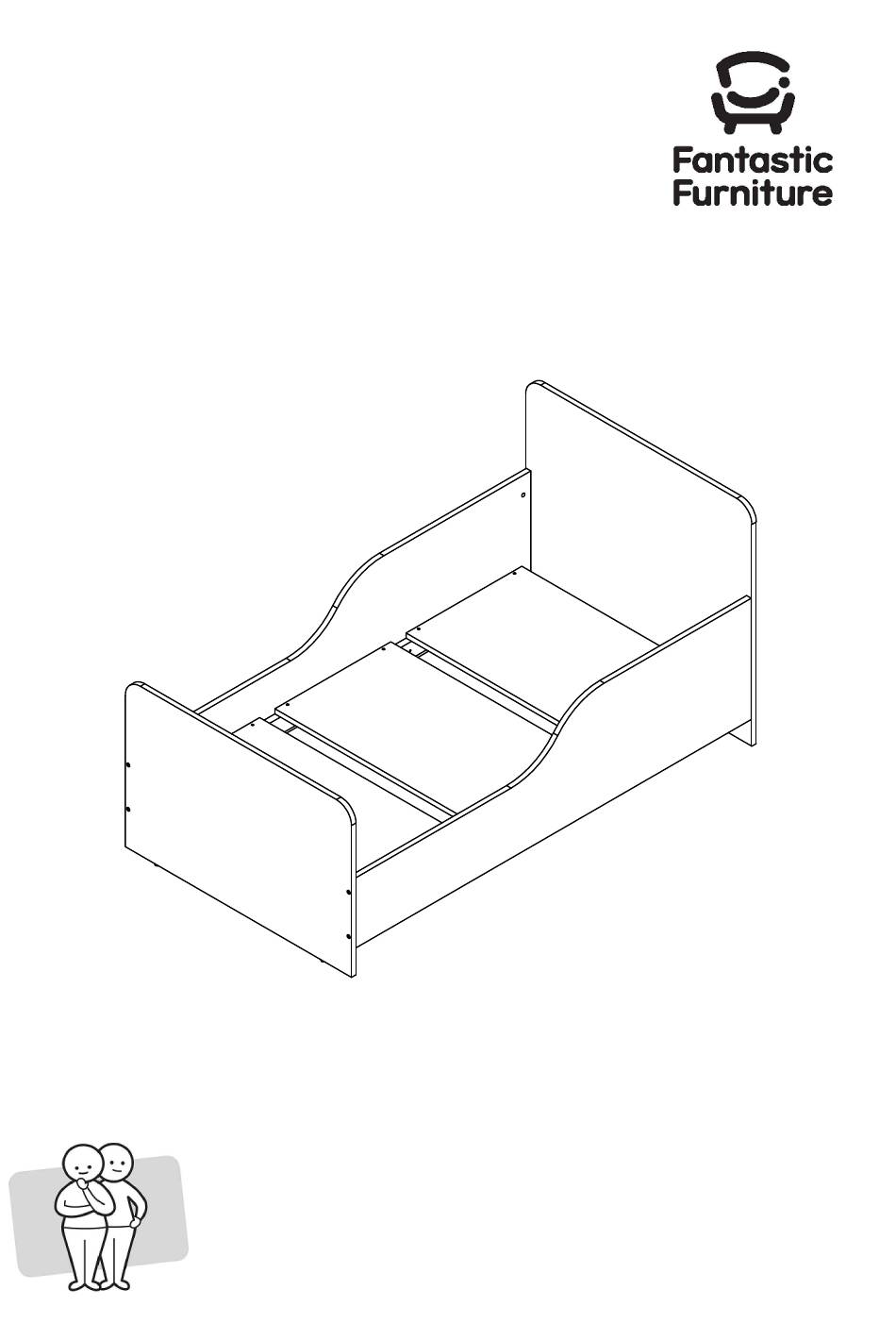

- Page 1 Version 1.0 TWO PEOPLE CABIN TODDLER BED REQUIRED www.fantasticfurniture.com.au...
- Page 2 ENJOY Your purchase from Australia's Best Value Furniture Store PAGE 2 www.fantasticfurniture.com.au...
- Page 3 Assembly checklist Make sure you have all the required tools. Read through the instructions carefully before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten screws Identify and lay out all of the components until the item is fully assembled. before you begin assembly.
- Page 4 What you need to assemble the product Head Board (P1) Side Panel L (P4) Centre Support Side Panel R (P3) Other tools you need (P5) Phillips head screwdriver, soft head mallet. Parts list Box 1: Head Board (P1); Foot Board (P2); Mattress Base Panel (P6);...
- Page 5 Step 1 You will need 8 x Baller Nut M6 2 x Cam Nut (H1) 15mm (H5) 2 x Cam Bolt Phillips Head (H6) Screwdriver - Insert 2 x cam nuts (H5) into panel (P3). - Insert 8 x baller nuts (H1) into panels (P4) & (P5). - Screw 2 x cam bolts (H6) into panels (P4) &...
- Page 6 Step 3 You will need Phillips Head Screwdriver - Attach panels (P4) & (P5) to panel (P3). - Turn the cam nuts on panel (P3) clockwise with a phillips head screwdriver to lock in position. Step 4 You will need 8 x JCBC Bolts 1 x Allen Key (H7) M6x50mm (H2)
- Page 7 Step 5 Slat Position You will need First Slat 12 x CSK Screw Philips Head M4x38mm (H4) Screwdriver Second Slat Third Slat - Secure panels (P6) with 12 x screws by using a philips head screwdriver. Please note the gap dimensions in the above diagram.
