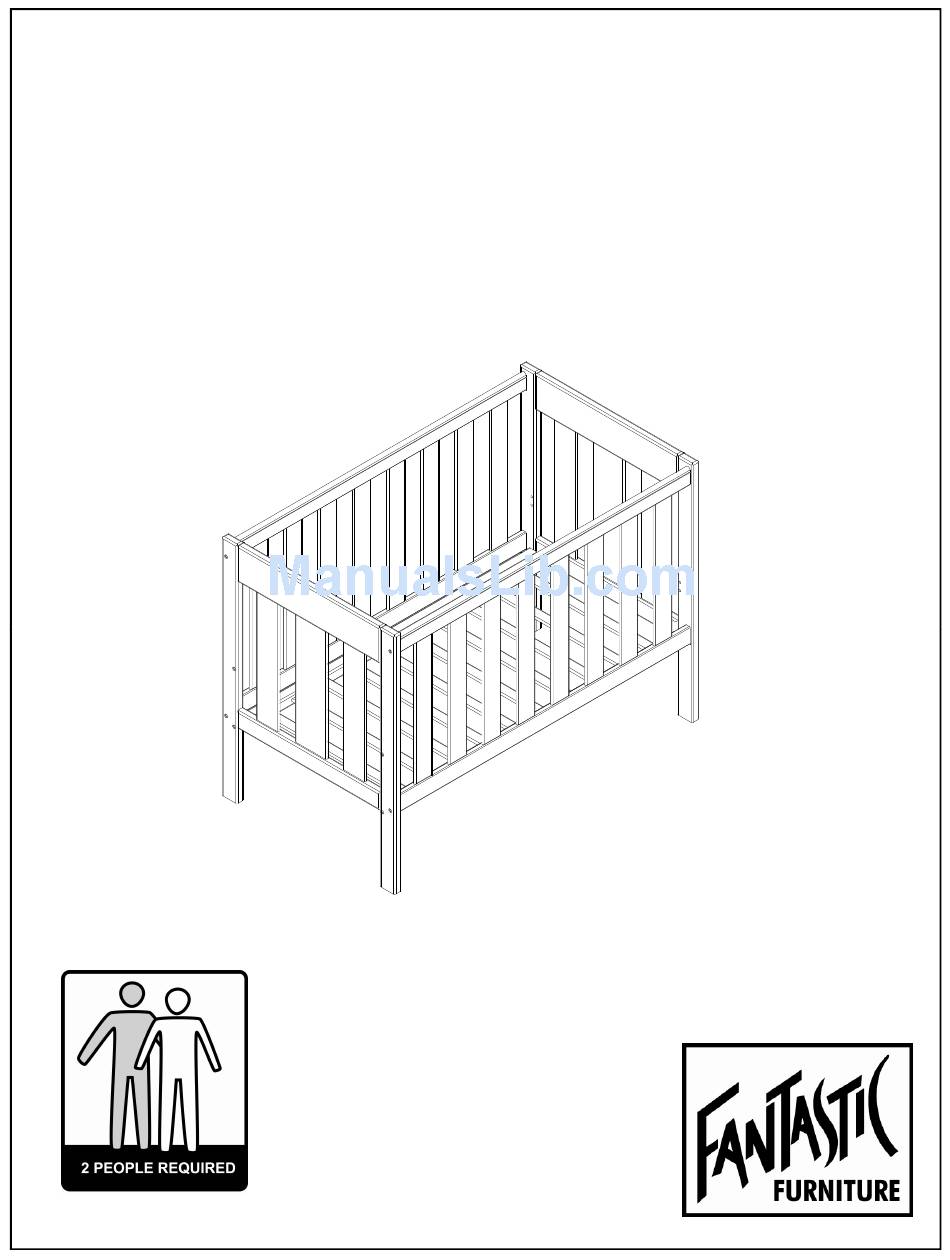

- Page 1 Assembly Instructions SUNBURY Twinkle Cot / Junior Bed Ver1.1...
- Page 2 WARNING WARNING FAILURE TO FOLLOW THESE BASIC STEPS CAN LEAD TO DAMAGE THAT IS NOT COVERED BY YOUR WARRANTY Lay out all of the components on a soft surface as if you were preparing to do a jigsaw puzzle. Read Instructions carefully. Check no parts are missing.
- Page 3 What you Need To Assemble the Cot Cot Side Cot End Base Bed Rail 65mm BOLT 40mm BOLT 19mm BOLT Cross Dowel Cross Dowel Wood Dowel Allen Key 20mm 13mm Please make sure you have all these parts before you start. Page 3...
- Page 4 Step 1 You will need: 2x Bolts (H1) 2x Cross Dowel (H5) Allen key (H8) Attach the base (noting the appropriate height level for your baby) (P3)to one end (P1). Affix the 2 x 65mm bolts (H1) using the Allen key(H8) through the outside of the end and align with the base and use 2 x cross dowel (H5) as per above.
- Page 5 Step 3 You will need: 4x Bolts (H2) Allen key (H8) Next, attach either of the sides (P2) with one person at either end. Place a 40mm bolt (H2) through each of the 4 holes at the outside of the end (P1)and fix using the Allen Key (H8). Do not over tighten or bolts may cross thread.
- Page 6 Step 5 You will need: 4x Bolts (H3) 4x End Caps (H4) Allen key (H8) Install Bolts (H3) and end caps (H4) in holes not being used as indicated on (P1) All bolts can now be tightened using the Allen Key (H8) Do not over tighten.
- Page 7 Sunbury Nursery Furniture 4/56 Cambridge Street, Coorparoo, Qld 4151 Phone: 07 3847 3699, Fax: 07 3397 1146 E-mail: sales@sunburynursery.com.au WARNINGS PLEASE ENSURE THE INSTRUCTIONS ARE FOLLOWED CAREFULLY TO ENSURE THE SAFETY OF THIS COT IS NOT COMPROMISED: Dispose of any wrapping immediately to avoid danger of suffocation.
