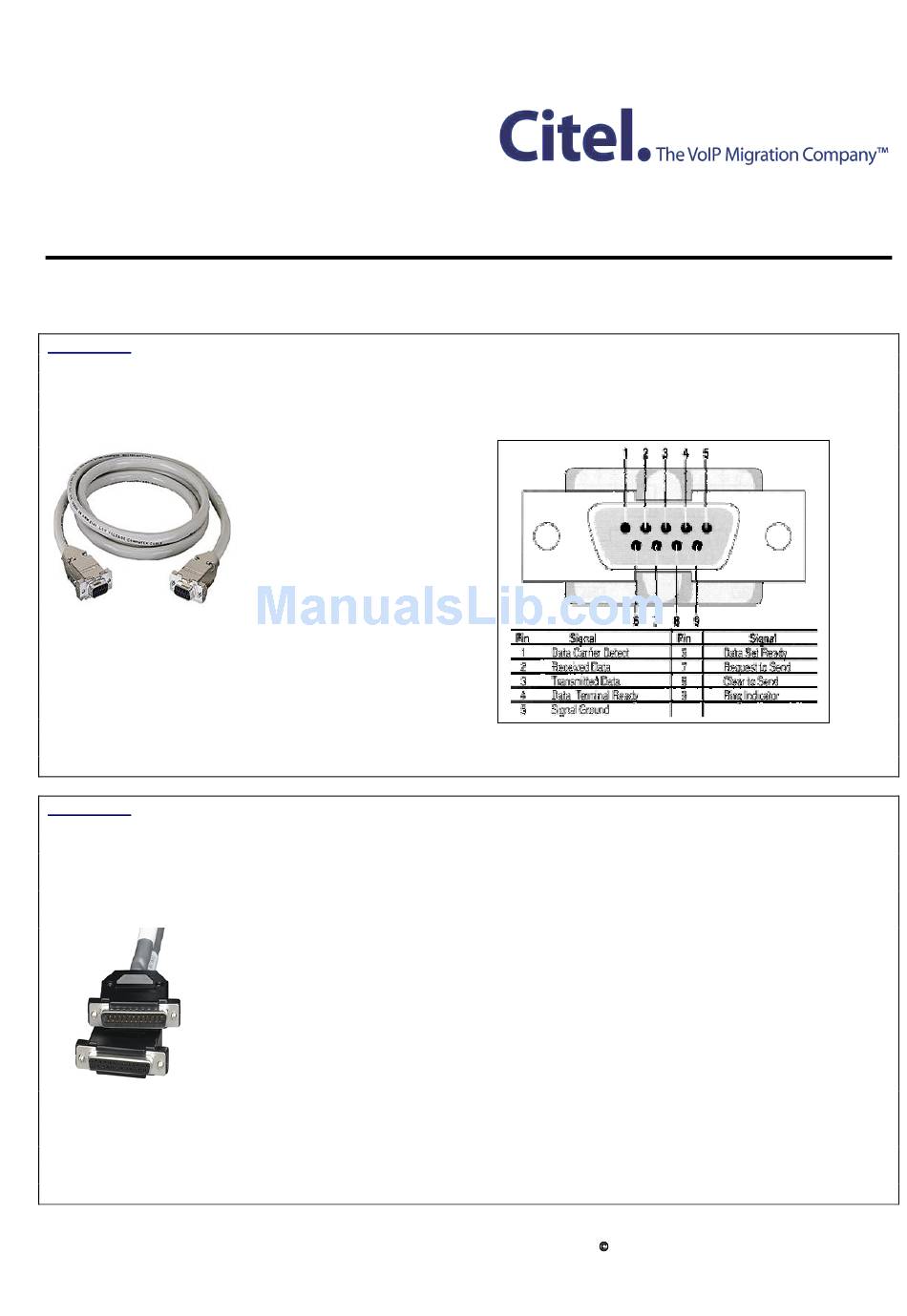

EXTENDER 6000 / 7000 CABLES & CONNECTORS

This document outlines the cables required for the installation of the Citel EXTenders (6000, 7000)

#1 CABLE:

9 Pin M-F Straight Through Serial Cable, All pins straight through. One cable is supplied with the EXTender units.

USED WHERE:

Connection to the Console Port for configuration

Citel Part #: A-CDB9MF-LF

Blackbox Part #: 5 ft (1.5m), EDN12H-0005-MF

#2 CABLE:

DB-25 M-F Serial Connection, One cable is supplied with each of the multiple port units except the E-GWY2T-SUM

and E-7000T-RUM

USED WHERE:

WAN Connection to the CSU/DSU

Citel Part #: A-CDB25MF-1-LF

Blackbox Part #:

5 ft. EVN530-0005-MF

10 ft. EVN530-0010-MF

25 ft. EVN530-0025-MF

070707

Page 1 of 5

Need help?

Do you have a question about the EXTender 6000 and is the answer not in the manual?

Page 1 EXTENDER 6000 / 7000 CABLES & CONNECTORS This document outlines the cables required for the installation of the Citel EXTenders (6000, 7000) #1 CABLE: 9 Pin M-F Straight Through Serial Cable, All pins straight through. One cable is supplied with the EXTender units.
Page 2 DCE Ready Signal Ground Common Carrier Detect Receiver Clock (Return) Common Carrier Detect (Return) Common DTE Transmitter Clock (Return) Common Transmitter Clock (Return) Common Clear to Send (Return) Common Copyright 2007 Citel plc All Rights Reserved Source Common Common Source Source...
Page 3 #3 CONNECTOR: V.35 Winchester Adapter, this is not supplied by Citel. Only used in Serial WAN connection. WHERE USED: Convert from DB-25 Female (RS-530) to V.35 Male on CSU/DSU Citel Part #: n/a Blackbox Part #: FA059-R2 #4 CABLE: Amphenol Straight Through M-F Cable, not supplied by Citel.
Page 4: Where Used
WHERE USED: This cable is used to connect two T1 CSU/DSU’s (eg. Adtran TSU120) products in a back-to-back configuration. #8 CABLE: T1 Loopback Adapter, not supplied by Citel Technologies WHERE USED: For network WAN Loopback tests. 070707 Pin 1 -> pin 3, pin 2 -> pin 6, pin 3 -> pin 1, and pin 6 -> pin 2.
Page 5 #9: E-GWY2T-SUM / E-7000T-RUM, CABLES FOR ADD/DROP DATA, WAN TO DB60 ON CISCO ROUTER DB-25 DCE Serial WAN Cable F-F, one cable supplied by Citel for each unit Citel Part #: A-CDB25FF Blackbox Part #: 5 ft. EVN530-0005-FF 10 ft. EVN530-0010-FF 25 ft.
