General Warranty
Lilliput warrants that the product will be free from defects in materials and workmanship
for a period of 3 years (1 year for accessories) from the date of purchase of the product
by the original purchaser from the Lilliput Company. This warranty only applies to the
original purchaser and is not transferable to the third party. If the product proves
defective during the warranty period, Lilliput either will repair the defective product
without charge for parts and labor, or will provide a replacement in exchange for the
defective product. Parts, modules and replacement products used by Lilliput for warranty
work may be new or reconditioned like new performance. All replaced parts, modules
and products become the property of Lilliput.
In order to obtain service under this warranty, Customer must notify Lilliput of the defect
before the expiration of the warranty period. Customer shall be responsible for
packaging and shipping the defective product to the service center designated by Lilliput,
and with a copy of customer proof of purchase.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. Lilliput shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel
other than Lilliput representatives to install, repair or service the product; b) to repair
damage resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-Lilliput supplies; or d) to
service a product that has been modified or integrated with other products when the
effect of such modification or integration increases the time or difficulty of servicing the
product.
Please contact the nearest Lilliput's Sales and Service Offices for services or a complete
copy of the warranty statement.
For better after-sales service, please visit
www.owon.com.cn
and register the purchased
product online.
Excepting the after-sales services provided in this summary or the applicable warranty statements,
Lilliput will not offer any guarantee for maintenance definitely declared or hinted, including but not
limited to the implied guarantee for marketability and special-purpose acceptability. Lilliput should
not take any responsibilities for any indirect, special or consequent damages.
For more details, please refer to the user manual on the supplied CD, it can also be
downloaded at
www.owon.com.cn
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Waveform Generator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Owon Waveform Generator

  • Page 1 Please contact the nearest Lilliput's Sales and Service Offices for services or a complete copy of the warranty statement. For better after-sales service, please visit www.owon.com.cn and register the purchased product online. Excepting the after-sales services provided in this summary or the applicable warranty statements, Lilliput will not offer any guarantee for maintenance definitely declared or hinted, including but not limited to the implied guarantee for marketability and special-purpose acceptability.
  • Page 2: Table Of Contents

    Table of Contents 1.General Safety Requirements ..................1 2.Safety Terms and Symbols ..................2 3.Front/Rear Panel and User Interface ................. 3 Front Panel Overview ......................3 Rear Panel Overview ......................4 User Interface ........................5 4.General Inspection ....................7 Foot Stool Adjustment ......................7 5.Power-On Check .......................
  • Page 3: General Safety Requirements

    1.General Safety Requirements 1. General Safety Requirements Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent this product or any other products connected from damage. In order to avoid any contingent danger, this product is only used within the range specified.
  • Page 4: Safety Terms And Symbols

    2.Safety Terms and Symbols 2. Safety Terms and Symbols Safety Terms Terms in this Manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.
  • Page 5: Front/Rear Panel And User Interface

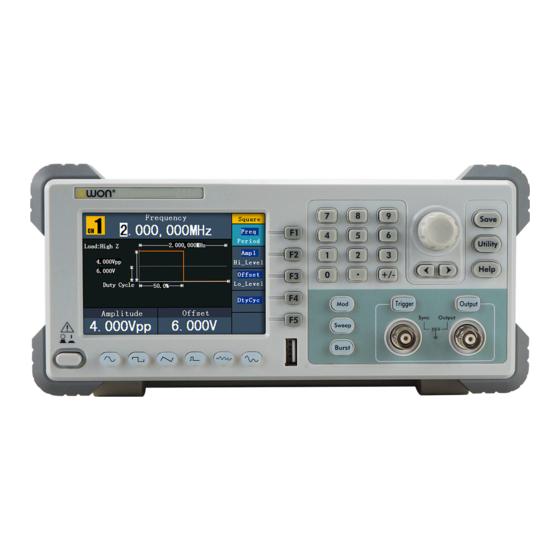

    3.Front/Rear Panel and User Interface 3. Front/Rear Panel and User Interface Front Panel Overview ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑮ ⑭ ⑯ ⑰ ⑱ Figure 3-1 Front panel overview (the model with "F" is shown) ①...
  • Page 6: Rear Panel Overview

    3.Front/Rear Panel and User Interface ⑩ Main output Output main signal terminal ⑪ Foot stool Make the instrument to be tilted for ease of operation ⑫ Trigger key Activate or deactivate the sync signal output. The button is lit when it is in the On state. ⑬...
  • Page 7: User Interface

    3.Front/Rear Panel and User Interface ③ Power switch Switch between 110 V and 220 V. ④ USB (type B) This can be used to connect a USB type B controller. connector Connect with an external device, such as connected to a PC and controlled via PC software.
  • Page 8 3.Front/Rear Panel and User Interface ⑧ Amplitude/high level, depends on the highlighted menu item on the right ⑨ Frequency/period, depends on the highlighted menu item on the right ⑩ Load, High Z represents high resistance...
  • Page 9: General Inspection

    4.General Inspection 4. General Inspection After you get a new Waveform Generator, it is recommended that you should make a check on the instrument according to the following steps: 1. Check whether there is any damage caused by transportation. If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests.
  • Page 10: Power-On Check

    5.Power-On Check 5. Power-On Check AC Power Input Setting Adopt 100 - 120 VAC or 220 - 240 VAC power source. Users should regulate the voltage scale of the Power Switch according to the standards in their own country (see Figure 3-2) at the rear panel.
  • Page 11: Quick Start

    To set signals The waveform generator is available to set and output Sine, Square, Ramp, Pulse, Noise and Arbitrary signals. Press Waveform selection buttons on the front panel: Sine Square...
  • Page 12: To Generate The Modulated Waveform (Only For The Model With "F")

    To Generate the Modulated Waveform (Only for the model with "F") Press the Mod button to generate modulated waveform. The waveform generator can modulate waveform using AM (Amplitude Modulation), FM (Frequency Modulation), PM (Phase Modulation), and FSK (Frequency Shift Keying). To turn off the modulation, press the Mod button.
  • Page 13: To Manage File

    6.Quick Start Parameters as Burst Period, Start Phase, Cycles/Infinite and Source are allowed to be set in N-Cycle mode; while Start Phase and Polarity are available in Gated mode. To Manage File Press Save function button to enter the file system. You can view the waveform files, create a new folder, and perform the file operations such as delete, rename, copy and paste.
  • Page 14: To Set The Sync Output

    6.Quick Start Language Switch display languages. Power On Switch between Default/Last Set to Default Set all the settings to default. Beep On is to activate the sound when the system informs you. System Info View the Version and Serial number. Clock Source Switch between Internal/External.
  • Page 15: Communication With Pc

    Waveform Generator to the USB port of a PC. (2) Install the driver: When the Waveform Generator is turned on, a dialog will appear on the PC screen and guide you to install the USB driver. The driver is in the "USBDRV"...
  • Page 16: Appendix

    8.Appendix 8. Appendix Appendix A: Enclosure A power cord that fits the standard of the destination country  A USB cable  A CD (PC link application software)  A Quick Guide  A BNC/Q9 cable  Appendix B: General Care and Cleaning General Care Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.
