Basalte 092-01 Installation Manual

Flush mount for Sentido
Installation Manual

Description

The flush mount for Sentido (092-01) is an adapter for in-wall flush installation of a
Sentido keypad. Enzo finishes are not compatible.
The flush mount for Sentido securely mounts the keypad while allowing easy access,
insertion and exertion. The adapter is supplied unpainted. The flush mount is designed
to be installed in a drywall. For installation in concrete/brickwall, first install an
appropriate box for flush mount in concrete wall. (092-11 not included)

Parts list

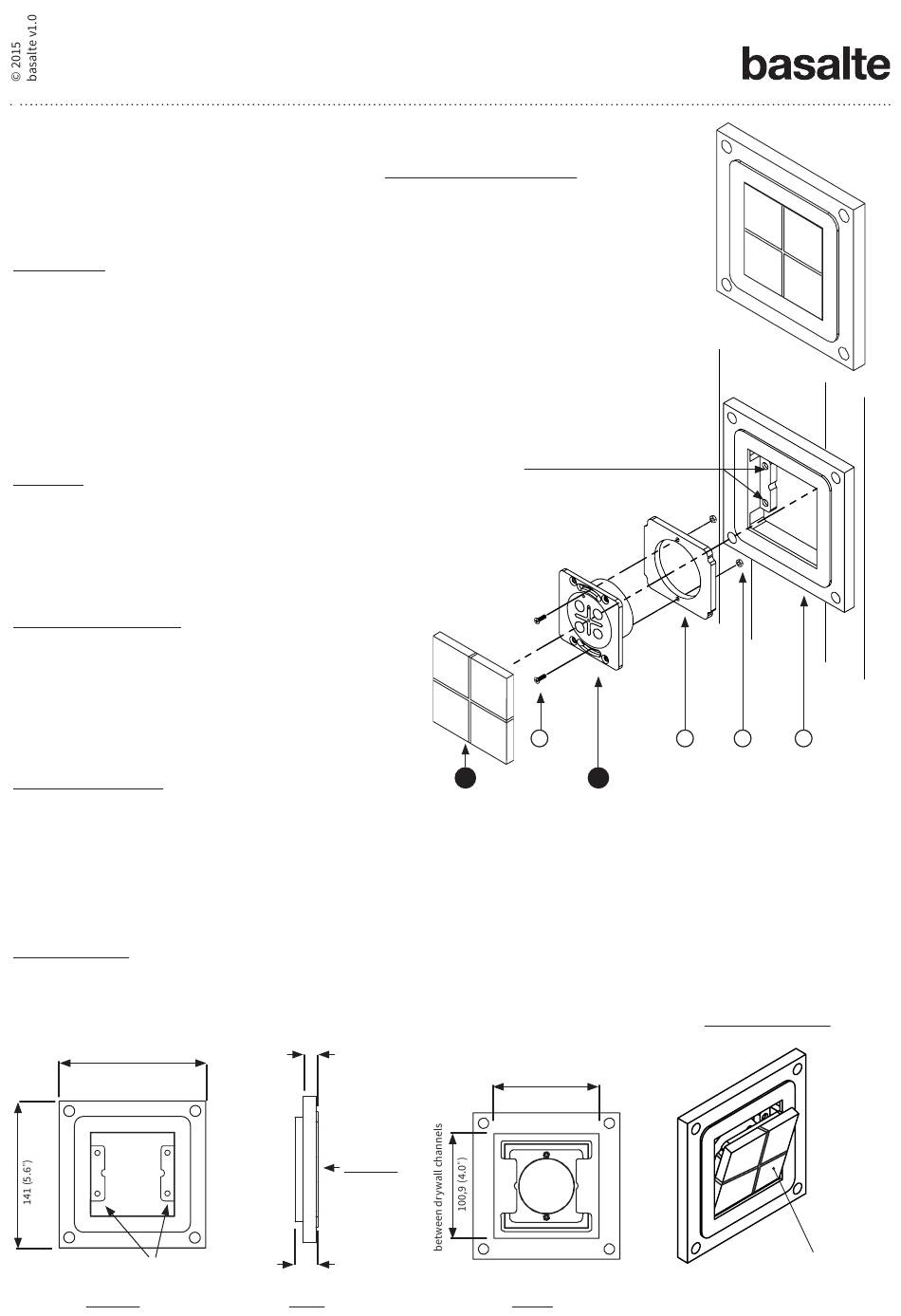

1. Wall adapter
2. Sentido adapter
3. (2x) M2 nut
4. (2x) M3 screw

Compatible products

B. Sentido cover (201-xx or 202-xx) not included
A. Sentido (200-xx) not included

Safety instructions

• Turn off the power in areas where you will be drilling to avoid electric shock.
• Treatments such as sanding, drilling, painting, etc. may generate hazardous dust and/or fumes. Work in
well ventilated areas. Use suitable personal protective equipment (dust mask, goggles) as necessary.

Key properties

• Dimensions (W/H/D) : 141mm (5.6")/141mm (5.6")/22mm
• Weight: 0.19kg (0.42lbs.)
141 (5.6")
magnets holding the Sentido adapter
FRONT
Flush mount for Sentido
Model No. 092-01
(keypad not included)
drywall thickness 12,7 (0.5")
FRONT
22 (0.87")
SIDE
magnets holding the Sentido adapter
4
B A
between drywall channels
102 (4.0")
REAR
2 3 1
Remove keypad
PUSH To RELEASE
