Basalte 0610-20 Installation Manual

GIGABIT PoE ADAPTER
Installation Manual

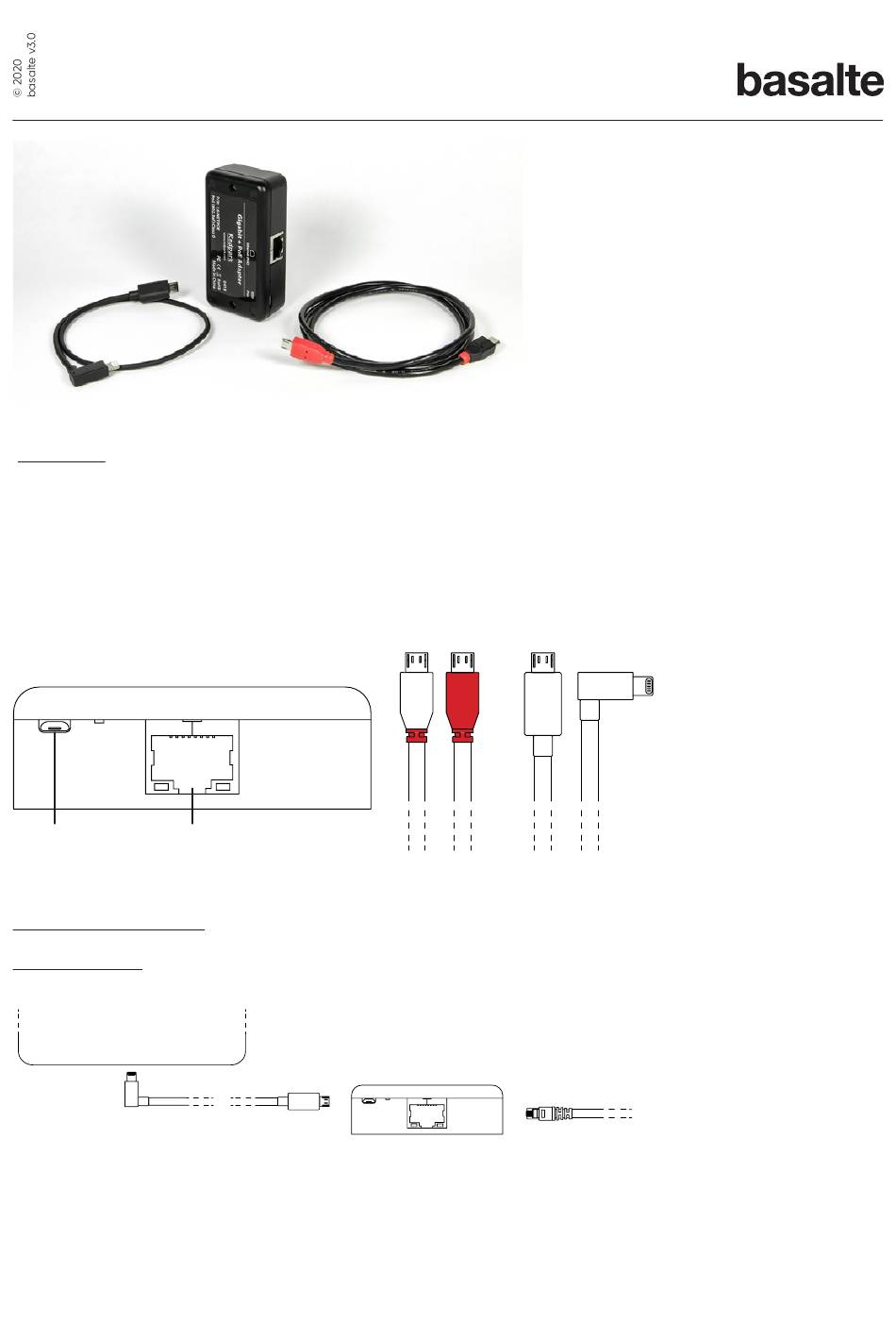

Description
The Gigabit PoE adapter connects an iOS device to ethernet and uses power over ethernet (PoE) to charge the
device. This enables an iOS device to receive both data and power over a single Ethernet cable when connected
to a PoE-enabled switch or a PoE injector.
The Gigabit PoE adapter is instantly recognized by the iOS device and can be configured using the settings app
on the device when running iOS10 (or later)
2
How to install (3 options):
1. With Eve frame
a
a Eve frame (06xx-xx) (not included) Not compatible with Eve Pro
b Micro USB to lightning cable
c Gigabit + PoE adapter
d RJ45 cable from PoE switch (not included)
1
b
Before operating the unit, please read this
manual thoroughly and keep it for future
reference.
Model No. 0610-20
Caution: any changes or modifications
not expressly approved in this manual
could void your authority to operate this
equipment.
3
c
4
1 RJ45 PoE cable in
2 Micro USB out
3 Micro USB to micro USB
4 Micro USB to lightning cable
d
