Dormakaba 9600-K6 MRD Quick Manual

Model No:9600-K6 BLE
FCC ID:NVI-KT9600K6B
EN
IC:11038A-KT9600K6B

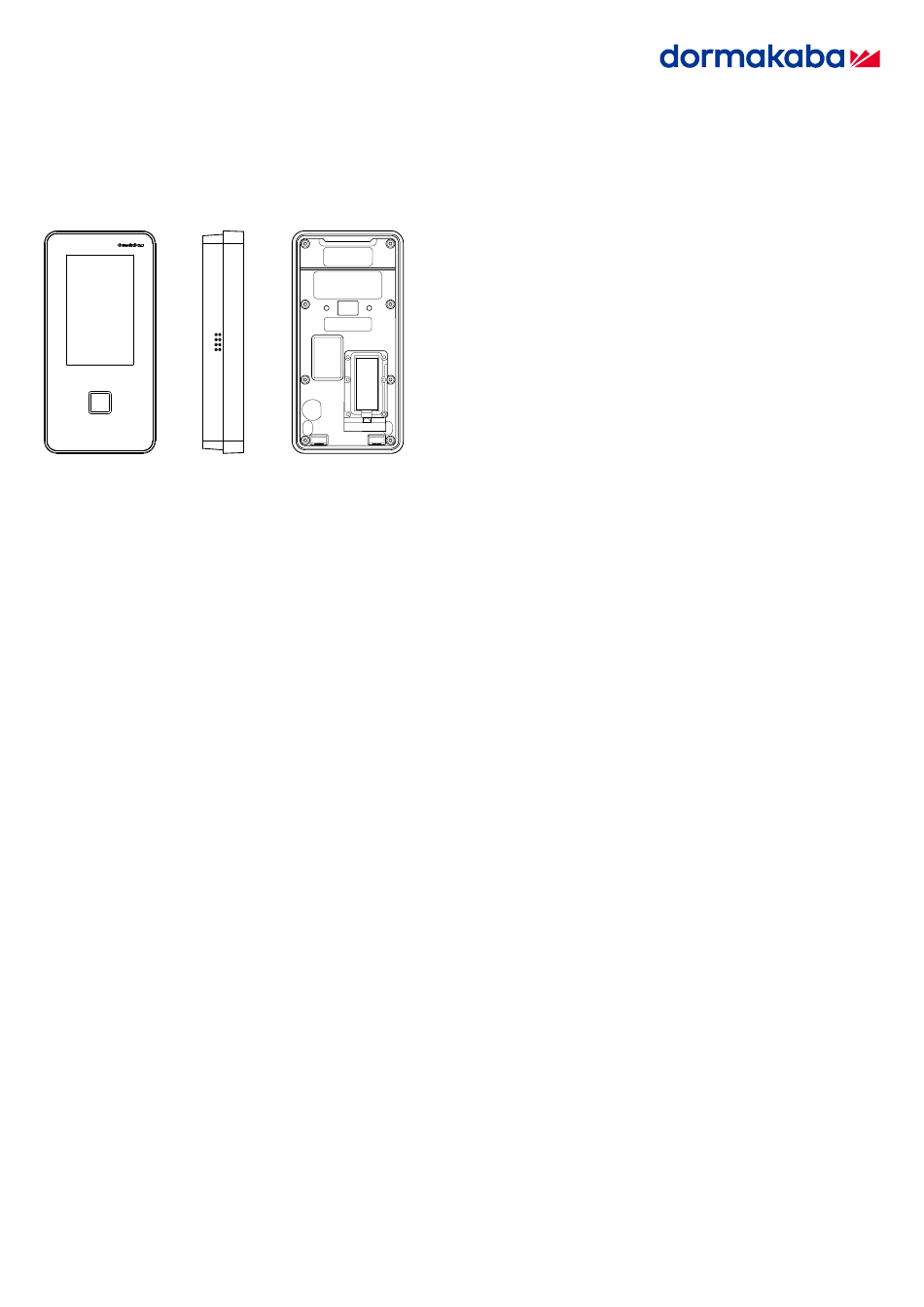

Terminal 96 00
Quick Guide
About this quick guide
Validity
This quick guide describes the product
Product designation: Terminal 96 00
Product ID: 9600-K6
Item number: 04079601
Date of manufacture: From September 2019
Target group
This quick guide should only be used by skilled persons trained by
the manufacturer.
Additional documentation
The content of this quick guide is an excerpt from the technical
manual and is limited to essential information about the product
and how to install it.
Details on functions, commissioning and parameter setting of the
product can be found in the following documentation:
• Terminal 96 00 - Technical Manual
• B-Client HR20/HR15/AC15 - reference manual
• Service interface - reference manual
Additional documentation is available on the Internet at the
dormakaba website. The technical manuals are located in a protec-
ted area. They can be accessed via the user account of trained pro-
fessionals. However, you can also create a temporary account.
https://www.dormakaba.com/extranet-emea-en
Safety instructions
Designated use
The product is only intended for use as described in chapter
"Product description". Any use beyond that is considered contrary
to its designated use. The manufacturer cannot be held liable for
damage resulting from such use.
Staff qualification
The actions described in this quick start guide must only be carried
out by skilled persons in accordance with EN 62368-1.
Skilled person is the designation for people who have the appropri-
ate technical training and experience in setting up the equipment.
Skilled persons are expected to use their training and experience to
identify any risks to themselves and others that may arise while
carrying out these activities, and to minimise these risks as far as
possible. It is the skilled person's responsibility to ensure that the
conditions stated by the manufacturer and the applicable regula-
tions and standards are complied with when carrying out these ac-
tions.
04044303 - 06//2019 - DRAFT
Assembly and installation
The product should only be installed in locations which fulfil the en-
vironmental and technical conditions specified by the manufac-
turer.
The manufacturer is not liable for damage arising due to improper
handling or incorrect installation.
Environmental protection
It is prohibited to dispose of the device in your domestic waste.
Used devices contain valuable materials that should be recycled.
Properly dispose of used devices.

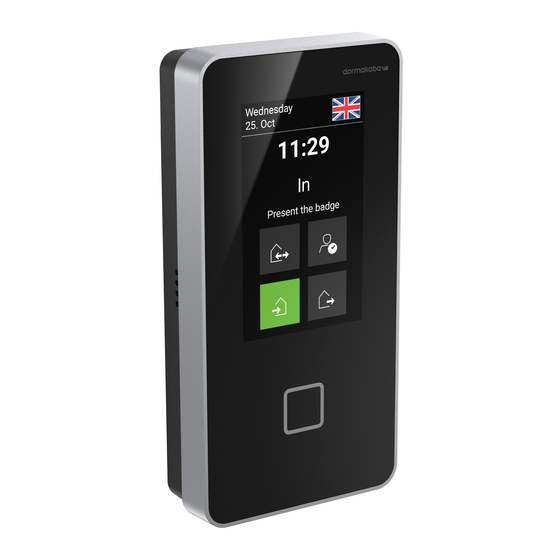

Product description
The terminal 96 00 can be used for time and attendance and as
CardLink update terminal.
Depending on the focus of application, B-Client AC15, B-Client
HR15 or B-Client HR20 terminal software is available. The operat-
ing system used of the terminal 96 00 is 'Android'.
To display information, the terminal has a graphic 4" TFT colour
display with a resolution of 480 x 800 pixels. A capacitive input
field extends over the display surface and is operated by touching
the glass front.
The person-related data is recorded by a contactless RFID reader.
In addition, there is the possibility of booking with a smartphone.
The communication with the superior system takes place via Ether-
net. Alternatively and optionally, communication can also take
place via radio network or WLAN.
The terminal is supplied with Power over Ethernet (PoE).
Technical data
System
Operating system
• Android version 5.0.2 (Lollipop)
CPU
• Freescale i.MX6DualLite processor
Memory
• 2 GByte DDR3 RAM
• 8 GByte eMMC Flash
Parameters and data records are retained without supply voltage.
Real-time clock
The device has an integrated real-time clock. The function of the
RTC is ensured for about 2 months without power supply of the
device.
Display
• TFT LCD display module
• Size: 4.0"
• Resolution: 480 x 800 pixels (16:9 diagonal)
• Colour depth: 24-bit (true colour)
• Luminance: 350 cd/m²
• Backlit with 8 LEDs
Touch screen
• 4" PCAP touch screen over the complete display
Audio
• Integrated loudspeaker (1 W)
Interfaces/Communication
Ethernet interface
• IEEE802.3 compatible10BASE-T/100BASE-TX /1000BASE-T
Auto sensing, Auto MDIX
1/4
