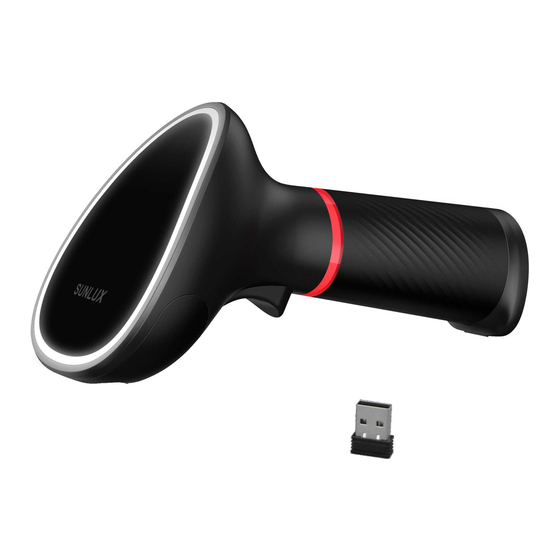

Wireless 2d barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wireless 2D Barcode Scanner
Full Manual
(Wireless Part)
V4.4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-9600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunlux XL-9600

Summary of Contents for Sunlux XL-9600

  • Page 1 Wireless 2D Barcode Scanner Full Manual (Wireless Part) V4.4...

  • Page 2: Table Of Contents

    Content Version No..............................3 Factory Default Setting..........................3 Output Mode...............................3 Data Transfer Mode..........................3 Communication Mode..........................4 USB interface type............................5 USB-HID Data type............................5 Inventory Mode............................5 Sound Set..............................6 Sleep Time Set............................6 GS (group separator) characters conversion................... 8 Letter case conversion..........................8 Language Set............................. 9 2.4G Pairing..............................12 Bluetooth HID Pairing..........................12 Show or Hide the Keyboard in IOS....................

  • Page 3: Version No

    Version No. Version Number Factory Default Setting Restore Factory Default Note: the asterisk(*) is the factory default. Output Mode USB priority output(*) Note: When inserting USB cable, data only output by USB. Output at the same time Note: USB and 2.4G or Bluetooth output at the same time (depending on the communication mode), in which 2.4g or Bluetooth output is unsuccessful, alarm will be given.

  • Page 4: Communication Mode

    Inventory Mode Note: The scanned barcodes will be saved automatically, please scan setting codes if you need to view statistical data or upload data. Automatic storage mode Note: When the distance is beyond, the data will be saved automatically. please scan setting code ‘upload all data’...

  • Page 5: Usb Interface Type

    Please download or develop low-power Bluetooth SPP transmission software if you need to use this function. USB interface type USB-HID(*) USB-VCOM USB-HID Data type Transfer keyboard function keys Send ASCII Inventory Mode Clear All Saved Data Statistical Information...

  • Page 6: Sound Set

    Upload All Data Sound Set Mute High(*) Medium Sleep Time Set No Sleep Sleep Now...
  • Page 7 1Min(*) 2Min 5Min 10Min 30Min Note: Keep pressing the button until you hear the first beep for about 8 seconds, release the button and the scanner will enter sleep.

  • Page 8: Gs (Group Separator) Characters Conversion

    GS (group separator) characters conversion None(*) GS converts to <GS> GS converts to | GS converts to ] GS converts to ^] Letter case conversion Normal Letter Case(*)

  • Page 9: Language Set

    All Uppercase All Lowercase Case Inversion Language Set USA(*) German France Italy...
  • Page 10 Canadian Spain Brazil Sweden Portugal Belgium TurkeyF TurkeyQ...
  • Page 11 Italian14 Netherlands Poland Finland Latin America Serbia Hungary...

  • Page 12: 2.4G Pairing

    Denmark Norway Japan 2.4G Pairing 2.4G Pairing Bluetooth HID Pairing Bluetooth HID Pairing Show or Hide the Keyboard in IOS Show or hide the virtual keyboard under IOS system Bluetooth HID Transfer Rate...

  • Page 13: Data Editor

    Fast Medium(*) Ultra-low speed Data Editor Suffix Terminator character Setting Suffix-None Suffix-Enter(*) Suffix-Line...

  • Page 14: Hidden Character Settings

    Suffix-Tab Suffix-Enter&Line Hidden character Settings Hide front character Hide back character Hide front character Steps: (1) Scan the setting code "Hide front character" (2) Set the first few digits of the sequence to hide, and use two data codes to represent the decimal number XX (3) Set how many digits (including their own data) are hidden from the first few digits in the sequence, using two digits...

  • Page 15: Add Prefix And Suffix Settings

    Look up the data code table and scan the data code table ‘0’ and ‘5’ in turn; (4) Finally, scan the setting code "Saved and Finished Set". Remarks: Only operate (1) and (4), then you can clear the character settings before hiding or restore the factory.
  • Page 16 Saved and Finished Set Add Prefix Setting Steps: (1) Scan the setting code "Add Prefix setting" (2) Set the first few digits of the sequence to start inserting characters (including its own data), use two-digit "data code" Represents the decimal number XX (the first setting can be omitted, which is equivalent to setting "0", "1"), Please check the corresponding data code table (3) Scan the content that needs to be added in turn, please find the ASCII code table...

  • Page 17: Hiding Front Character Shortcut Setting

    2. In the original bar code, the suffix "12345" is added after the character ‘E’, while the original bar code The position of the code content ‘E’ is the 10th last character, so the data code "XX" For "1", "0", look up the data code table, and scan the barcode corresponding to the data code in turn.

  • Page 18: Hiding Back Character Shortcut Setting

    Hide the first 6 bits Hide the first 7 bits Hide the first 8 bits Hiding back character shortcut setting Hide the back 1 bit Hide the back 2 bits Hide the back 3 bits Hide the back 4 bits...

  • Page 19: Data Code Table

    Hide the back 5 bits Hide the back 6 bits Hide the back 7 bits Hide the back 8 bits Data Code Table...

  • Page 21: Ascii Code Table

    ASCII Code Table Null SOH(start of headline) STX (start of text)
  • Page 22 " &...
  • Page 23 < >...
  • Page 25 Caps Lock...
  • Page 26 PrintScreen Scroll Lock Pause Insert Home PageUp Delete PageDown RightArrow LeftArrow DownArrow UpArrow Num Lock(keypad) /(keypad) *(keypad) -(keypad) +(keypad) Enter(keypad) 1(keypad) 2(keypad) 3(keypad)

  • Page 27: Add Ctrl、Shift、Alt、Gui Function Key

    4(keypad) 5(keypad) 6(keypad) 7(keypad) 8(keypad) 9(keypad) 0(keypad) .(keypad) Add Ctrl、Shift、Alt、GUI function key Note: When there is a press, there must be a release. Press and release must be used in pairs Otherwise, there will be hot key issues such as data not uploading and computer lock screen L-Ctrl Press L-Shift Press L-Alt Press...
  • Page 28 R-Alt Release R-GUI Release...
