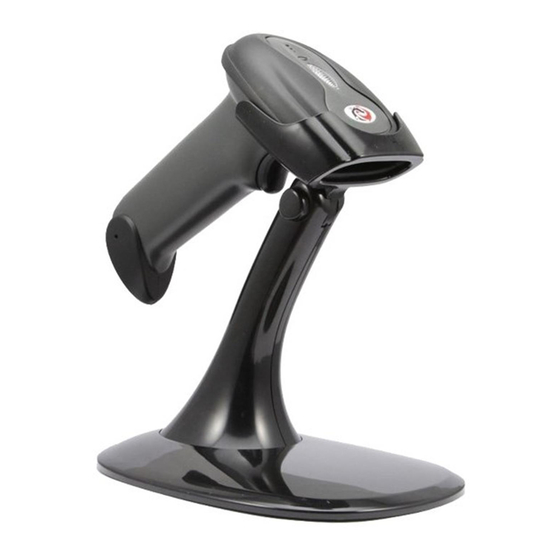

Sunlux XL-626A User Manual
  1. Manuals
  2. Brands
  3. Sunlux Manuals
  4. Barcode Reader
  5. XL-626A
  6. User manual

Sunlux XL-626A User Manual

Hide thumbs

Advertisement

Table of Contents

Barcode Scanner
User Manual
V6.6.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-626A and is the answer not in the manual?

Questions and answers

Bill Ritch
June 1, 2025

How do I silence the audio part of the scanner?

0
1 comments:
Mr. Anderson
June 1, 2025

To silence the audio (decode beep) on the Sunlux XL-626A scanner, enable Silent Mode by using the command W400000. Note that this setting is temporary and will be lost when the scanner is powered down or rebooted.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Sunlux XL-626A

Summary of Contents for Sunlux XL-626A

  • Page 1 Barcode Scanner User Manual V6.6.2...
  • Page 2 CONTENTS ....................................................................................................................................................................................................................
  • Page 3 Copyright All right reser ved by our company, reprint,copy or sales of this manual are forbidden without our company permission. Responsibility Clause We are not responsibility for errors,omissions and variation without notice.

  • Page 4: System Setting

    Chapter 1 System Setting Enable/Disable Barcode Programming Scanning the Enter Setup/Exit Setup barcode can enable barcode programming. After barcode programming is enabled, you can scan a number of programming barcodes to configure your scanner. Barcode programming is on by default. In real application, programming barcodes hardly overlap witn h on- programming barcodes, so it is unnecessar y to d isable programming each...
  • Page 5 Transmit Programming Barcode Data W060F06 *Do Not Transmit Programming Barcode Data W060F00 Factor y Defaults Scanning the following barcode can restore the scanner to the factor y defaults. You may need to reset your scanner when: 1. scanner is not properly configured so that it fails to decode barcodes;...
  • Page 6 Scan Mode Manual Mode:A trigger pull activates a decode session. The decode session continues until the barcode is decoded or the trigger is released or the decode session timeout expires. *Manual Mode W030000 Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt.
  • Page 7 Continuous Mode Continuous Mode: A trigger press activates the scanner to scan and decode at user-specified inter vals, i.e. the timeout between decodes. Each decode session lasts until barcode is decoded or decode session timeout expires. To suspend/resume the operation, simply press the trigger.
  • Page 8 Timeout between Decodes:This parameter sets the timeout between decode sessions. When a decode session ends, next session will not happen until the timeout between decodes expires. It is programmable in 0.1s increments from 0.0s to 25.5s. The default timeout is 1.0s. Timeout between Decodes M00031C Example: Set the timeout between decodes to 5s...
  • Page 9 Reread Delay sets the time period before the scanner can read the same barcode a second time. It protects against accidental rereads of the same barcode. This parameter is programmable in 0.1s increments from 0.1s to 25.5s. The default delay is 3.0s. If the parameter is set to 0, the delay is infinite.
  • Page 10 Sense Mode Sense Mode: The scanner activates a decode session ever y time when it detects a change in ambient illumination and meets the requirement of the image stabilization timeout. Decode session continues until barcode is decoded or the decode session timeout expires. A trigger pull can also activate a decode session.
  • Page 11 Image Stabilization Timeout: The scanner waits for the image stabilization timeout to expire before activating a decode session ever y time it detects a change in ambient illumination. This parameter is programmable in 0.1s increments from 0.0s to 25.5s. The default timeout is 0.4s.
  • Page 12 Reread Same Barcode with No Delay: The scanner is allowed to reread same barcode, ignoring the Reread Same Barcode with a Delay: The scanner is not allowed to reread same barcode before the reread delay expires. To disable rereads of same barcode, enable the Reread Same Barcode with a Delay and set the delay to 0.
  • Page 13 Sensitivity: This parameter specifies the degree of acuteness of the scanner ’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the ambient environment.
  • Page 14 Command Trigger Mode Command Trigger Mode: Decode session is activated by a host command. The decode session continues until the barcode is decoded or the decode session time out expires. Command Trigger Mode W030001 Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt.
  • Page 15 Security Level This parameter specifies the number of times to decode a barcode during a scan attempt. The higher the security level, the lower the error rate and decoding efficiency. Set Security Level to W030A00 Set Security Level to W030A01 Set Security Level to W030A02 Set Security Level to 3...
  • Page 16 Good Read Beep Good Read Beep Off W041200 *Good Read Beep On W041204 Good Read Beep Frequency WFF10DA *Medium WFF104B High WFF1025...
  • Page 17 Good Read Beep Duration 40ms WFF111F *80ms WFF111E 120ms WFF111D Decode Result Notification *Enable Decode Result Notification W203120 Disable Decode Result Notification W203100...
  • Page 18 Other Settings You can change the following parameter settings temporarily and the changes will be lost when you power down or reboot the scanner. Silent Mode On W400000 *Silent Mode Off W400040 Note: This feature is only applicable to decode beep and will be automatically disabled when the scanner is powered down or rebooted.

  • Page 19: Chapter 2 Communication Settings

    Chapter 2 Communication Settings Introduction The scanner provides an RS-232 interface, a USB interface and a PS/2 interface (hardware version: V2 or higher) to communicate with the host device. The host device can receive scanned data and send commands to control the scanner or to access/alter the configuration information of the scanner via the RS-232 or USB or PS/2 interface.
  • Page 20 4800 WFFD9D2 14400 WFFD9D4 19200 WFFD9D5 38400 WFFD9D6 57600 WFFD9D7 115200 WFFD9D8...
  • Page 21 Parity Check *None W062900 Even Parity W062906 Odd Parity W062904 Stop Bit *Stop Bit W012900 2 Stop Bits W012901...
  • Page 22 Data Bit 8 Data Bits W082908 *8 Data Bits, No Parity, 1 Stop Bit W0F2908 8 Data Bits, Even Parity, 1 Stop Bit W0F290E 8 Data Bits, Odd Parity, 1 Stop Bit W0F290C 8 Data Bits,No Parity, 2 Stop Bits W0F2909 8 Data Bits, Even Parity , 2 Stop Bits...
  • Page 23 8 Data Bits, Odd Parity, 2 Stop Bits W0F290D 7 Data Bits W082900 7 Data Bits, Even Parity, 1 Stop Bit W0F2906 7 Data Bits, Odd Parity, 1 Stop Bit W0F2904 7 Data Bits, Even Parity, 2 Stop Bits W0F2907 7 Data Bits, Odd Parity, 2 Stop Bits W0F2905...
  • Page 24 USB Interface When the scanner is connected to a host device through its USB interface, USB HID-KBW is enabled by default. User can switch between options – USB DATAPIPE, USB HID-KBW, USB COM Port Emulation and HID-POS, upon actual need. USB HID- W070901 *Standard Keyboard...
  • Page 25 Function Key Mapping When Function Key Mapping is enabled, function character (0x00 - 0x1F) are sent as ASCII sequences over the numeric keypad. Function Key Mapping W031A01 1. CTRL Make 2. Press function key (Refer to the ASCII Function Key Mapping Table on the following page) USB Country Keyboard Types Keyboard layouts var y from countr y to countr y.
  • Page 26 3-Brazil WFF1902 4-Canada WFF1903 5-Czech WFF1904 6-Denmark WFF1905 7-Finland WFF1906 8-France WFF1907...
  • Page 27 9-Austria WFF1908 10-Greece WFF1909 11-Hungary WFF190A 12-Israel WFF190B 13-Italy WFF190C 14-Latin America WFF190D...
  • Page 28 15-Netherland WFF190E 16-Norway WFF190F 17-Poland WFF1910 18-Portugal WFF1911 19-Romania WFF1912 20-ussia WFF1913...
  • Page 29 21-Slovakia WFF1915 22-Spain WFF1916 23-Sweden WFF1917 24-Switzerland WFF1918 25-Turkey1 WFF1919 26-Turkey2 WFF191A...
  • Page 30 27-UK WFF191B 28-Japan WFF191C Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. *No Delay WC01A00 Short Delay (5ms) WC01A40 Medium Delay (10ms) WC01A80 Long Delay (15ms) WC01AC0...
  • Page 31 Convert Case This parameter is valid when the Standard Keyboard or Function Key Mapping is enabled. No Case Conversion W381A00 Convert All to Upper Case W381A20 Convert All to Lower Case W381A30 Invert Upper and Lower Case Characters W381A08...
  • Page 32 Emulate Numeric Keypad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated as keystroke on numeric keypad, whereas sending other character like “+”, “_”, “*”...
  • Page 33 USB COM Port Emulation This feature allows the host to receive data in the way as a serial port does. However, you need to set communication parameters on the scanner to match the Host requirements. A driver is required for this feature. USB COM Port Emulation W070902 USB DataPipe...
  • Page 34 HID-POS The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than USB HID-KBW. Features:  HID based, no custom driver required.  Way more efficient in communication than USB HID-KBW and traditional RS-232 interface.

  • Page 35: Chapter 3 Data Formatting

    Chapter 3 Data Formatting Introduction After a successful barcode read, a string containing numbers, letters or symbols will be returned. In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned.
  • Page 36 Prefix Enable Custom Prefix W043104 able Custom Prefix W043100 Set Custom Prefix W000100 Enable AIM ID Prefix W186018 Disable AIM ID Prefix W186000...
  • Page 37 Enable CODE ID Prefix W023102 *Disable CODE ID Prefix W023100 Restore All Default Code IDs WFFD9C2 Set Code ID Barcodes Set Code 128 Code ID M002000 UCC/EAN- 128 Code ID M002001 AIM 128 Code ID M002002...
  • Page 38 Set EAN-8 Code ID M002004 Set EAN-13 Code ID M002005 Set ISSN Code ID M002006 Set ISBN Code ID M002007 Set UPC-E Code ID M002008 Set UPC-A Code ID M002009...
  • Page 39 Set Interleaved 2 of 5Code ID M00200A Set ITF-6 Code ID M00200B Set ITF-14 Code ID M00200C Set Deutsche 14 Code ID M00200D Set Deutsche 12 Code ID M00200E Set Matrix 2 of 5 Code ID M00200F...
  • Page 40 Set Industrial 25 Code ID M002010 Set Standard 25 Code ID M002011 Set Code 39 Code ID M002012 Set Codabar Code ID M002013 Set Code 93 Code ID M002014 Set Code 11 Code ID M002015...
  • Page 41 Set Plessey Code ID M000216 Set MSI-Plessey Code ID M000217 RSS-14 Code ID M000218 RSS-Limited Code ID M000219 Set RSS-Expand Code ID M00021A...
  • Page 42 Suffix Enable Custom Suffix W083108 *Disable Custom Suffix W083100 Set Custom Suffix M000101 *Enable Terminating Character Suffix W103110 Disable Terminating Character Suffix W103100...
  • Page 43 Terminating Character 0x0D WFFD9C3 Terminating Character 0x0D,0x0A WFFD9C4 Terminating Character 0x0 WFFD9C5 Set Terminating Character Suffix M000102...
  • Page 44 Chapter 4 Symbologies Introduction Ever y symbology (barcode type) has its own unique attributes.This chapterprovides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.
  • Page 45 Restore the Factory Defaults UCC/EAN-128 WFFD991 Enable UCC/EAN-128 W036203 Disable UCC/EANI-128 W036200 Decode as Code 128 W036201 Restore the Factory Defaults of AIM128 WFFD992 Enable AIM128 W036302...
  • Page 46 Disable AIM128 W036301 Decode as Code 128 W036300 Restore the Factory Defaults EAN-8 WFFD994 *Enable EAN-8 W016501 DisableEAN-8 W016500...
  • Page 47 Restore the Factory Defaults of ISSN WFFD966 Enable ISSN W036702 *Disable ISSN W036700 Decode as EAN-13 W036701...
  • Page 48 Restore theFactory Defaults of ISBN WFFD997 Enable ISBN W036802 *Disable ISBN W036800 Decode as EAN-13 W036801 Restore the Factory Defaults of UPC-A WFFD999 *Enable UPC-A W036B02...
  • Page 49 Disable UPC-A W036B00 Decode as EAN-13 W036B01 Restore the Factory Defaults of Interleaved 2 Of 5 WFFD99A *Enable Interleaved 2 of 5 W016C01 Disable nterleaved 2 of 5 W016C00...
  • Page 50 Restore the Factory Defaults of ITF-6 WFFD99B Disable ITF-6 W036D01 Enable ITF-6 But Do Not Transmit Check Digit W036D02 Enable ITF-6 and Transmit Check Digit W036D0A Restore theFactoryDefaults of ITF-14 WFFD99C Disable ITF-14 W036E01...
  • Page 51 Enable ITF-14 But Do Not Transmit Check Digit W036E02 Enable ITF-14 and Transmit Check Digit W036E0A Restore the FactoryDefaults of Deutsche 14 WFFD99D Disable Deutsche 14 W036F01 Enable Deutsche14 But Do Not Transmit Check Digit W036F02 Enable Deutsche 14 and Transmit Check Digit W036F0A...
  • Page 52 Restore the Factory Defaults of Deutsche 12 WFFD99E Disable Deutsche 12 W037001 Enable Deutsche 12 But Do Not Transmit Check Digit W0B7002 Enable Deutsche 12 and Transmit Check Digit W0B700A Restore the Factory Defaults Matrix 2 of 5 WFFD99F *Enable Matrix 2 of 5 W017101...
  • Page 53 Disable Matrix 2 of 5 W017100 Restore the Factory Defaults of Industrial 25 WFFD9A0 Enable Industrial 25 W017201 Disable Industrial 25 W017200 Restore the Factory Defaults of Standard 25 WFFD9A1 *Enable Standard 25 W017301...
  • Page 54 Disable Standard 25 W017300 Restore the Factory Defaults Code 39 WFFD922 *Enable Code 39 W017401 Disable Code 39 W017400 *Enable Code 39 Full ASCII W207402 Disable Code 39 Full ASCII W207400...
  • Page 55 Restore the Factory Defaults of Codabar WFFD9A3 *Enable Codabar W017501 Disable Codabar W017500 Restore the Factory Defaults Code 93 WFFD9A4 *Enable Code 93 W017601 Disable Code 93 W017600...
  • Page 56 Restore the Factory Defaults Code 11 WFFD9A5 Enable Code 11 W017701 *Disable Code 11 W017700 Restore the Factory Defaults Plessey WFFD9A6 Enable Plessey W017801 *Disable Plessey W017800...
  • Page 57 Restore the Factory Defaults MSI-Plessey WFFD9A7 Enable MSI-Plessey W017901 *Disable MSI-Plessey W017900 Restore the Factory Defaults RSS-14 WFFD9A8 *Enable RSS-14 W017A01 Disable RSS-14 W017A00...
  • Page 58 Restore the Factory Defaults RSS-Limited WFFD9A9 *Enable RSS-Limited W017B01 Disable RSS-Limited W017B00 Restore the Factory Defaults RSS Expand WFFD9AA *Enable RSS-Expand W017C01 Disable RSS-Expand W017C00...
  • Page 59 Enable EAN-8 Zero Extend C06540 *Disable EAN-8 Zero Extend C06500 Convert EAN-8 to EAN-13 C06580 Restore the Factory Defaults of EAN-13 WFFD995 *Enable EAN-13 W016601 Disable EAN-13 W016600...
  • Page 60 Restore the Factory Defaults of UPC-E WFFD998 *Enable UPC-E W016901 Disable UPC-E W016900 Enable UPC-E Extend C06940 *Disable UPC-E Extend C06900 Convert UPC-E to UPC-A C06980...
  • Page 61 *Enable Code 39 Full ASCII W207420 Disable Code 39 Full ASCII W207400...
  • Page 62 Set Length Range Set the Minimum Length for Code 128 M000301 Set the Maximum Length for Code 128 M000300 Set the Minimum Length for UCC/EAN-128 M000303 Set the Maximum Length for UCC/EAN-128 M000302 Set the Minimum Length for AIM 128 M000305 Set the Maximum Length for AIM 128...
  • Page 63 Set the Minimum Length for Interleaved 2 of 5 M000307 Set the Maximum Length for Interleaved 2 of 5 M000306 Set the Minimum Length for Matrix 2 of 5 M000309 Set the Maximum Length for Matrix 2 of 5 M000308 Set the Minimum Length for Industrial 25 M00030B...
  • Page 64 Set the Minimum Length for Industrial 25 M00030D Set the Maximum Length for Industrial 25 M00030C Set the Minimum Length for Code 39 M00030F Set the Maximum Length for Code 39 M00030E Set the Minimum Length for Codabar M000311 Set the Maximum Length for Codabar M000310...
  • Page 65 Set the Minimum Length for Code 93 M000313 Set the Maximum Length for Code 93 M000312 Set the Minimum Length for Code 11 M000315 Set the Maximum Length for Code 11 M000314 Set the Minimum Length for Plessey M000317 Set the Maximum Length for Plessey M000316...
  • Page 66 Set the Minimum Length for MSI-Plessey M000319 Set the Maximum Length for MSI-Plessey M000318 Example: Set the scanner to decode MSI- Plessey barcodes containing between 8 and 12 characters. 1. Scan the Enter Setup barcode. 2. Scan the Set the Minimum Length barcode. 3.

  • Page 67: Transmit Check Digit

    Transmit Check Digit Transmit EAN- 8 Check Digit W046504 Do Not Transmit EAN-8 Check Digit W046500 Transmit EAN- 13 Check Digit W046604 Do Not Transmit EAN-13 Check Digit W046600 Transmit UPC- E Check Digit W046904 Do Not Transmit UPC-E Check Digit W046900...
  • Page 68 *Transmit UPC-A Check Digit W086B08 Do Not Transmit UPC-A Check Digit W086B00 Check Digit Verification Example: Set the scanner for check digit Interleaved 2 of 5. A check digit is optional for Interleaved 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data.
  • Page 69 Disable W0C6C00 Do Not Transmit Check Digit After Verification W0C6C04 Transmit Check Digit After Verification W0C6C0C...
  • Page 70 A check digit is optional for Matrix 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Matrix 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies...
  • Page 71 A check digit is optional for Industrial 25 and can be added as the last digit. It is a calculatedvalue used to verify the integrity of the data. Disable: The scanner transmits Industrial 25 barcodes as is.Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check digit...
  • Page 72 A check digit is optional for Standard 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Standard 25 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check digit algorithm.
  • Page 73 A check digit is optional for Code 39 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Code 39 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check digit algorithm.
  • Page 74 A check digit is optional for Codabar and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Codabar barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check digit algorithm.
  • Page 75 Check digits are optional for Code 93 and can be added as the last two digits, which are calculated valuesused to verify the integrity of the data. Disable: The scanner transmits Code 93 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check digit algorithm.
  • Page 76 Check digits are optional for Plessey and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Plesseybarcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check digit algorithm.
  • Page 77 Check digits are optional for Code 11 and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is.
  • Page 78 Transmit Check Digit W107910 *Do Not Transmit Check Digit W107900 Add-On Code An EAN-8 barcode can be augmented with a two- digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.
  • Page 79 Enable 2-Digit Add-On Code W106510 *Disable 2-Digit Add-On Code W106500 Enable 5-Digit Add-On Code W206520 *Disable 5-Digit Add-On Code W206500 EAN- 8 Add-On Code Not Required W086500 EAN-8 Add-On Code Required W086508...
  • Page 80 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus add-on barcode.
  • Page 81 Enable 2-Digit Add-On Code W106610 *Disable 2-Digit Add-On Code W106600 Enable 5- Digit Add-On Code W206620 *Disable 5-Digit Add-On Code W206600 EAN-13 Add-On Code Required W086608 *EAN-13 A On Code Not Required W086600...
  • Page 82 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus add-on barcode.
  • Page 83 A UPC-E barcode can be augmented with a two- digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code. Enable 2-Digit Add-On Code W106910 *Disable 2-Digit-Add-On Code...
  • Page 84 *Disable 5-Digit Add-On Code W206900 UPC-E Add-On Code Required W086908 *UPC-E Add-On Code Not Required W086900 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus add-on barcode.
  • Page 85 A UPC-A barcode can be augmented with a two- digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code. Enable 2-Digit Add-On Code W206B20 *Disable 2 Digit Add-On Code...
  • Page 86 Enable 5-Digit Add-On Code W206B40 *Disable5-Digit Add-On Code W206B00 UPC-A Add-On Code Required W106B10 *UPC-A Add-On Code Not Required W106B00 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-Abarcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/ Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented...

  • Page 87: Transmit Start/Stop Characters

    Transmit Start/Stop Characters Transmit Start/Stop Characters code39 W047404 *Do Not Transmit Start/Stop Characters code39 W047400 Transmit Start/Stop Characters W047504 DO Not Transmit Start/Stop Characters W047500 *ABCD/ABCD as the Start/ Stop CharacterS W187500 ABCD/TN*E as the Start/ Stop Characters W187508...
  • Page 88 abcd/abcd as the Start/ Stop Character W187510 abcd/tn*e as the Start/ Stop Character s W187518 Set ISBN Format *ISBN-13 W086800 ISBN-10 W086808...
  • Page 89 Transmit Preamble Character Preamble characters (Countr y Code and System Character) can be transmitted as part of a UPC- Abarcode. Select one of the followingoptions for transmitting UPC-Apreamble to the host device: transmit system character only, transmit system character and countr ycode ("0" for USA), or transmit no preamble.
  • Page 90 *Transmit UPC-A Check Digit W086B08 Do Not Transmit UPC-A Check Digit W086B00 Check Digit Verification Interleaved 2 of 5 A check digit is optional for Interleaved 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data.
  • Page 91 Disable W0C6C00 Do Not Transmit Check Digit After Verification W0C6C04 Transmit Check Digit After Verification W0C6C0C Matrix 2 of 5 A check digit is optional for Matrix 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data.
  • Page 92 Disable W0C7100 Do Not Transmit Check Digit After Verification W0C7104 Transmit Check Digit After Verification W0C710C Industrial 25 A check digit is optional for Industrial 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Industrial 25 barcodes as is.
  • Page 93 *Disable W0C7200 Do Not Transmit Check Digit After Verification W0C7204 Transmit Check Digit After Verification W0C720C Standard 25 A check digit is optional for Standard 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Standard 25 barcodes as is.
  • Page 94 *Disable W0C7300 Do Not Transmit Check Digit After Verification W0C7304 Transmit Check Digit After Verification W0C730C Code 39 A check digit is optional for Code 39 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Code 39 barcodes as is.
  • Page 95 *Disable W187400 Do Not Transmit Check Digit After Verification W187408 Transmit Check Digit After Verification W187418 Codabar A check digit is optional for Codabar and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Codabar barcodes as is.
  • Page 96 *Disable W607500 Do Not Transmit Check Digit After Verification W607520 Transmit Check Digit After Verification W607560 Code 93 Check digits are optional for Code 93 and can be added as the last two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Code 93 barcodes as is.
  • Page 97 Disable W0C7600 *Do Not Transmit Check Digit After Verification W0C7604 Transmit Check Digit After Verification W0C760C Plessey Check digits are optional for and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Plessey barcodes as is.
  • Page 98 Disable W0C7800 After Verification W0C7804 Transmit Check Digit After Verification W0C780C Code 11 Check digits are optional for Code 11 and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data.
  • Page 99 Disable W0C7900 *One Check Digit,MOD10 W0C7904 Two Check Digits, MOD10/MOD10 W0C7908 Two Check Digits, MOD10/MOD W0C790C Transmit Check Digit W0C7910 *Do Not Transmit Check Digit W0C7900...
  • Page 100 Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.
  • Page 101 Enable 5-Digit Add-On Code W206520 *Disable 5-Digit Add-On Code W206500 EAN-8 Add-On Code Required W086508 *EAN-8 Add-On Code Not Required W086500 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit/5-digit add-on codes.
  • Page 102 An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is add-on code. Enable 2-Digit Add-On Code W106610 *Disable 2-Digit Add-On Code...
  • Page 103 Enable 5-Digit Add-On Code W206620 *Disable 5-Digit Add-On Code W206600 EAN-13 Add-On Code Required W086608 *EAN-13 Add-On Code Not Required W086600 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit/5-digit add-on codes.
  • Page 104 Transmit System Character The first character of UPC-E barcode is the system character Do Not Transmit System Character W306A10 *Transmit System Character W306A20 A UPC-E barcode can be augmented with a two- digit or five-digit add-oncode to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code.
  • Page 105 Enable 2-Digit Add-On Code W106910 *Disable 2-Digit Add-On Code W106910 Enable 5-Digit Add-On Code W206920 *Disable 5-Add-On Code W206900...
  • Page 106 UPC-E Add-On Code Required W086908 *UPC-E Add-On Code Not Required W086900 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit/5-digit add-on codes. Disable 2-Digit Add-On Code/Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus add-on barcode.
  • Page 107 A UPC-A barcode can be augmented with a two- digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code. Enable 2-Digit Add-On Code W206B20 *Disable 2-Digit Add-On Code...
  • Page 108 Enable 5- Digit Add-On Code W406B40 *Disable 5-Digit Add-On Code W406B00 UPC-A Add-On Code Required W106B10 *UPC-A Add-On Code Not Required W106B00 Enable 2-Digit Add-On Code/ Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-Abarcodes with and without 2-digit/5-digit add-on codes.
  • Page 109 TransmitStart/Stop Characters Transmit Start/Stop Characters Code 39 W407404 *Do Not Transmit Start/Stop Characters Code 39 W407400 *Transmit Start/Stop Characters W407504 DoNot Transmit Start/Stop Characters W407500 *ABCD/ABCD as the Start/ Stop Characters W187500...
  • Page 110 ABCD/TN*E as the Start/ Stop Character W187508 abcd/abcd as the Start/ Stop Character W187510 abcd/tn*e as the Start/ Stop Character W187518 Set ISBN Format *ISBN-13 W086800 ISBN-10 W086808...
  • Page 111 Transmit Preamble Character Preamble characters (Countr y Code and System Character) can be transmitted as part of a UPC-A Select one of the following barcode options for transmitting UPC-Apreamble to the host device: transmit system character only, transmit system character and countr y code (“0” for USA), or transmit no preamble.

  • Page 112: Factory Defaults Table

    Appendix Factory Defaults Table Parameter Factory Remark Default System Settings Barcode Programming Enabled Programming Barcode Data Do not send Manual M ode Scan Mode 15 s 1 -255s; 0: infinite. Manual Mode Decode Session Timeout 1 -255s; 0: infinite. Decode Session Timeout 15 s Timeout between Decodes 1.0s...

  • Page 113: Factory Default

    Factory Default Remark Parameter Communication Interfaces Baud Rate 9600 Parity Check None TTL - 232 Interface Number of Data Bits Number of Stop Bits Flow Control None Other options:DataPipe,USB USB Interface USB HID -KBW COM Port Emulation, HID-POS Input Mode Standard Keyboard USB Country Keyboard Type U.S.
  • Page 114 Factory Default Remark Parameter EAN-13 EAN-13 Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Not required Add-On Code Disabled ISSN ISSN Disabled ISBN ISBN Disabled ISBN Format ISBN-13 UPC-E UPC-E Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-DigitAdd-On Code Disabled...
  • Page 115 Factory Default Remark Parameter Deutsche14 Deutsche14 Decode as I25 Transmit Check Digit Deutsche12 Deutsche12 Decode as I25 Check Digit Transmit Matrix 2 of 5 Matrix 2 of 5 Enabled Check Digit Verification Disabled Check Digit Do not transmit Minimum Length No less than 1 (including check digit) Maximum Length Industrial 25...
  • Page 116 Factory Default Remark Parameter Code93 Enabled Code 93 Check Digit Verification Enabled Check Digit Do not transmit Minimum Length No less than 1 (including check digit) Maximum Length Code11 Disabled Code 11 One check digit, MOD11 Check Digit Verification Check Digit Do not transmit Minimum Length No less than 1 (including check digit)

  • Page 117: Aim Id Table

    AIM ID Table AIM ID Symbology Remark Code 128 Standard Code 128 UCC/EAN 128 FNC1 is the character right after the start character (GS1-128) AIM 128 FNC1 is the 2nd character after the start character Standard EAN-8 EAN-8 ]E4….]E1… EAN-8+2-Digit Add-On Code ]E4….]E2…...
  • Page 118 AIM ID Symbology Remark Standard Codabar ABC Codabar Codabar Transmit check digit afte verification Do not transmit check digit after verification Not specified Code 93 One check digit, MOD11; transmit check digit Two check digits, MOD11/MOD11; transmit check digit Code 11 Do not transmit check digit after verification Two check digits, MOD11/MOD9;...
  • Page 119 Char (Single Quote) (Right / Closing Parenthesis) ) (Right/ Closing Parenthesis) (Asterisk) (Plus) (Comma) - (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi- colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol)

  • Page 120: Code Id Table

    Code ID Table Symbology Code ID Code 128 UCC/EAN-128 AIM 128 SETTING 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 Industrial 25 Standard 25 Code 39 Codabar Code 93 Code 11 Plessey MSI-Plessey RSS-14...
  • Page 121 Char (Single Quote) (Right / Closing Parenthesis) ) (Right/ Closing Parenthesis) (Asterisk) (Plus) (Comma) - (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi- colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol)

  • Page 122: Ascii Table

    ASCII Table Char NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) ACK (Acknowledgment) BEL (Bell) BS (Backspace) HT (Horizontal Tab) LF (Line Feed) VT (V ertical Tab) FF (Form Feed) CR (Carriage Return) SO (Shift Out)
  • Page 123 Char (Single Quote) (Right / Closing Parenthesis) ) (Right/ Closing Parenthesis) (Asterisk) (Plus) (Comma) - (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi- colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol)
  • Page 124 Char (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent)
  • Page 125 Char (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)
  • Page 126 Digit Barcodes D000000 D000001 D000002 D000003 D000004 D000005...
  • Page 127 D000006 D000007 D000008 D000009...
  • Page 128 Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel the Last Digit barcode and then the correct digit, or scan the Cancel All Digits barcode and then the digits you want.
  • Page 129 A ~ F D00000A D00000B D00000C D00000D D00000E D00000F...
  • Page 130 F1~F12 F000000 F000001 F000002 F000003 F000004 F000005...
  • Page 131 F000006 F000007 F000008 F000009 F00000A F00000B...
