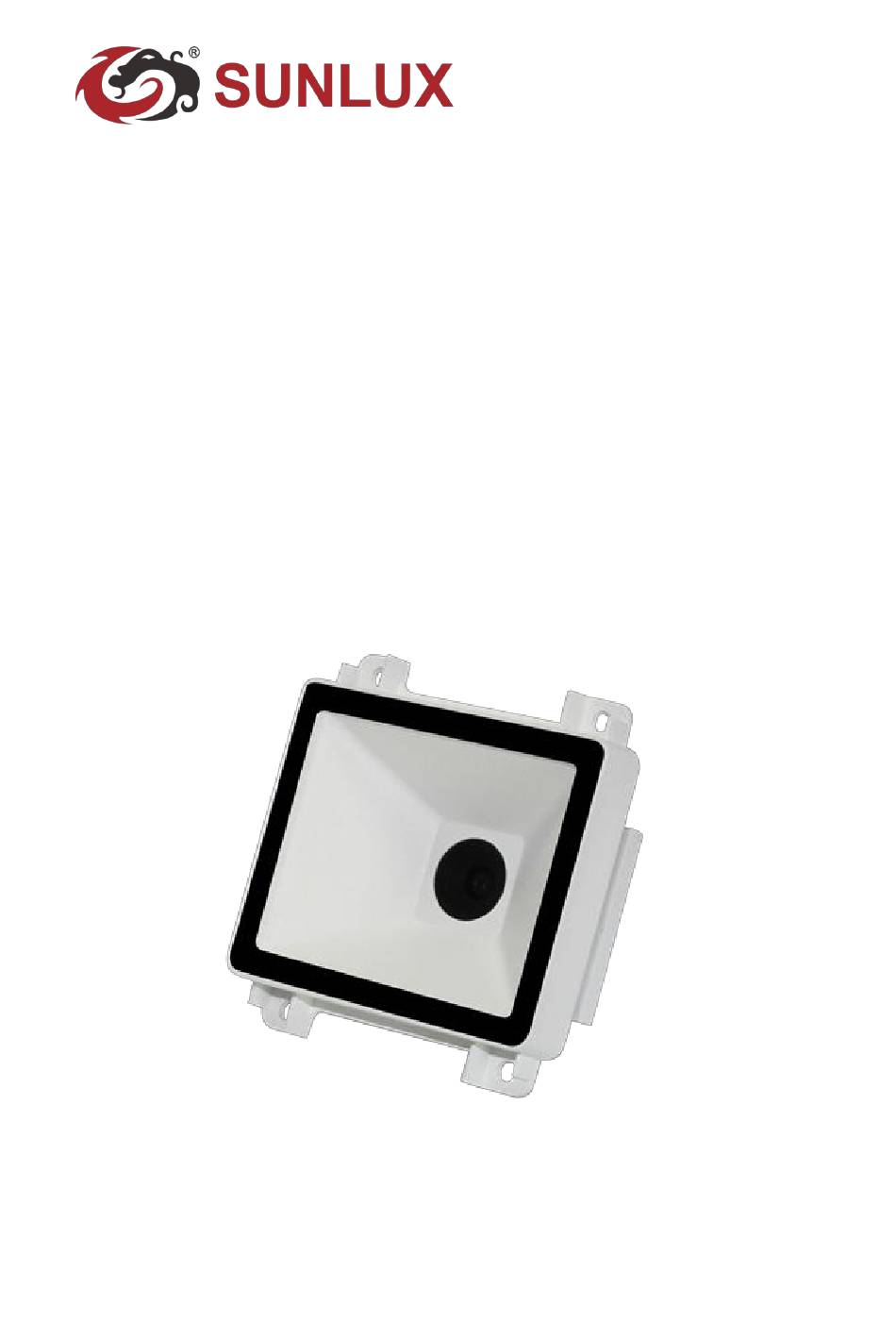

- Page 1 XL-3042M 2D Fixed Mount Barcode Scanner User Guide V 1.1...
- Page 2 This manual is copyrighted. No part of this publication may be reproduced, distributed or used in any form without written permission from SUNLUX. SUNLUX IOT TECHNOLOGY (GUANGDONG) INC reserves the right to make final interpretation of the statement above.
- Page 3 Revision History Version Description Date V 1.1 Initial release 2018.6.1...
-
Page 4: Table Of Contents
Contents 目录 1. Introduction......................5 2. Working Parameters.................... 5 Interface Support....................5 Operating Environment..................6 Storage Environment................... 6 Depth of Field......................6 3. Performance Characteristics................7 4. Electrical Characteristics................... 7 Dimensions......................7 Interface Definition....................8 TTL-232 PIN......................8 USB PIN.........................8 Connection Socket....................9 5. Installation......................9 Optical Requirements.................. -
Page 5: Introduction
This module has the core technology developed by SUNLUX, the products are completely designed and manufactured by SUNLUX. Including a series of comprehensive technologies such as: shape structure, optical imaging system, photoelectric conversion system, waveform digital processing, graphics processing algorithm, decoding algorithm, embedded system, etc. -
Page 6: Operating Environment
Operating Environment Operating voltage Operating current * 70mA Maximum current 100mA Operating temperature -20°C to 60°C Working humidity 5% to 90% Ambient illumination 0-100,000lx Storage Environment Storage temperature -40°C to 85°C Storage humidity 5% to 90% Depth of Field * for barcodes exceeding 13mil. Blind spots mainly depend on perspective coverage. -
Page 7: Performance Characteristics
3. Performance Characteristics Read mode CMOS Light source LED (6000K) 900lux @100mm Mark light Light source intensity 265 LUX (130 mm) Scan angle Omnidirectional decoding Scan speed 30 times/second Resolution 640*480 pixel Reading accuracy 4mil Print contrast ≥20% 1D SUPPORT: Industrial 25, standard, matrix 25, code 11, codabar, MSI/Plessey, code39(standard 39 &... -
Page 8: Interface Definition
Interface Definition This module supports USB connection and serial port connection (TTL-232). The interface sequence is defined as follow: 1. Adopt Standard micro USB interface. 2. Adopt SH1.05PIN TTL-232 serial port. * the other end is connected to the serial interface of the device. If the ninth pin of the serial interface does not provide power, a 5V (positive inside and negative outside) power supply should be added to the cable. -
Page 9: Connection Socket
5. Installation Optical Requirements Window Placement When install this module, a transparent medium window can be installed in front of the module in order to separate the inside and outside of the product. The size of the window can make the illuminating beam completely emitted and prevent light reflection from entering the module. -
Page 10: Material And Color Of Window
Material and Color of Window When selecting material and color of the window, there are the main points of the main consideration: high transmittance of light (red light), high definition and the uniform refractive index. Optical glass or PMMA is usually used. -
Page 11: Ambient Light
Optical vertical region diagram, vertical scanning angle: 34°. Ambient Light This module has its own light, which can be used normally in the absence of ambient light, and it can be well adapted to 50Hz~60Hz common ac fluorescence lighting. Using Safety The light used in this module is LED light, and the wavelength range of light generated is safe. -
Page 12: Front View (Unit: Mm)
Front View (unit: mm) Bottom View (unit: mm) -
Page 13: Stereogram
Stereogram...
