Summary of Contents for Multiaqua MHWW-36-H-1

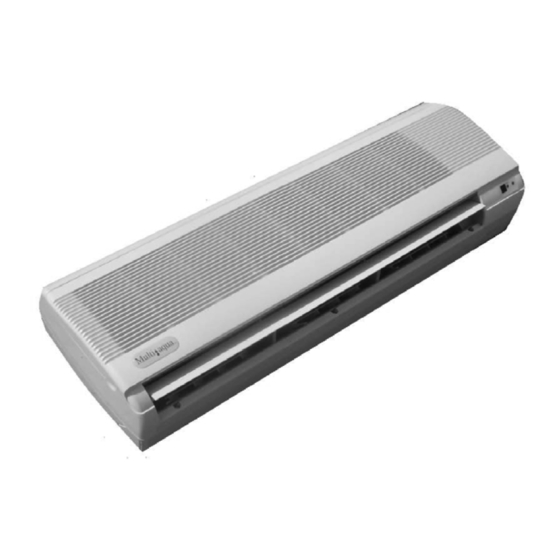

- Page 1 MHWW-36-H-1 Chilled/Hot Water Hi-Wall Fan Coil 2-Pipe Heat / Cool Fan Coil 36,000 BTUH...
- Page 2 MHWW NOMENCLATURE BREAKDOWN 2-Pipe Heat/Cool Hi-Wall Fan Coil MHWW- 36 - H Voltage 1= 208/230/-1-50/60 2-Pipe Heat/Cool Heat/Cool Nominal BTUH 36 = 36,000 Available Model Numbers MHWW-36-H-1...
- Page 3 MHWW-36-H-1 Part 1-General 1.01 System Description Multiaqua Chilled Water Fan Coils are manufactured with high impact molded polymers. 1.02 Quality Assurance A. Certified in accordance with U.L. Standard 95, latest version (U.S.A.) B. Manufactured in a facility registered to ISO 9002, Manufacturing Quality Standard.
- Page 4 B. Controls shall include a circuit board, room sensor, indoor coil thermistor, transformer and wireless remote. C. Controls are capable of incorporating an optional Multiaqua hard-wired thermostat. D. Controls shall be capable of controlling the 2-pipe fan coil on a 4-pipe hydronic system. Contact factory for piping and wiring layouts.
- Page 5 MHWW-36-H-1 Product Specifications Physical Data Cooling Copper Water Water Height Depth Weight Drain Model Number Length (in) Rows Diameter Inlet Outlet (in) (in) (lbs) (in) (in) (in) (in) MHWW-36-H-1 14.25 56.50 8.37 50.50 3-18 Electrical Data Fuse or HACR Circuit Breaker...
- Page 6 MHWW-36-H-1 Chilled Water Performance Data MHWW-36 COOLING CAPACITIES ENTERING AIR TEMPERATURE (°F) (°F) 80° D.B. / 67° W.B. 75° D.B. / 63° W.B. 33.8 25.9 24.6 21.6 11.8 11.8 34.6 26.5 24.8 21.8 13.7 13.7 35.4 27.0 25.1 22.0 15.8 15.8...
- Page 7 MHWW-36-H-1 Hot Water Performance Data MHWW-36 HEATING CAPACITIES ENTERING ENTERING WATER TEMPERATURE (°F) AIR (°F) 100° 110° 120° 130° 140° 150° 160° 170° 180° 190° 200° 11.8 39.7 47.7 55.6 63.6 71.5 79.5 87.4 95.4 103.3 111.3 119.2 13.7 40.1 48.1...
- Page 8 MHWW-36-H-1 Capacity and Glycol Adjustments CAPACITY CORRECTION FACTORS MODEL # MHWW-36-H-1 Propylene Glycol & GPM Adjustment Factors Propylene Capacity GPM Adjustment = Ambient Glycol % Reduction 100% Capacity Temp 26° F x 0.99 x 1.01 20° F x 0.98 x 1.03 8°...
- Page 9 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE Wireless Control: Standard Control Package Optional Wired Control: EG-003...
- Page 10 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE Wireless Control: Name and function of remote controller Note: • Be sure there are no obstructions between receiver and remote controller. • The remote control signal can be received at the distance of up to about 21 feet. •...
- Page 11 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE FUNCTION 1. TRANSMISSION SOURCE - Infra red transmission source 2. POWER - Press to turn the fan coil on and off or vice versa. (Red LED left will light to indicate the control is on) 3.
- Page 12 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE FUNCTION 5. TEMPERATURE SETTING - Press “▲” to increase set temperature. - Press “▼” to decrease set temperature. - Press “▲” and “▼” Simultaneously to toggle between °C and °F display mode. - Temperature range: 16°C to 30°C in °C display mode and 60°F to 86°F in °F display mode.
- Page 13 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE 7. CANCEL - To cancel any setting on the delay timer. 8. LOUVER - Two different functions are available: 1. To set the louver stop position. There are 4 angles available. The sequence is as follows.
-
Page 14: Transmission Indicator
INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE 11. AUTO - This function will automatically control the system switching between heating and cooling operation. If the preset auto mode is cooling, a switch to heating operation will begin only if the actual room temperature is 7°... - Page 15 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE Optional Wired Control: EG-003 LED MODE INDICATOR FOR REMOTE CONTROLLER: INDICATOR LIGHTS SETTING FUNCTION RED-GREEN COOL COOLING OPERATION ONLY RED-RED HEAT HEATING OPERATION ONLY RED-BLINKING AUTO AUTO SELECTION BETWEEN HEAT &...
- Page 16 INSTALLATION & OPERATING MANUAL MHWW Hi-Wall Fan Coils 36,000 BTUH MHWW CONTROLS OPERATION GUIDE FUNCTION 4. TEMPERATURE SETTING - Press “▲” to increase set temperature. - Press “▼” to decrease set temperature. - Press “▲” and “▼” Simultaneously to toggle between °C and °F display mode. - Temperature range: 16°...
- Page 17 MHWW-36-H-1 Wiring Diagram 208/230/-1-50/60...
- Page 18 MHWW-36-H-1 CERTIFIED DRAWING...
