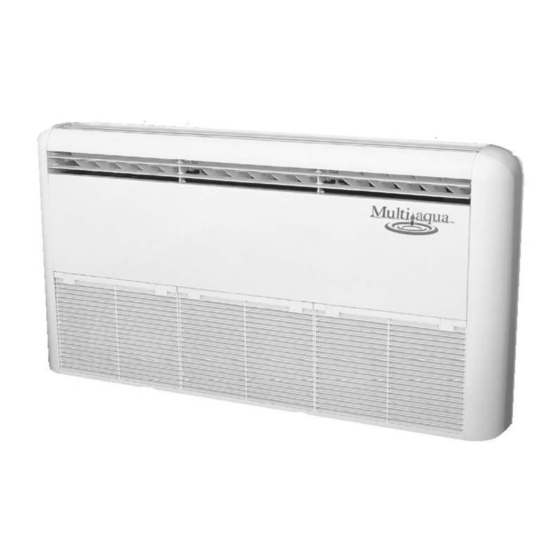

Multiaqua CFFWA-XX-1-U Installation And Operation Manual

Download this manual

CFFWA-XX-1-U

Rev. 1.1

Need help?

Do you have a question about the CFFWA-XX-1-U and is the answer not in the manual?

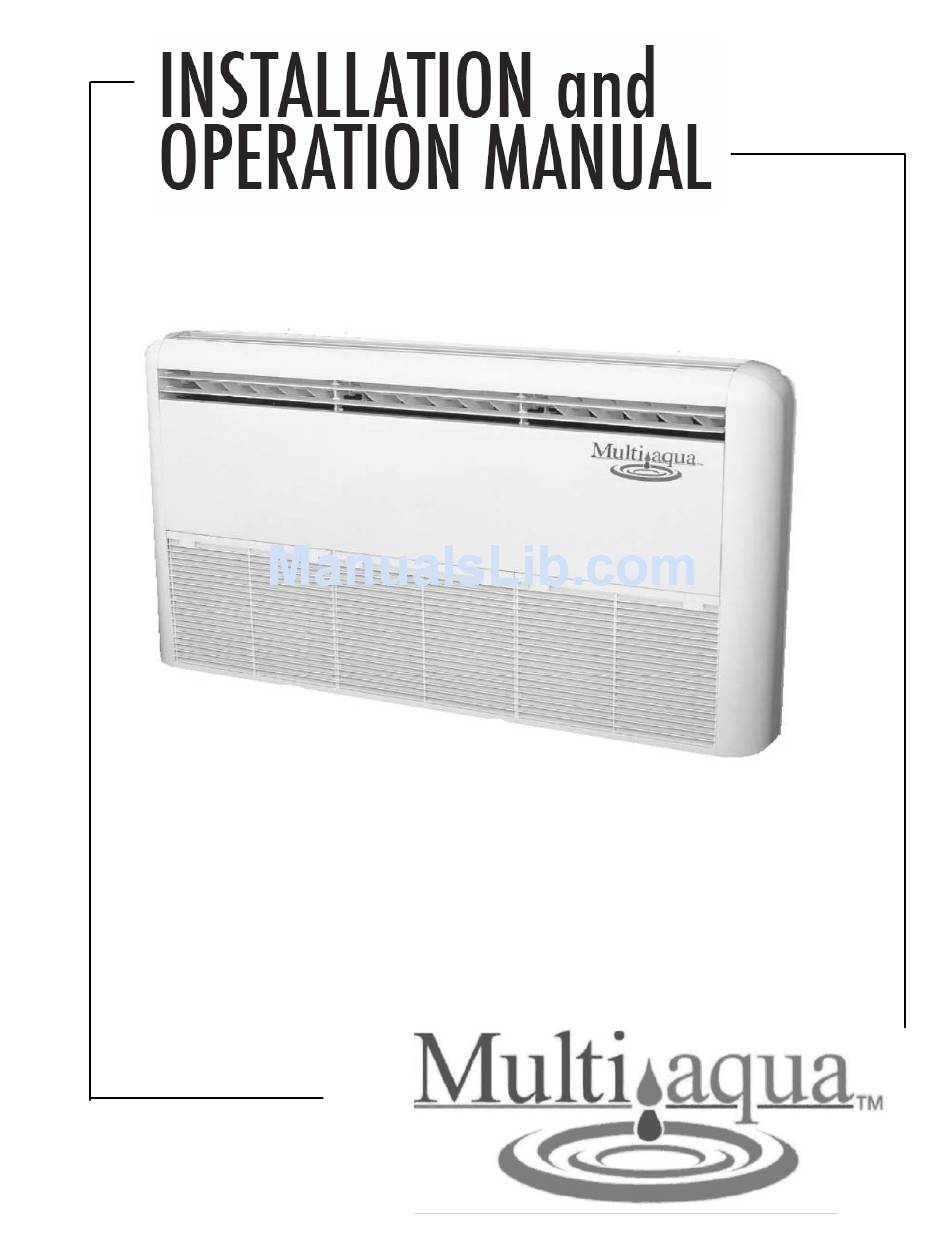

Page 1 CFFWA-XX-1-U Rev. 1.1...
Page 2 GENERAL can be mounted on a wall or ceiling. See Read the entire contents of this manual figure 2 for fan coil and mounting bracket before beginning installation. Multiaqua dimensions. assumes no responsibility for equipment installed contradictory to any code requirement or installation instructions.
Page 3 Dimensions (in) Model Number CFFWA-04-1-U 36.49 13.00 CFFWA-06-1-U 36.49 13.00 CFFWA-08-1-U 36.49 13.00 CFFWA-12-1-U 48.30 13.00 CFFWA-16-1-U 71.97 13.00 CFFWA-20-1-U 71.97 13.00 BACK B type Figure 2 These specifications are subject to change without notice. Check www.multiaqua.com for the latest information.
Page 4 Select a location that has enough service space when the unit is mounted Figure 5 under the ceiling or on the wall. These specifications are subject to change without notice. Check www.multiaqua.com for the latest information.
Page 5 INSTALLATION & OPERATING MANUAL CFFWA Universal Mount Fan Coils 12,000 – 60,000 BTUH Piping Locations MULTIAQUA,INC. These specifications are subject to change without notice. Check www.multiaqua.com for the latest information.
Page 6 Ensure the drain line has a ¼” of fall per foot. Insulate the condensate drain line to prevent condensate sweating. Figure 8 Figure 8 These specifications are subject to change without notice. Check www.multiaqua.com for the latest information.
